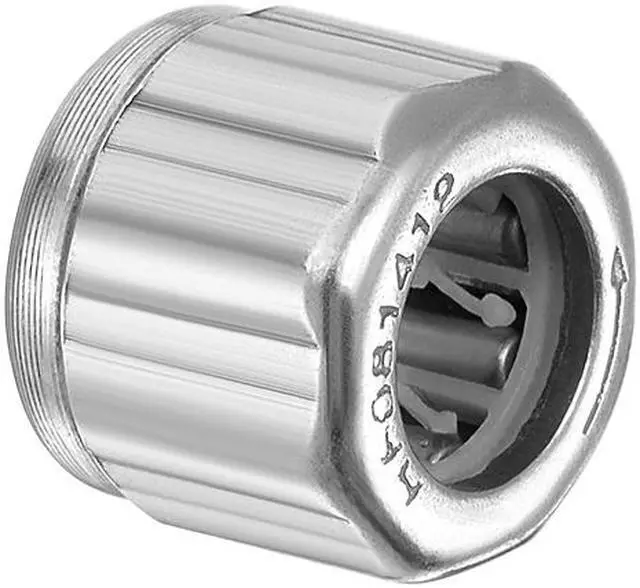

HF081412 Needle Roller Bearings, One Way Bearing, 8mm Bore 14mm OD 12mm Width
- Model: HF081412 (I.D. (Fw)= 8mm, O.D. (D)= 14mm, Width (C)= 12mm).ST14 steel drawn cup, GCr15 needle rollers one way clutch.Good heat tolerance, high load carrying capacity and stiffness.
+
+
Overview
Specs
Reviews
Description:
KEY_TAB
- Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.
- These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.
- Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.
- For various applications such as automotive and truck transmissions, agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.
- NOTE: Install with press machine or special tools instead of hammers because beating may lead to local deformation or brittle fracture.
KEY_TAB
Specification:
Model: HF081412

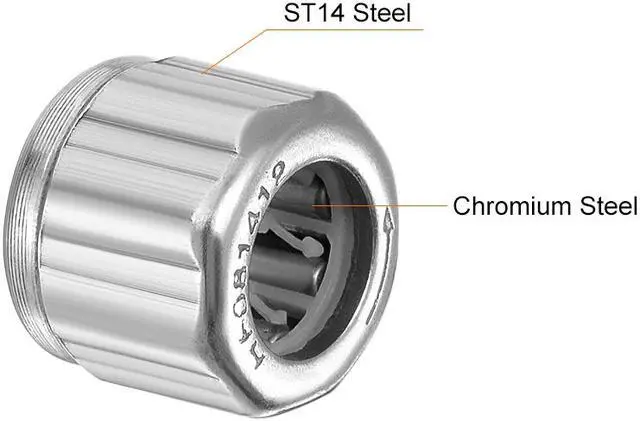

Drawn Cup Material: ST14 Steel
Needle Roller Material: Chromium Steel (GCr15)

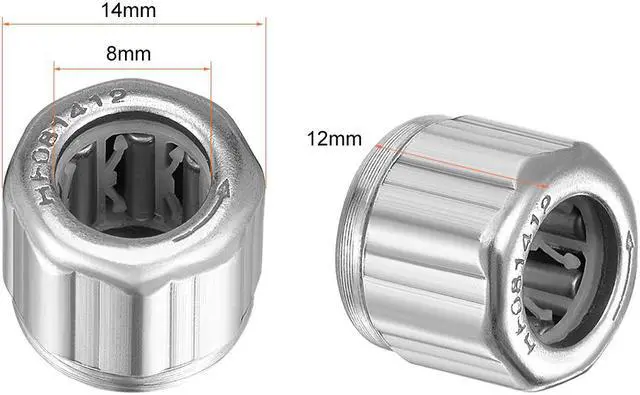

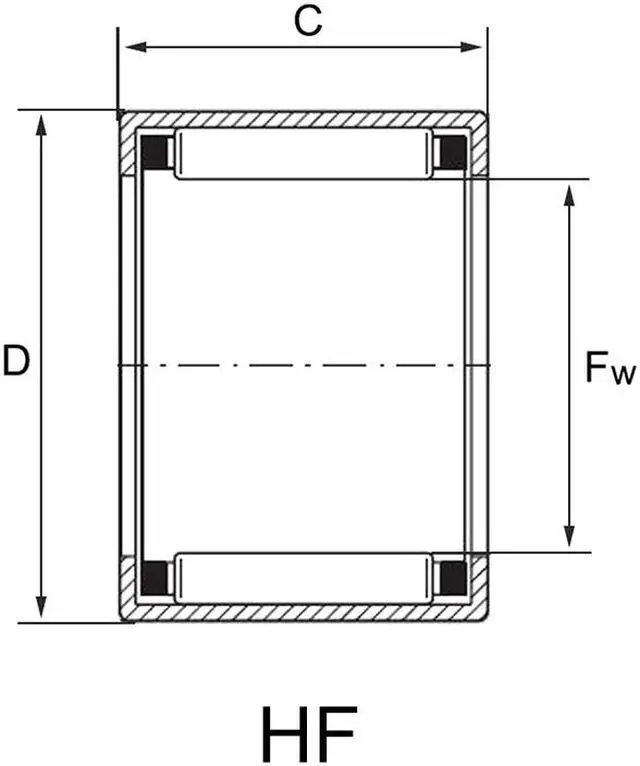

Bore Diameter (Fw): 8mm
Outside Diameter (D): 14mm
Width: 12mm
Torque: 5N*m
Rotating Shaft Limiting Speed: 16000rpm
Rotating Outer Ring Limiting Speed: 12000rpm
Number of Pack: 1 Pcs
