Deep Groove Ball Bearing 6905RS Double Sealed, 25mm x 42mm x 9mm Chrome Steel

1. Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions
2. Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.
3. With small friction and high-limit speed, Uxcell Deep Groove Ball Bearings are cost-effective and require little maintenance.

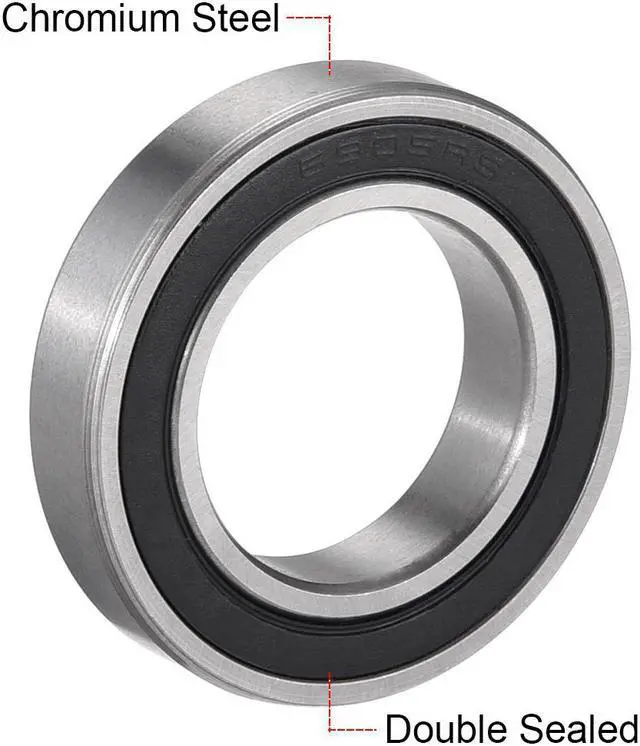

4. Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
5. Single-row, pre-lubricated, normal accuracy.


Selection Guide:
Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Non-contact seals (Designation Suffix RZ/2RZ) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Provide better sealing effectiveness than shields. Can be operated at the same speeds as shields.
Contact seals (Designation Suffix RS/2RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed than Shield Bearings.


Specification:
Model: 6905RS
Sealed Type: Double Sealed
Cage Material: Stamping Steel

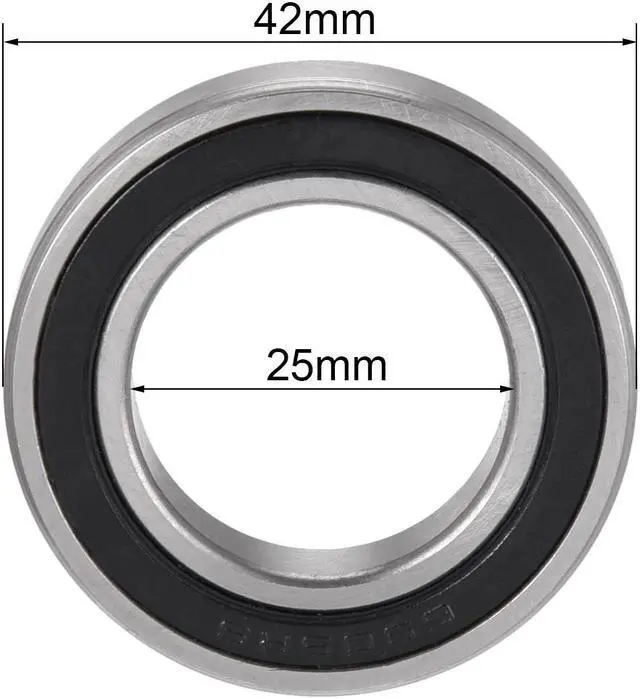

Inner Diameter (d): 25 mm
Outer Diameter (D): 42 mm

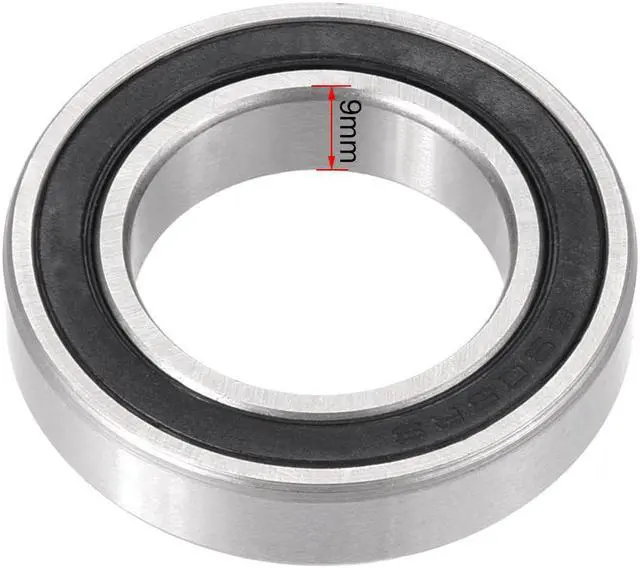

Thickness (B): 9 mm
Dynamic Load Rating (Cr): 7kN
Static Load Rating (Cor): 4.5 kN
Accuracy Class: P0 (ABEC-1)
Noise Level: Z2
Number of Pack: 1 Pcs
Weight: 44g
