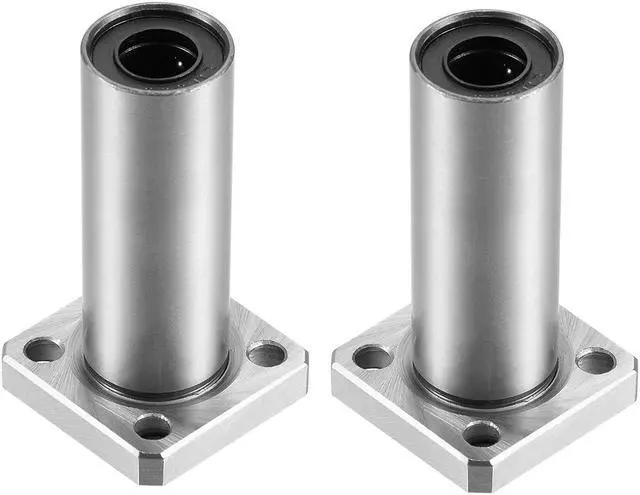

LMK10UU Extra Long Square Flange Linear Ball Bearings,10mm Bore Dia,19mm OD,2pcs
- Model: LMK10UU (Nominal Shaft Diamter (dr): 10mm, Outer Diameter (D): 19mm, Total Length (L): 55mm)
- Square Flange Linear Motion Ball Bearing Bushing Sealed on Both Side
- Chromium Steel shell and bearing ball, good abrasion resistance, high precision and good strength
- Smooth moving, low friction, high rigidity and long working life
- Suitalbe for kinds of electronic equipment/guide bar, and pillar
+
+
Overview
Specs
Reviews
1. Uxcell provides LMFUU series Square Flange Linear Ball Bearing with seals on both side to prevent ingress of dirt, water and foreign matter.
2. Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.
3. Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.
4. It is great for 3D printer, CNC, and other applications.
Specification:
Bearing No.: LMK25UU
Bearing Ball Meterial: Chromium Steel
Outer Shell Meterial: Chromium Steel
Cage Meterial: Nylon

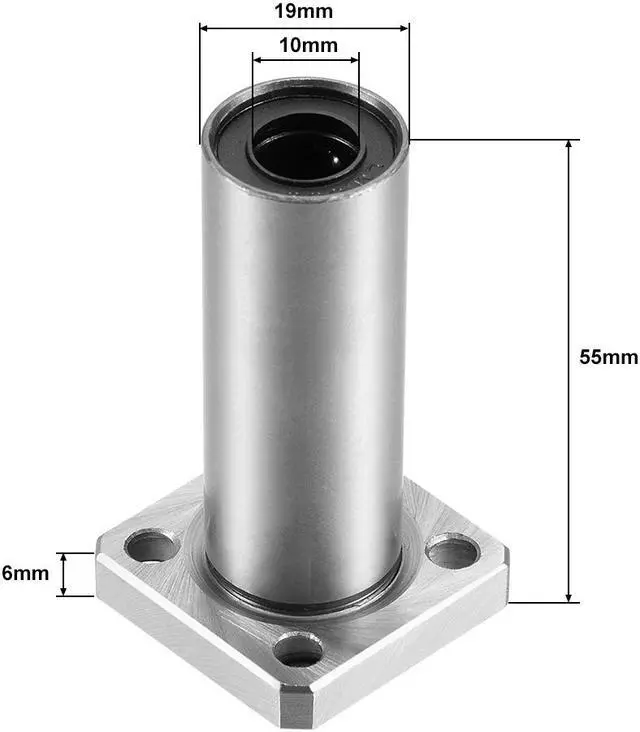

Nominal Shaft Diamter (dr): 10mm
Outer Diameter (D): 19mm
Total Length (L): 55mm
Mounting Hole Dia.: 4.6 x 7.5 mm / 0.18 x 0.3 inch (d1*d2);

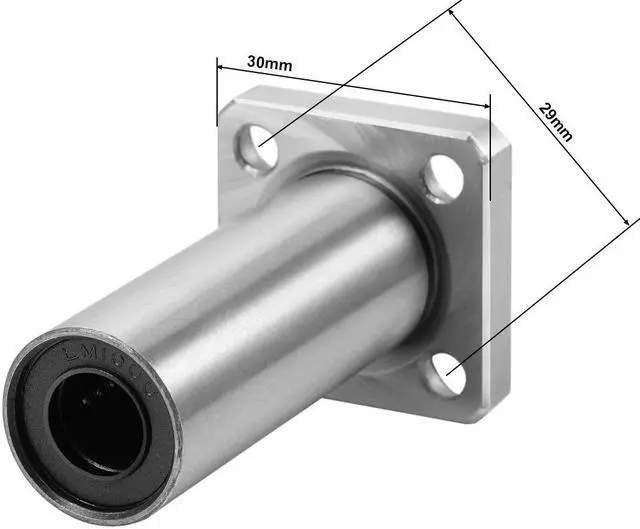

Pitch Circle Dia. (PCD): 29mm / 1.14 inch;
Flange Size: 30 x 30 x 6mm / 1.18 x 1.18 x 0.24 inch (L*W*H)
Ball Circuit: 4
Static Load Capacity (Cor): 1.1 kN
Dynamic Load Capacity (Cr): 0.588 kN
Number of Pack: 2 Pcs
2. Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.
3. Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.
4. It is great for 3D printer, CNC, and other applications.
Specification:
Bearing No.: LMK25UU
Bearing Ball Meterial: Chromium Steel
Outer Shell Meterial: Chromium Steel
Cage Meterial: Nylon
Nominal Shaft Diamter (dr): 10mm
Outer Diameter (D): 19mm
Total Length (L): 55mm
Mounting Hole Dia.: 4.6 x 7.5 mm / 0.18 x 0.3 inch (d1*d2);
Pitch Circle Dia. (PCD): 29mm / 1.14 inch;
Flange Size: 30 x 30 x 6mm / 1.18 x 1.18 x 0.24 inch (L*W*H)
Ball Circuit: 4
Static Load Capacity (Cor): 1.1 kN
Dynamic Load Capacity (Cr): 0.588 kN
Number of Pack: 2 Pcs
