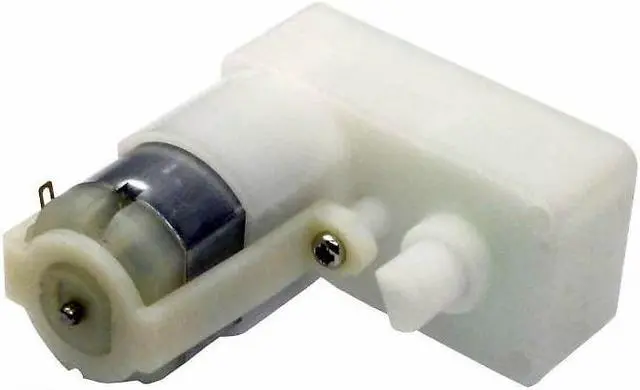

GM2-2 - MOTOR GEAR 6V 48RPM GEAR RATIO 224:1 OFFSET SHAFT (2 pcs/pkg)
- Description: Offset / Inline Gear Ratio: 224.00:1
- At 3 volts Unloaded RPM (3V): 24
- Unloaded Current (3V): 40 mA
- Stall Current (3V): 400 mA
- Stall Torque (3V): 48.61 in*oz
- At 6 volts Unloaded RPM (6V): 46
- Unloaded Current (6V): 50 mA
- Stall Current (6V): 710 mA
- Stall Torque (6V): 56.94 in*oz
- Length (mm): 55.00 mm
- Width (mm): 48.00 mm
- Height (mm): 23.00 mm
- Weight: 0.04 g...
+
+
Overview
Specs
Reviews

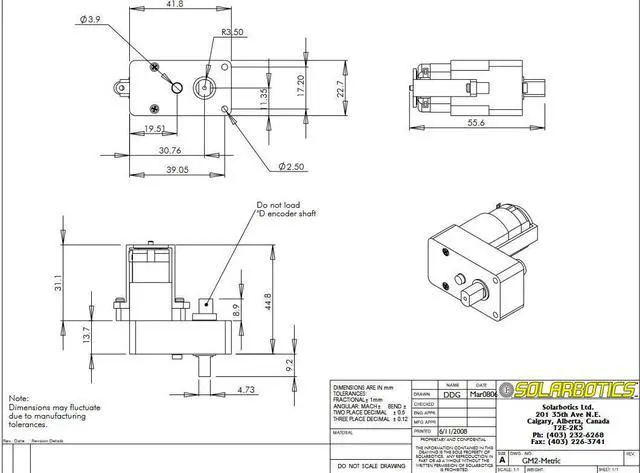

Gear Motor 2 224:1 Offset Shaft This motor offers 48.6 in*oz of torque at 3V rotating 360 degrees every 1.5 seconds (24 rpm just a hair slower than a servo) drawing 400mA at stall (free running at 40mA). With a 7mm doubleflat output shaft (avoid using the D output it's not meant to take rotational load) and a builtin clutch (limiting at 60 in*oz but easily locked) and builtin mounting screw holes you can see why we like these motors! These units have an overall size of 55mm x 48mm x 22.7mm thick 2.17 x 1.89 x 0.894 thick Weighing 31.4 grams or 1.11 ounces.
- Description: Offset / Inline Gear Ratio: 224.00:1
- At 3 volts Unloaded RPM (3V): 24
- Unloaded Current (3V): 40 mA
- Stall Current (3V): 400 mA
- Stall Torque (3V): 48.61 in*oz
- At 6 volts Unloaded RPM (6V): 46
- Unloaded Current (6V): 50 mA
- Stall Current (6V): 710 mA
- Stall Torque (6V): 56.94 in*oz
- Length (mm): 55.00 mm
- Width (mm): 48.00 mm
- Height (mm): 23.00 mm
- Weight: 0.04 g
