$11.94
Meet Your Seller

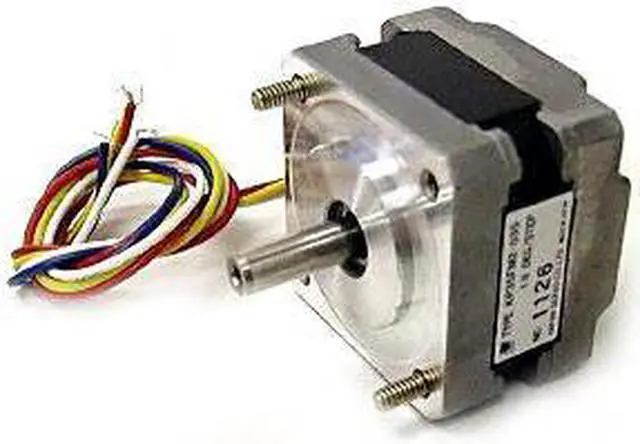

KP35FM2-035 - MOTOR STEPPER 1.8DEG/STEP W/WIRE
- Manufacturer: Japan Servo Co. Ltd.
- Step Angle: 1.8 degrees
- Winding Voltage: 1224 Volts
- Resistance per Phase: 37 Ohms
- Coil Winding: Bipolar
- Number of Steps: 200
- Amperage per Phase: 0.6 Amps
- Holding Torque: 700 grams / cm
- Number of Leads: 4 Phase One Blue/Red Phase Two Yellow/White
- Body Size Square: 35 mm
- Body Depth: 24 mm
- Shaft Length: 14 mm
- Shaft Diameter: 5 mm...
+
+
Overview
Specs
Reviews
- Manufacturer: Japan Servo Co. Ltd.
- Step Angle: 1.8 degrees
- Winding Voltage: 1224 Volts
- Resistance per Phase: 37 Ohms
- Coil Winding: Bipolar
- Number of Steps: 200
- Amperage per Phase: 0.6 Amps
- Holding Torque: 700 grams / cm
- Number of Leads: 4 Phase One Blue/Red Phase Two Yellow/White
- Body Size Square: 35 mm
- Body Depth: 24 mm
- Shaft Length: 14 mm
- Shaft Diameter: 5 mm
