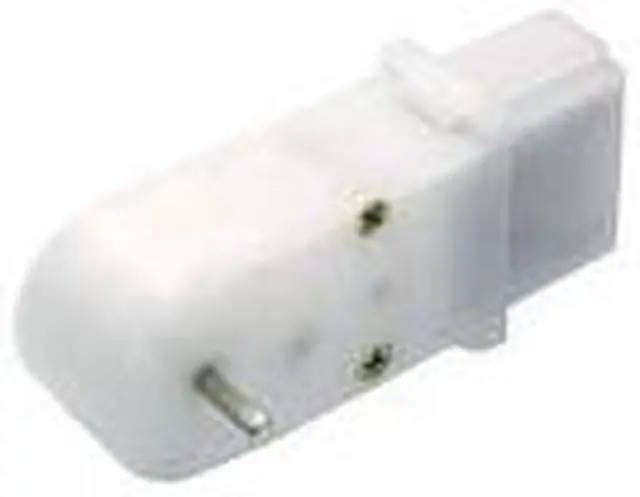

GM7-2 - MOTOR GEAR 3-6V 160RPM GEAR RATIO 120:1 MINI 90DEG (2 pcs/pkg)

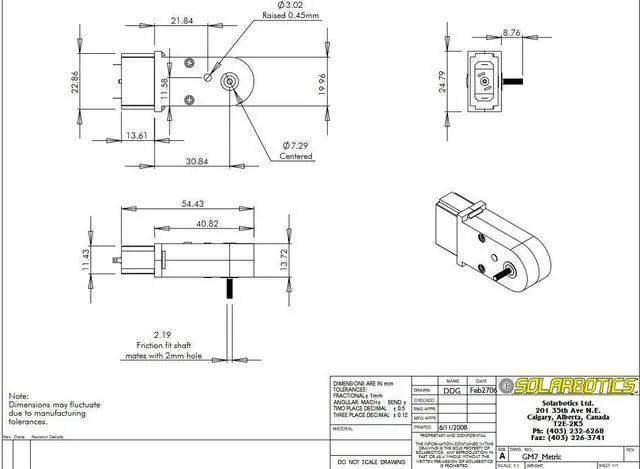

Gear Motor 7 120:1 Baby GM3 The GM7 which is a baby version of our popular GM3 gear motor has tighter tolerances and better performance than a regular toystyle motor these smaller quicker 120:1 gear reduction ratio motors are sure to stir ideas! This gear motor starts rotation at 0.58 volts turning 7 RPM drawing only 46.5mA. At 6 volts this unit really humms spinning at 146 RPM and drawing 92mA noload (524mA stall producing 23.78in*oz torque). These units work very well on solarengine circuits. Like it's bigbrother this gear motor also has a builtin safety clutch which engages at approximately 25in*oz (at 6.5V / 650mA). This motor also has a unique 2mm (0.08) crest diameter chromefinish splined shaft can be pushed through the output gear to either side of the motor and is also solderable! (If you do want to solder to it yank the shaft right out solder and then press it back in). These motors have an overall size of 58.0mm x 24.8mm x 22.3mm (2.28 x 0.98 x 0.88) and weigh in at only 19 grams (0.67oz).

• Description: Mini 90 Degree Motor
• Gear Ratio: 120.00:1
• At 3 Volts Unloaded RPM (3V): 75
• Unloaded Current (3V): 80 mA
• Stall Current (3V): 310 mA
• Stall Torque (3V): 13.62 in*oz
• At 6 Volts Unloaded RPM (6V): 146
• Unloaded Current (6V): 92 mA
• Stall Current (6V): 524 mA
• Stall Torque (6V): 23.78 in*oz
• Length (mm): 53.00 mm
• Width (mm): 13.00 mm
• Height (mm): 19.00 mm
• Weight: 20.00 g
