GM3 - MOTOR GEAR 6V 48RPM GEAR RATIO 224:1 90DEG SHAFT (2 pcs/pkg)

Gear Motor 3 224:1 90 Degree Shaft This 224:1 gear motor is very comparable to a hobby servo for power at a fraction of the cost! This model differs from the GM2 in that it has a 90 degree output shaft. This motor offers 48.61 in*oz of torque at 3V rotating 360 degrees every 1.5 seconds (24 rpm just a hair slower than a servo) drawing 400mA at stall (free running at 40mA). With a 7mm doubleflat output shaft (avoid using the D output it's not meant to take rotational load) and a builtin clutch (limiting at 60 in*oz but easily locked) and builtin mounting screw holes this is why we like these motors! Overall dimensions are 70.1mm long x 22.3mm x 37.7mm (2.76) x (0.878) x long (1.48) including output shafts while only weighing 30.5grams or 1.08ounces.

• Description: 90 Degree Motor
• Gear Ratio: 224.00:1
• At 3 Volts Unloaded RPM (3V): 24
• Unloaded Current (3V): 40 mA
• Stall Current (3V): 400 mA
• Stall Torque (3V): 48.61 in*oz
• At 6 Volts Unloaded RPM (6V): 46
• Unloaded Current (6V): 50 mA
• Stall Current (6V): 733 mA
• Stall Torque (6V): 56.94 in*oz

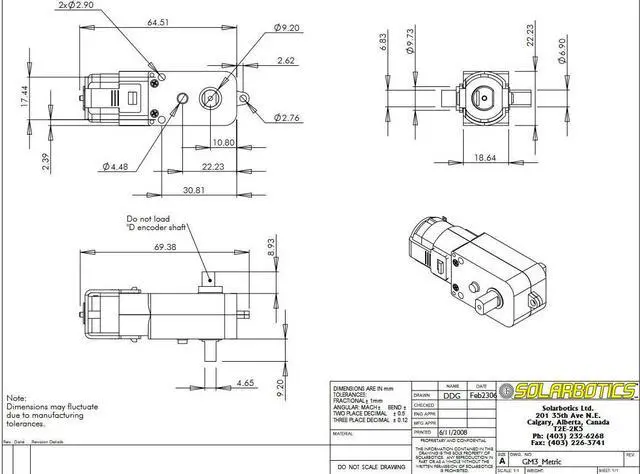

• Length (mm): 70.00 mm
• Width (mm): 22.50 mm
• Height (mm): 37.00 mm
• Weight: 40.00 g
