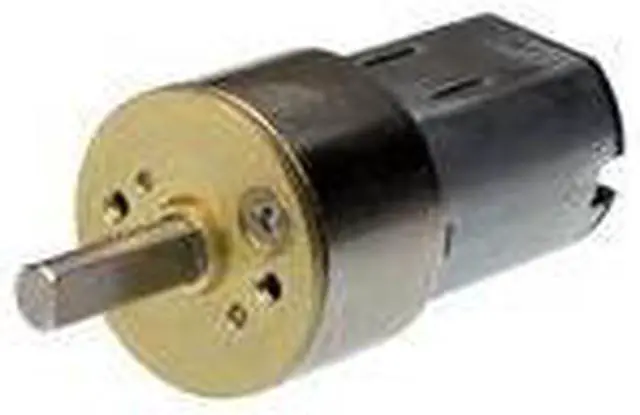

GM22 - MOTOR GEAR 3-6V 39-79RPM 298:1 MINI METAL GEAR MOTOR
- Gear Ratio: 298:1 At 3 Volts
- Unloaded RPM (3V): 39
- Unloaded Current (3V): 44 mA
- Stall Current (3V): 608 mA
- Stall Torque (3V): 35.20 in*ozÂ
- Unloaded RPM (6V): 79
- Unloaded Current (6V): 64 mA
- Stall Current (6V): 948 mA
- Stall Torque (6V): 47.80 in*oz
- Length: 32.20 mm
- Width: 14.00 mm
- Height: 14.00 mm
- Weight: 11.10 g...
+
+
Overview
Specs
Reviews
The GM22 298:1 Mini Sealed Metal Gear Motor is the most compact torque monster we have! The GM22 mini metal sealed gear motor is the same formfactor but has far more torque almost twice the GM14a at 3V! The sealed gearbox makes the motor more resistant to sideloads. Offering 35.2 in*oz (2534 gms*cm) of torque at 3V it's a real finger twister ideal for hightorque solarpowered (or 2AA) applications. With a sealed gearbox it is ideal for building Turbot tumbling robots which usually stir up all sorts of dust and grime. Note: The motor's mounting holes are threaded for two M2.0 metric screws. Features
- Gear Ratio: 298:1 At 3 Volts
- Unloaded RPM (3V): 39
- Unloaded Current (3V): 44 mA
- Stall Current (3V): 608 mA
- Stall Torque (3V): 35.20 in*oz
- Unloaded RPM (6V): 79
- Unloaded Current (6V): 64 mA
- Stall Current (6V): 948 mA
- Stall Torque (6V): 47.80 in*oz
- Length: 32.20 mm
- Width: 14.00 mm
- Height: 14.00 mm
- Weight: 11.10 g
