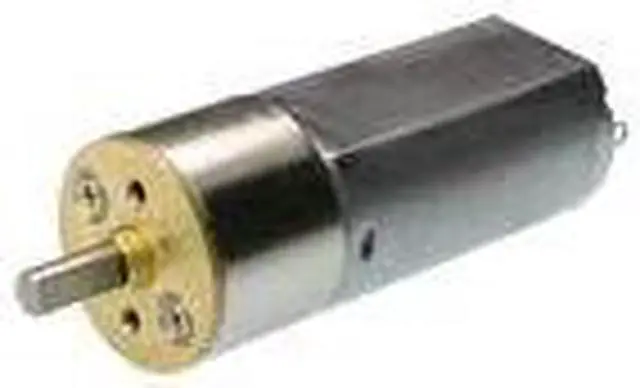

GM21 - MOTOR GEAR 3-6V 11-23RPM 360:1 MINI METAL GEAR MOTOR

The 360:1 Mini Metal Gear Motor looks like our other mini metal gear motors except the motor is longer and the gearing is an enclosed in a cylindrical casing. This compact brute of a gear motor offers a measured stall torque of 103.2 In*oz (7434gm*cm) at 6V that's considerable! Of course with a motor this small we trade the increase in torque for a decrease in speed it's among the slowest spinning motors we carry turning at a only 23RPM at 6V. The sealed gearbox makes the motor more resistant to sideloads. Note: The motor's mounting holes are threaded for two M2.0 metric screws Features

• 360:1 Mini Metal Gear Motor
• Gear Ratio: 360.00:1 At 3 Volts
• Unloaded RPM (3V): 11
• Unloaded Current (3V): 38 mA
• Stall Current (3V): 360 mA
• Stall Torque (3V): 49.60 in*oz At 6 Volts
• Unloaded RPM (6V): 23
• Unloaded Current (6V): 42 mA
• Stall Current (6V): 692 mA
• Stall Torque (6V): 103.20 in*oz
• Length: 47.60 mm
• Width: 15.50 mm
• Height: 15.50 mm
• Weight: 26.60 g
