AC 110V Electric Synchronous Motor Metal Gear Turntable CW/CCW 30RPM 50-60HZ 14W 7mm Dia Eccentric Shaft
- [Features]: the synchron motor has small power consumption and large torque which is convenient to use; Low noise and easy to install.
- [Advantage]: The permanent magnet synchronous motor and the slowdown in one body can control the pros and cons of the synchronous motor.
- [Size]: Overall Length 90mm / 3.54 inch; Overall Diameter: 60mm / 2.36 inch; Shaft Length: 30mm / 1.18 inch; Shaft Diameter: 7mm / 0.28 inch
- [Applications]: Widely Used for electric fan , electric heaters, electrical curtain, gluing machine, monitor, stage lights, advertisement electrical movement and other kinds of electrical appliances.
- [Package Content]: 1 x Electric Synchronous Motor
+
+
Overview
Specs
Reviews
Description:
It is mainly applied for electric fan , electric heaters, electrical curtain, gluing machine, monitor, stage lights, advertisement electrical movement and other kinds of electrical appliances.KEY_TAB
Feature:KEY_TAB KEY_TAB
1. Designed with 7mm eccentric shaft .
2. This product is made up of permanent magnet synchronous motor and reduction gears.
3. Low consumption, large torque, low noise, small size and easy to use.
4. A synchronous motor of CW(clockwise) / CCW(counterclockwise).
Specification
Rated Voltage: AC 110V
Power: 14W
Manner of Working: CCW/CW
Rated Frequency: 50-60Hz
Rated Speed: 30R/Min

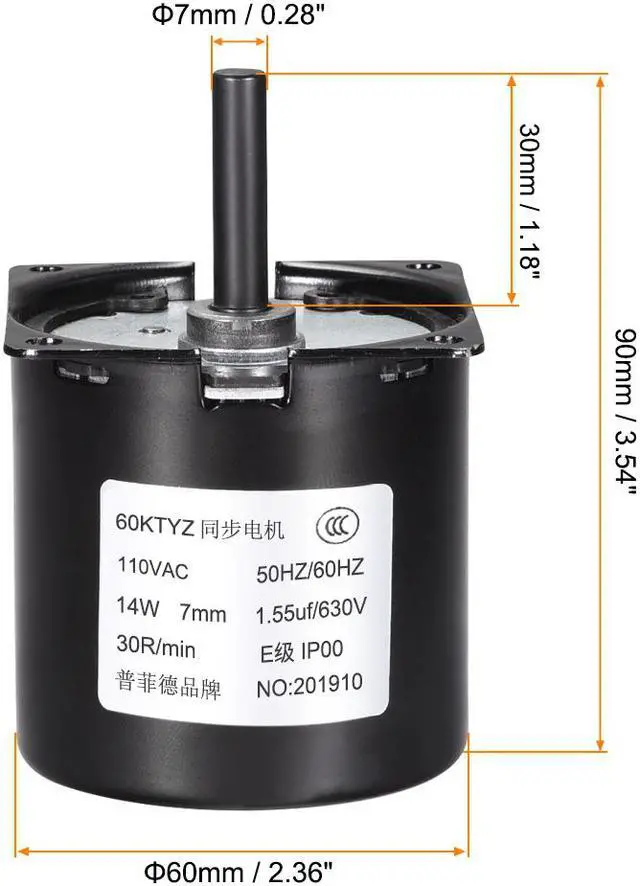

Overall Length 90mm / 3.54inch
Overall Diameter: 60mm / 2.36 inch
Shaft Length: 30mm / 1.18 inch
Shaft Diameter: 7mm / 0.28 inch

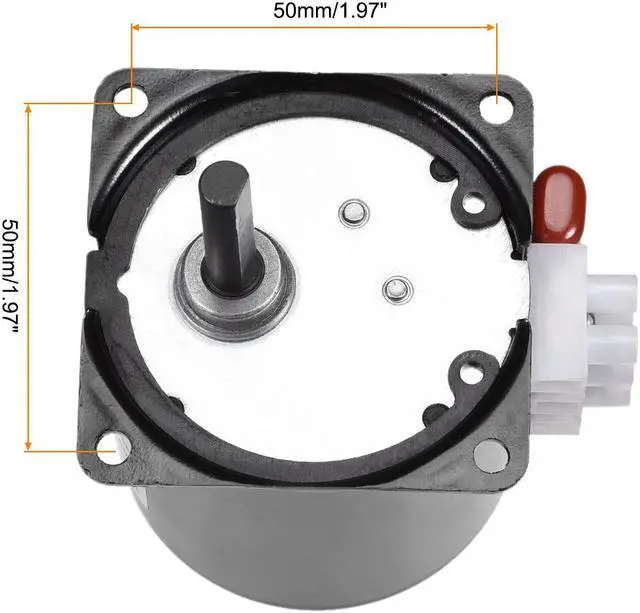

Mounting Hole Diameter: 4.5mm / 0.18 inch
Mounting Hole Center Distance: 50mm / 1.97 inchKEY_TAB Package Content:KEY_TAB
1 x Electric Synchronous Motor KEY_TAB
