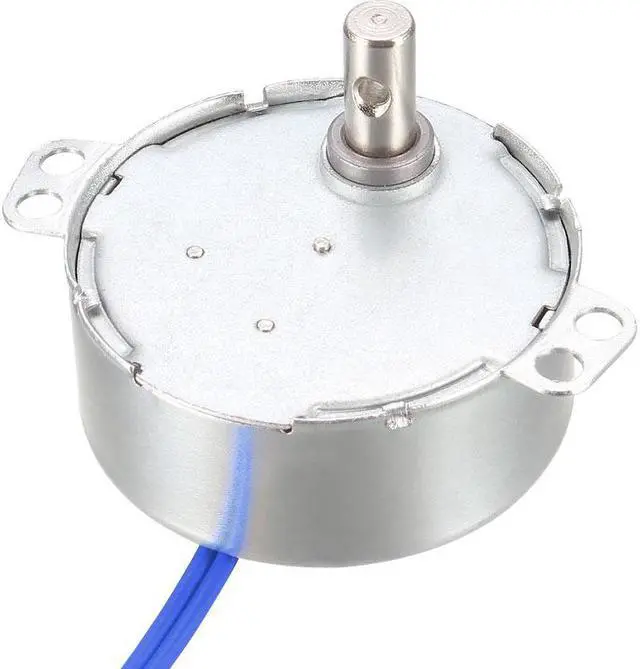

Metal Gear Electric Synchronous Motor AC 100-127V 45-54RPM 50-60Hz CCW/CW 4W

Description

It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments.

KEY_TAB

Information About Synchronous Motors

Advantage of using synchronous motor is the ability to control the power factor. An over excited synchronous motor can have leading power factor and can be operated in parallel to induction motors and other lagging power factor loads thereby improving the system power factor.

A synchronous motor is one in which the rotor normally rotates at the same speed as the revolving field.

KEY_TAB KEY_TAB

Specification

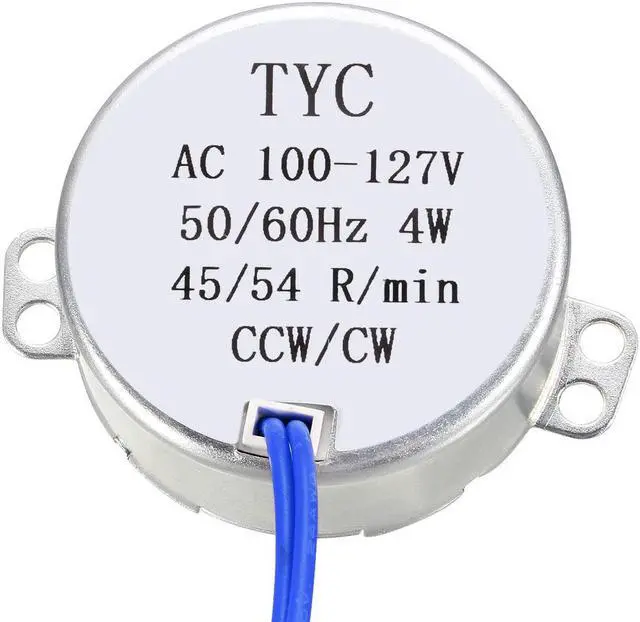

Rated Voltage: AC 100-127V

Power: 4W

Manner of Working: CCW/CW

Rated Frequency: 50-60Hz

Rated Speed: 45-54RPM

Torque: 0.5kgf.cm

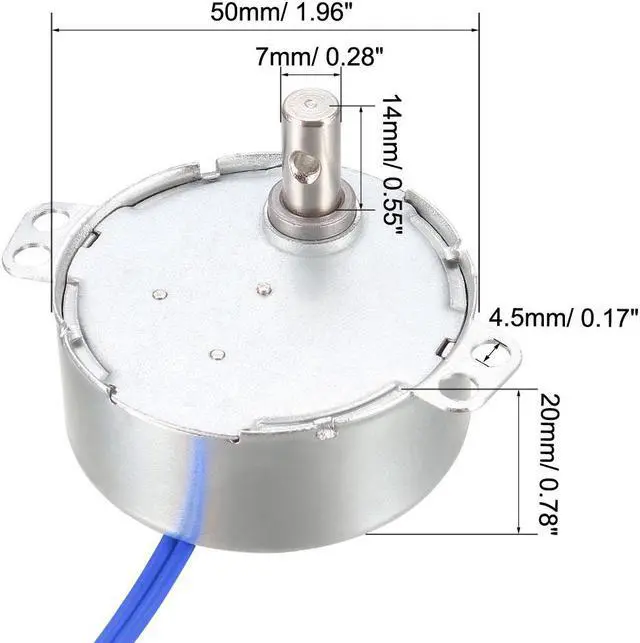

Body Diameter: 50mm/ 1.96 inch

Body Height: 20mm/ 0.78 inch

Total Length: 65mm/ 2.55 inch

Mounting Hole Diameter: 4.5mm/ 0.17 inch

Shaft Diameter: 7mm/ 0.28 inch

Shaft Length: 14mm/ 0.55 inch

Shaft Hole diameter: 3mm/0.11 inch

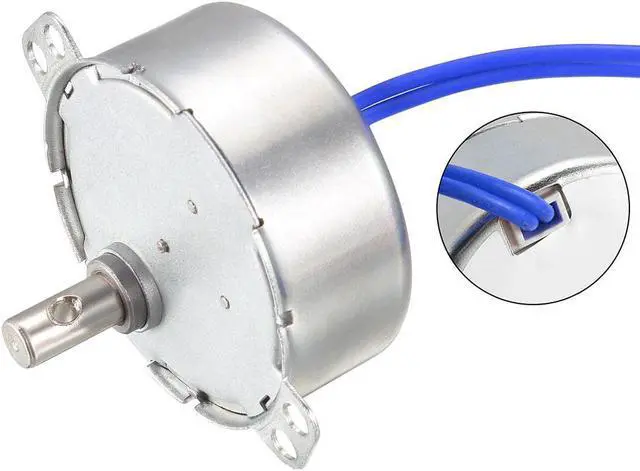

Wire Length: 40cm/ 15.7 inch

Package: 1 x AC Synchronous Motor
