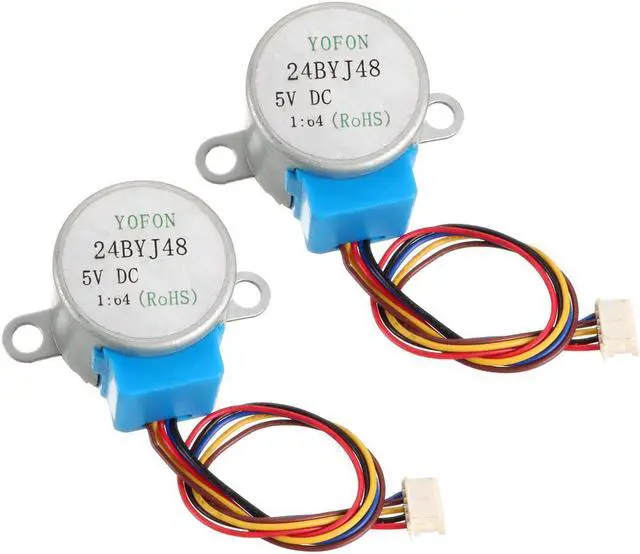

2PCS 24BYJ48 DC 5V Reduction Stepper Motor Micro Reducer Motor 4-Phase 5-Wire 1/64 Reduction Ratio
- Voltage: DC 5V; Phase: 4 phase 5 wire; Reduction Ratio: 1/64.Shaft Size: 5 x 9mm/0.2 x 0.35inch(Dia*H); Motor Size: 24 x 19mm/0.94 x 0.75inch(Dia*H).
+
+
Overview
Specs
Reviews
Description:
High step accuracy and resolution. low vibration and noise.
Stable and reliable performance, high efficiency
Excellent quality and long service life
Widely used on fan, warm air blower, electric heaters, burn oven, stage lighting equipment, microwave oven, lighting, Christmas gifts and other kinds of electrical appliances.
KEY_TAB
KEY_TAB
Specification
Model: 24BYJ48 Reducer Motor
Voltage: DC 5V
Phase: 4 phase 5 wire
Reduction Ratio: 1/64
Cable Length: approx. 100mm/3.94inch

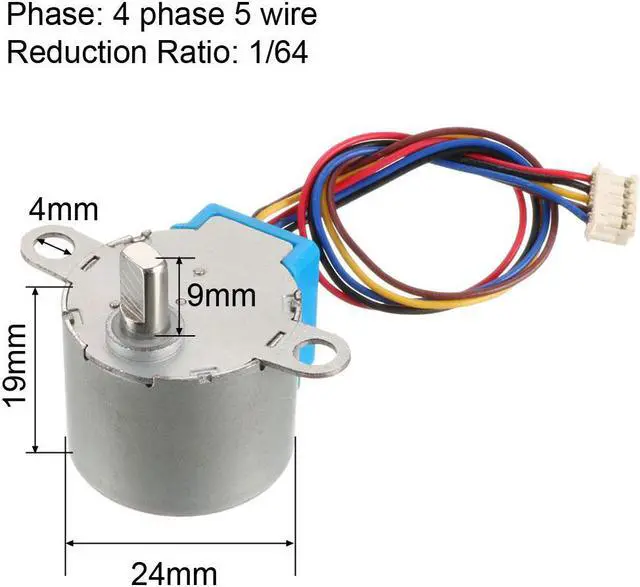

Shaft Size: 5 x 9mm/0.2 x 0.35inch(Dia*H)
Motor Size: 24 x 19mm/0.94 x 0.75inch(Dia*H)
Mounting Hole Diameter: 4mm/0.16inch

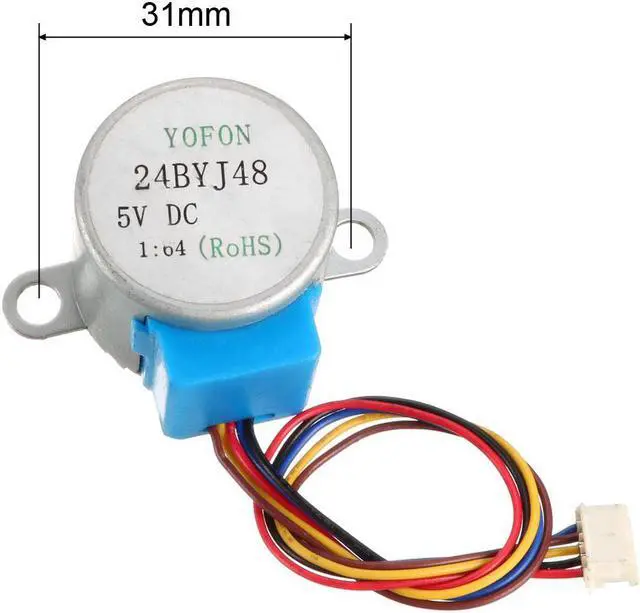

Mounting Hole Distance: 31mm/1.22inch
Weight: 56g
KEY_TAB
Package Included:
2 x Reduction Stepper Motor
KEY_TAB
KEY_TAB
