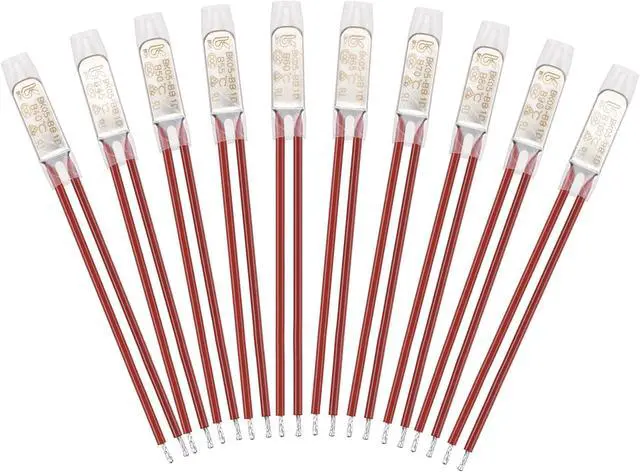

10pcs KSD9700 Thermostat, Normally Close 40-100°C(104-212°F) 10A N.C Temperature Control Switch Assortment Kit

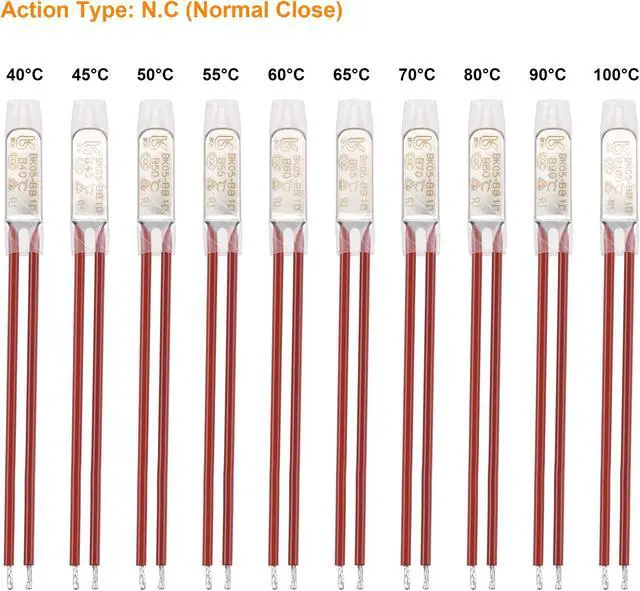

- Action Temperature : 40 45 50 55 60 65 70 80 90 100°C(104 113 122 131 140 149 158 176 194 212°F) ; Action Type: N.C (Normal Closed) ; Power : 250V 10A
- Wire Length : 70mm/2.76inch ; Main Body Material : Metal
- Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
- Features : temperature controller has the characteristics of small size, quick action, accurate temperature control, and long service life
- Wide used in home appliance's motor and electrical equipment, such as air conditioner motor, transformer, thermal appliances, etc.
+
+
Overview
Specs
Reviews
Specification:
Product Name: ThermostatAction
Temperature: 40 45 50 55 60 65 70 80 90 100°CAction
Type: N.

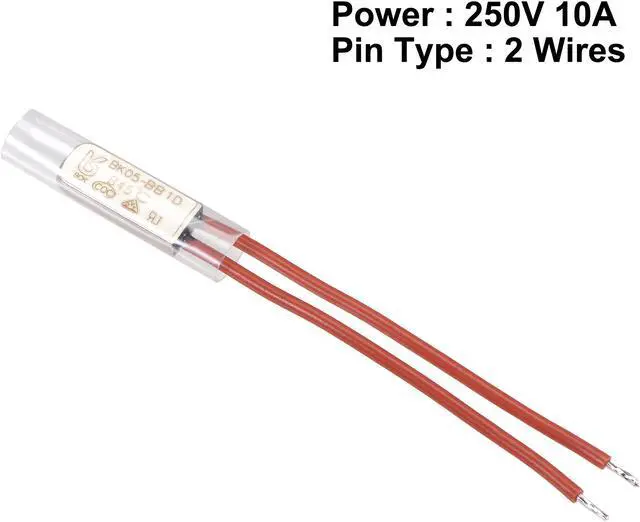

C (Normal Close) Power: 250V 10APin
Type: 2
WiresWire Length: 70mm/

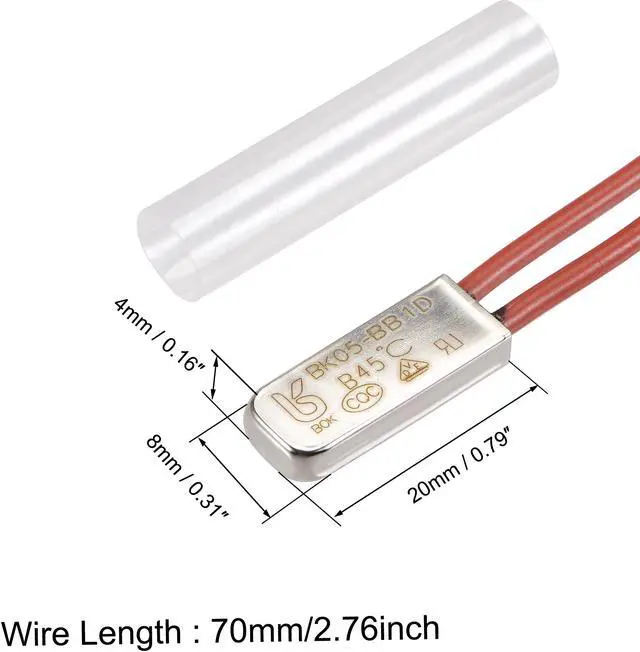

2.76 inchSize: 20mm x 8mm x 4mm/ 0.79 -inch x 0.31 -inch x 0.16 -inch (L*W*H) Main
Body Material:
PlasticLife: 100, 000 times
Package Content: 10pcs x Thermostat (1pcs thermostat for each temperature)
Description: 1.
Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature. 2.
Features: temperature controller has the characteristics of small size, quick action, accurate temperature control, and long service life. 3.
Application: Be applicable to all kinds of home appliances and electronics products.
Product Name: ThermostatAction
Temperature: 40 45 50 55 60 65 70 80 90 100°CAction
Type: N.
C (Normal Close) Power: 250V 10APin
Type: 2
WiresWire Length: 70mm/
2.76 inchSize: 20mm x 8mm x 4mm/ 0.79 -inch x 0.31 -inch x 0.16 -inch (L*W*H) Main
Body Material:
PlasticLife: 100, 000 times
Package Content: 10pcs x Thermostat (1pcs thermostat for each temperature)
Description: 1.
Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature. 2.
Features: temperature controller has the characteristics of small size, quick action, accurate temperature control, and long service life. 3.
Application: Be applicable to all kinds of home appliances and electronics products.
