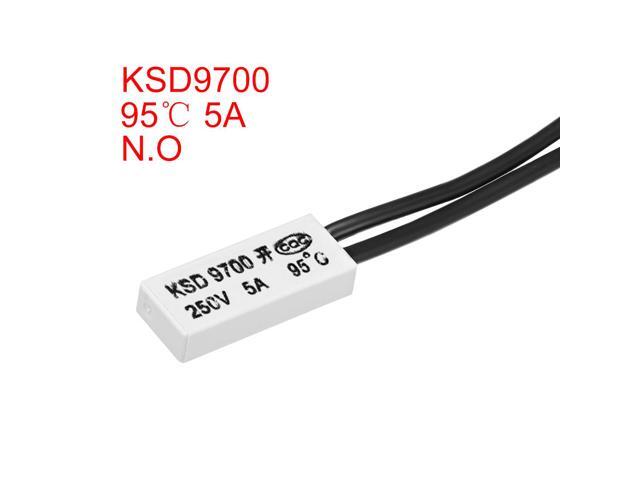

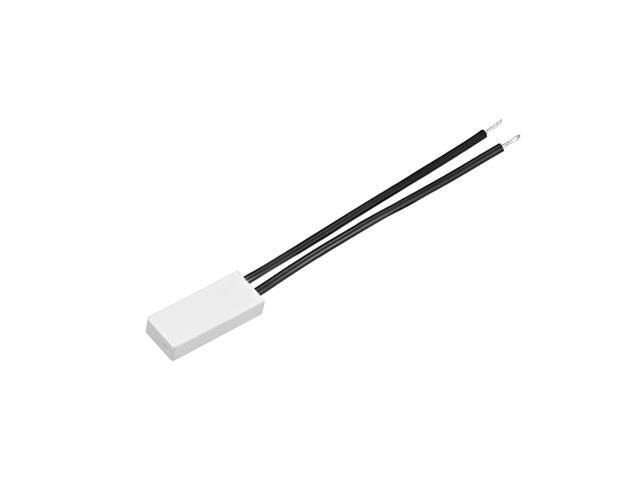

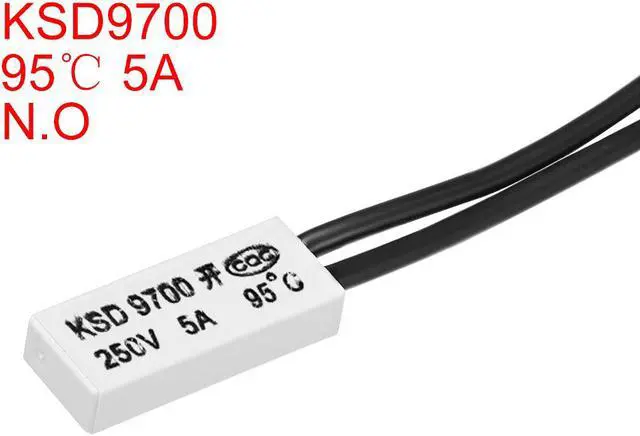

Product Name : KSD9700 Thermostat
Action Temperature : 95
Action Type: N.O (Normal Open)
Power : 250V 5A
Pin Type : 2 Wires
Wire Length : 70mm/2.76inch
Main Body Material : Plastic
Life : 100,000 times
Package Content :

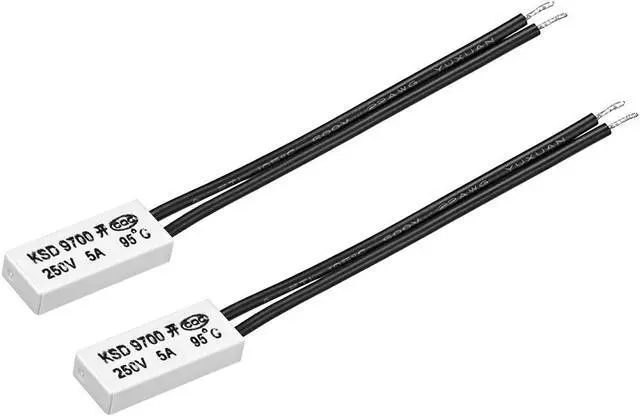

2 x KSD9700 Thermostat
1.Normally Open: The original state of temperature control switch contact is open, and close when the temperature sensing exceeds the rated temperature.
2.Features : KSD9700 temperature controller has the characteristics of small size, quick action, accurate temperature control, large current control and long service life.
3.Working Principle : KSD9700 uses square bimetal sheet as temperature sensor. When the temperature rises to the action temperature, the square sheet jumps suddenly, the transmission contacts act quickly, and the circuit is disconnected. When the temperature drops to the action temperature, the bimetal sheet is reset and the contacts are to their original state, so as to achieve the purpose of on-off circuit.
4.Application : Be applicable to all kinds of home appliances and electronics products. Such as Electric Motors, Fluorescent Ballasts, Battery Chargers, Transformers, Solenoids, Heating pads, OA-Machines
