Mechanical Thermostat, KTO011 0-60℃ Adjustable Compact Normally Close(N.C) Temperature Controller Switch

Specification :

Voltage: 110V-250V

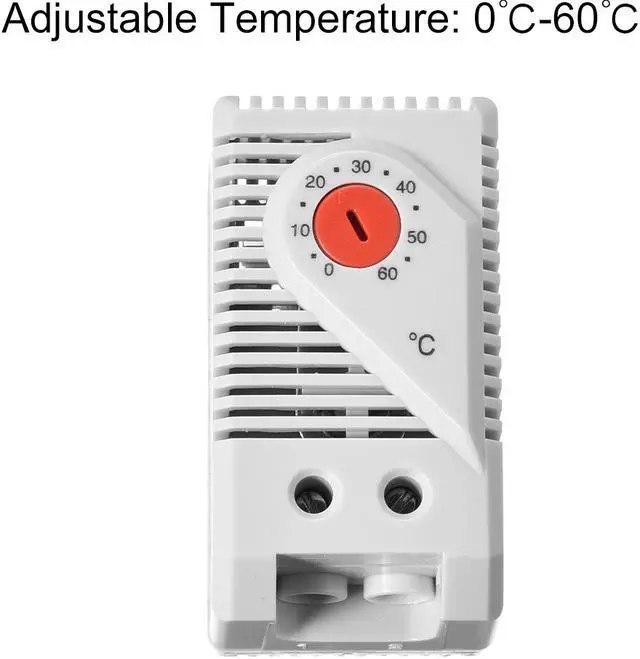

Adjustable Temperature: 0-60

Switch Maximum Capacity: 250VAC, 10(2)A / 120VAC, 15(2)A DC30W

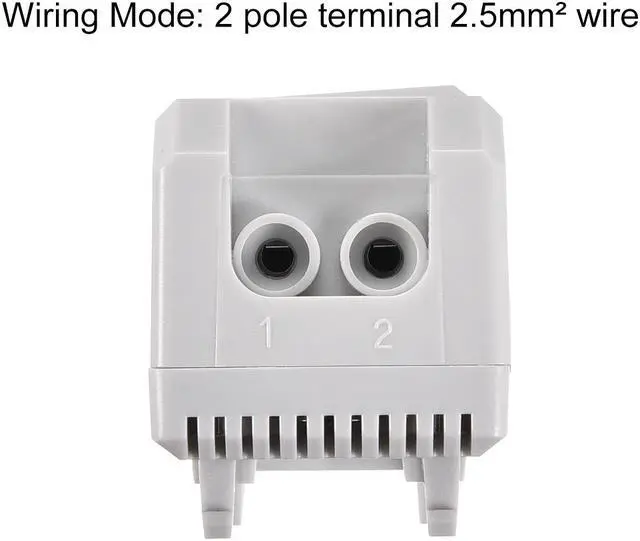

Wiring Mode: 2 pole terminal 2.5mm² wire

Installation Method: 35mm DIN orbit

Service Life: 100,000 cycles

Protection Level: IP20

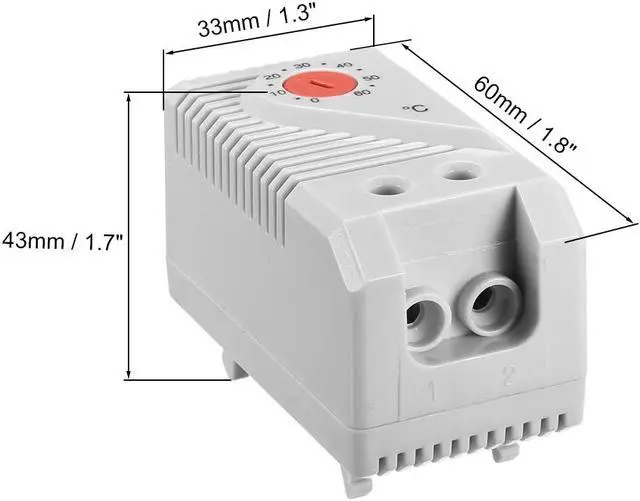

Size(L x W x H): Approx. 60 x 43 x 33mm / 1.8 x 1.7 x 1.3inch

KEY_TAB

Package Content :

1 x Mechanical Thermostat

KEY_TAB

Description :

1.The shell of our thermostat is made of high-quality plastic material with fine workmanship, environmental-friendly, safe, durable to use

2.Its temperature controlling range is from 0 to 60, perfect for using to control heater

3.It has a large data scale and an adjustable button is for easy and convenient to adjust the controlling temperature

4.Adopting standard rail clip design, 4 feet holders, easy to install and disassemble

5.Circuit interfaces in the bottom of thermostat can make wire connection become more sturdy and safer

6.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
