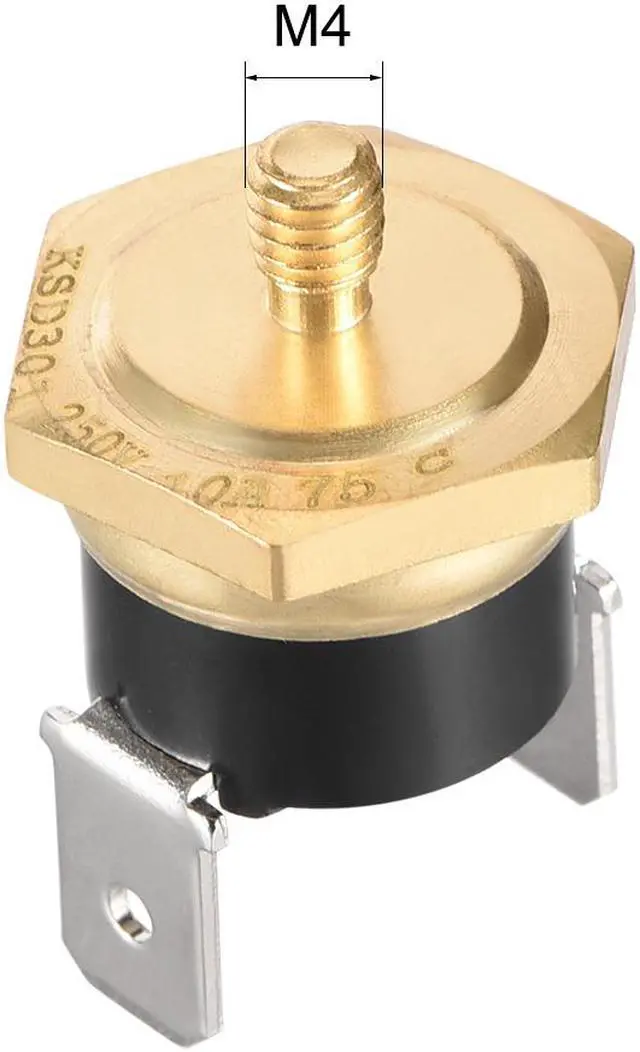

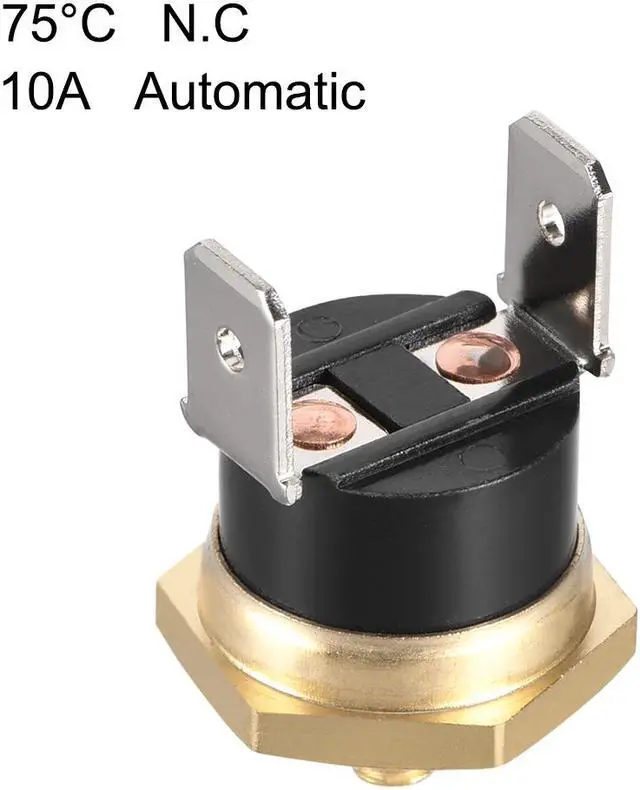

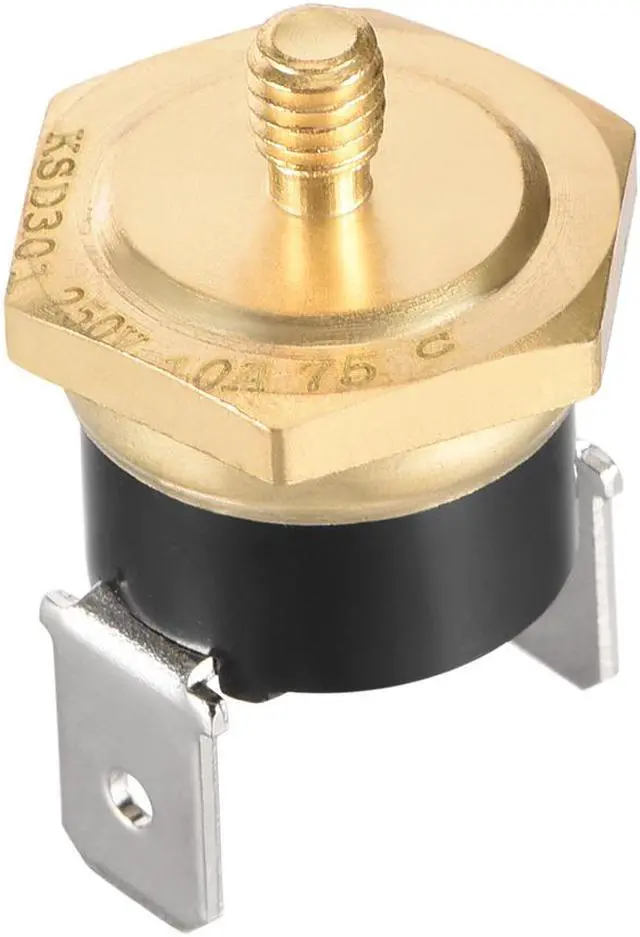

KSD301 Thermostat, Temperature Control Switch 75°C Copper M4 Normally Closed N.C 10A

Specification:

Product Name : KSD301 Thermostat

Model: KSD301

Action Temperature: 75°C

Power : 250V 10A

Action Type: N.C (Normal Close)

Thread Dia : M4

Reset Tyoe : Automatic

Material : Copper, Bakelite

Package Content :

1 x KSD301 Thermostat

Description :

1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.

2.Feature: Contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.

3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats.

4.Function: It is closed until the temperature reaches 75 Celsius degree, then the switch opens. Widely used for temperature control or protection for household electric appliances.

5.Application: Mainly used for motor electric heating water dispenser, water bottles, disinfection cabinet, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, disinfection cupboard and motor cleaner etc.
