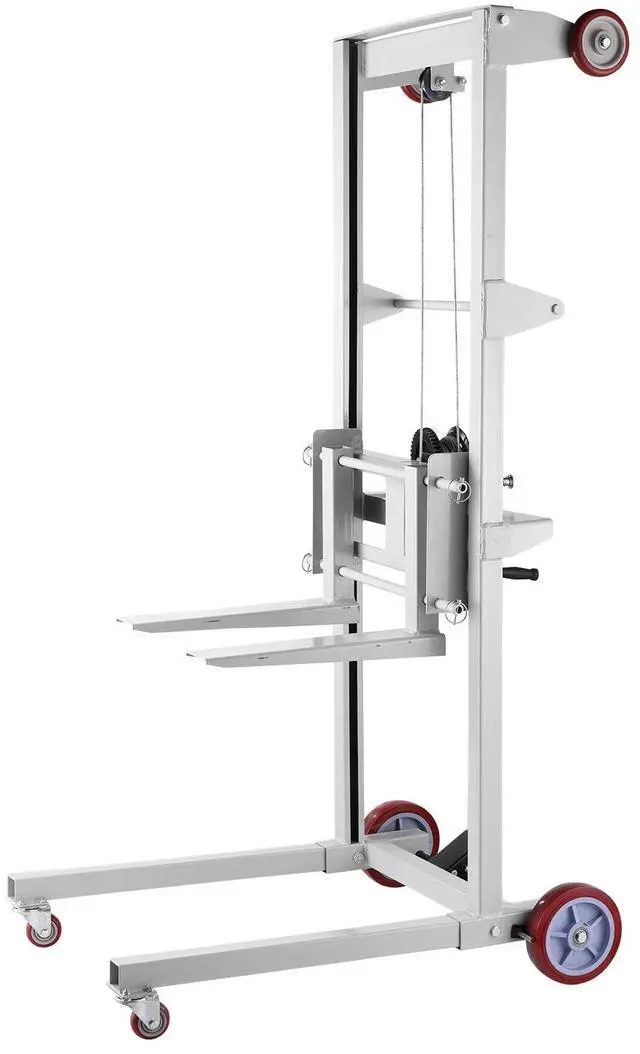

Material Lift Winch Stacker, 551 lbs Capacity Pallet Truck Dolly, 70 in Max Lifting Height Manual Winch Stacker, Multifunctional Manual Pallet Truck Stacker with Wheels and Adjustable Fork
- Strong Load Capacity: This material lift winch stacker supports a maximum load of 551 lbs/249.93 kg to ensure the security and stability of large-scale item handling, stacking and warehouse management, and meet the needs of high-intensity work.

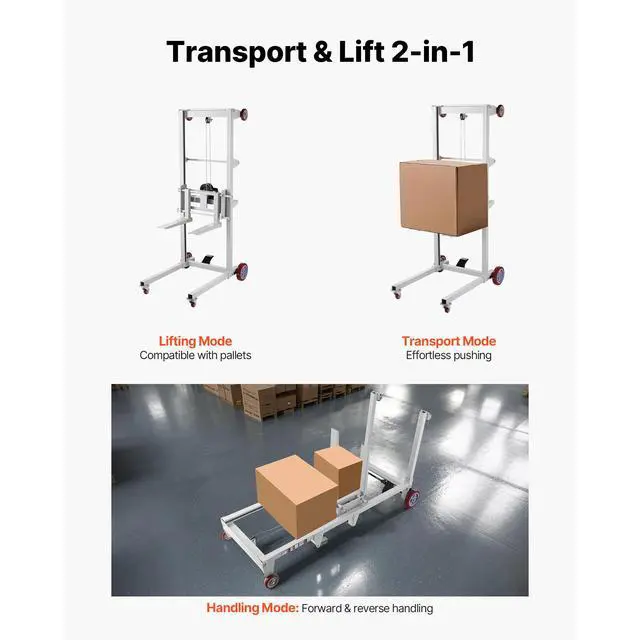

- Dual Mode Design: This manual winch stacker combines vertical lifting of heavy loads and horizontal transportation of trolleys, equipped with a manual winch with a geared long handle for improved efficiency. Ideal for environments without electricity. It features forward and inverted handling modesforward mode is suitable for long-distance transport, while the inverted mode allows for precise operation or unloading of goods.

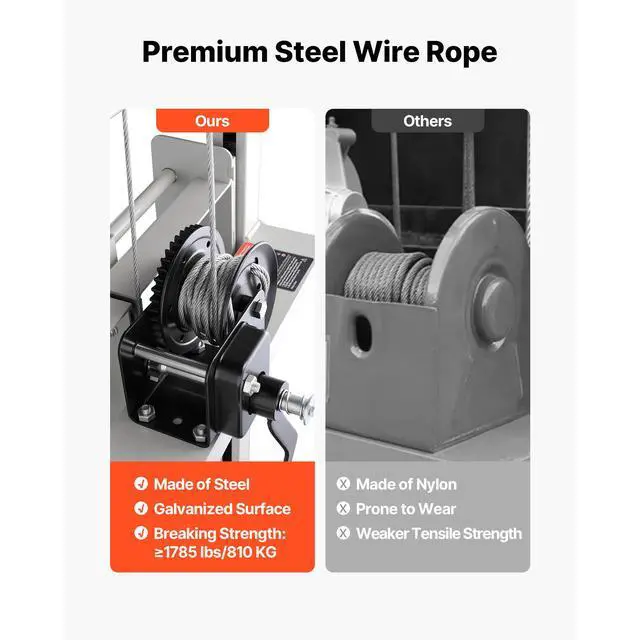

- High-quality Steel Wire Rope: The manual lift stacker is made of Q235 steel, with a breaking tension of more than 1785 lbs/810 kg, galvanized and rust-resistant, adapting to harsh environments and providing additional security guarantees
+
+
Overview
Specs
Reviews
Specifications
Item Model Number: QGHNEIV0
Load Capacity: 551 lbs/250 kg

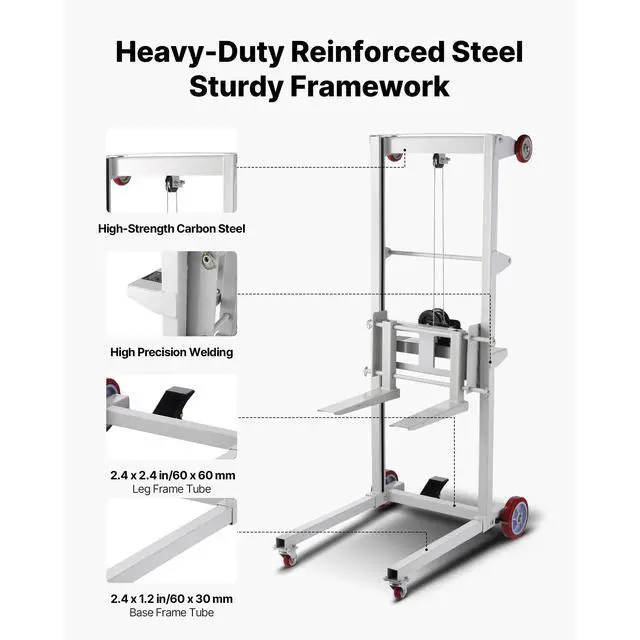

Main Material: Q235
Vertical Pulling Max Load: 551 lbs/ 249.93 kg
Fork Up Lift Range: 18.1 - 70 in/460 - 1780 mm
Fork Down Lift Range: 3.14 - 55.9 in/80 - 1420 mm
Wire Rope Breaking Strength (lbs): 1785 lbs/810 kg

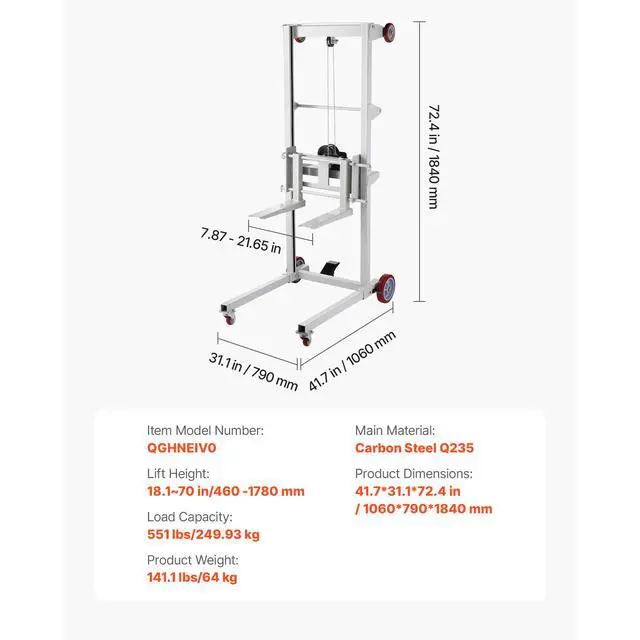

Product Dimensions: 41.7 x 31.1 x 72.4 in/1060 x 790 x 1840 mm
Product Weight: 145.5 lbs/66 kg
Package Content
1 x Material Lift Winch Stacker
2 x Support Legs
2 x Fork Fixing Tubes
4 x Cotter Pins

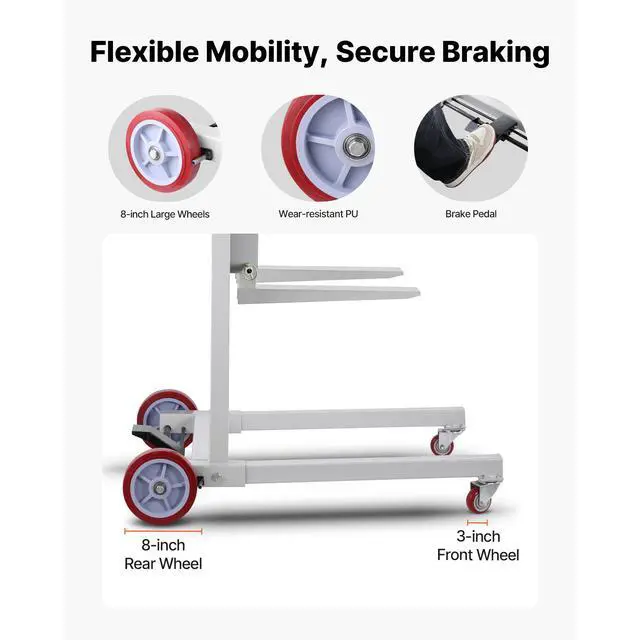

2 x 8-inch Directional Wheels
2 x 5-inch Directional Wheels
2 x 3-inch Directional Wheels
1 x Crank Handle
1 x Fork
8 x (8 x 15mm) Screws (with nuts)
2 x (10 x 60mm) Screws (with nuts)
2 x (12 x 70mm) Screws (without nuts)
2 x (12 x 70mm) Screws (with nuts)
1 x (6 x 35mm) Screw (without nuts)
1 x Spring
1 x Cylinder
1 x Round Plate
