Brass Cap, Hex Pipe Fitting 1/4"G Female Pipe Connector 4pcs

Specification:

Product Name: Brass Cap

Material: Brass

Color: Gold Tone

Weight: 35g

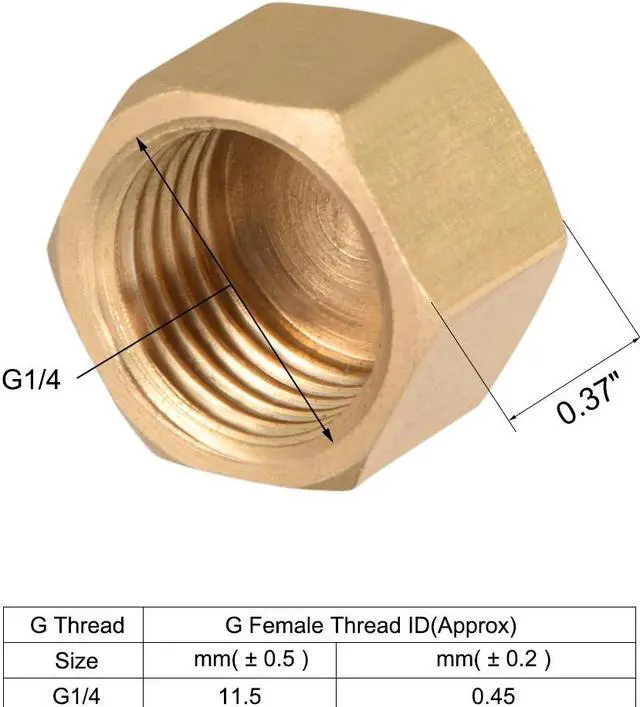

Thread Size: 1/4" G = 11.5mm

Thread Length : 0.35 " =9mm

Hex Width :0.59" =15mm

Hex Height : 0.41" =10.5mm

Total Size: 15 x 10.5mm / 0.59-inch x 0.41-inch (W*H)

Guaranteed pressure resistance : 2MPa

Operating temperature-50 - 120 Degree Celsius

KEY_TAB

Package Content :

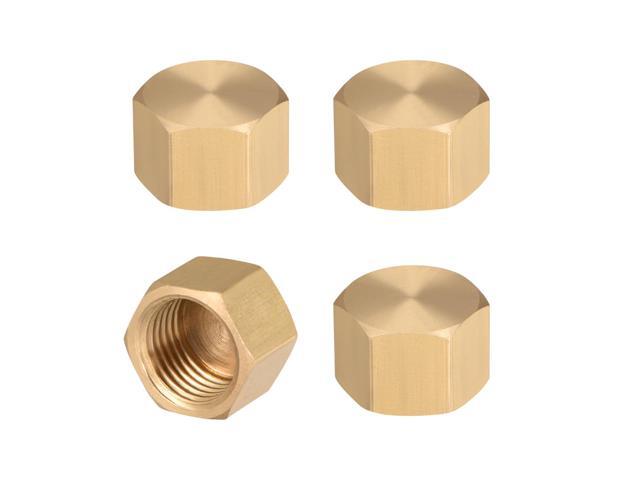

4pcs x Brass Cap

KEY_TAB

Description:

1.This hex drive countersunk plug is a brass pipe fitting with 1/4" Female G threads.

2.The countersunk plug with a round drive inserts into a pipe or fitting to close and terminate its end and has a recessed round head for increased bearing load.

3.It has Female National Pipe Taper (G) threads for connecting to male threaded pipes, creating a tighter seal than straight threads.

4.This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. Brass can be connected to copper, brass, plastic, aluminum, and welded steel.

5.The round drive countersunk plug has fair vibration resistance and is suitable in low to medium pressure applications.

6.Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries.
