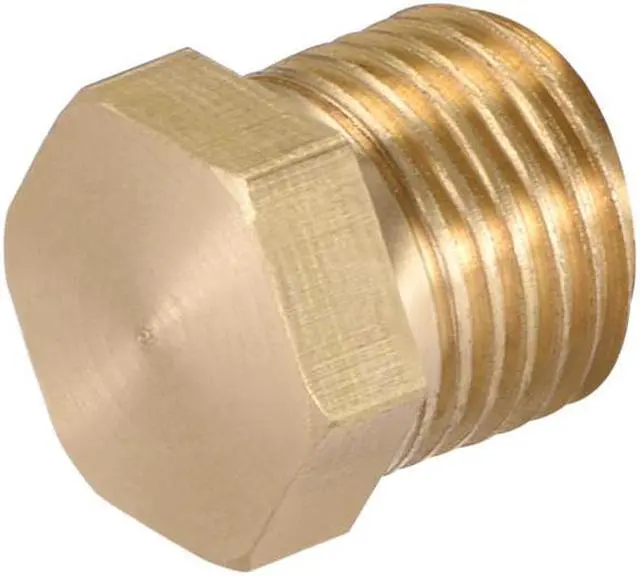

Brass Pipe Fitting, Cored Hex Head Plug 1/8"G Male Thread Connector Coupling Adapter 20pcs

Specification:

Product Name: Hex Head Plug

Material: Brass

Color: Gold Tone

Weight: 73g

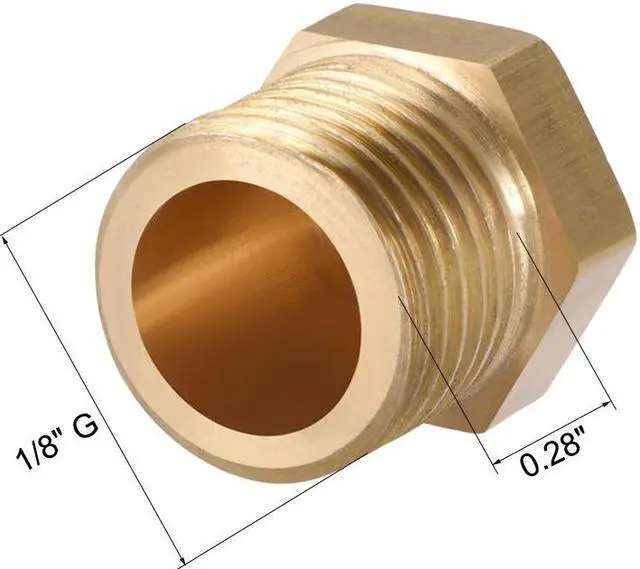

Thread Size: 1/8" G = 9.5mm

Thread Length : 0.28 -inch =7mm

Hex Width :0.39-inch =10mm

Hex Thickness : 0.13-inch =3.3mm

Total Size: 10 x 10mm / 0.39-inch x 0.39-inch (W*H)

Guaranteed pressure resistance : 2MPa

Operating temperature-50 - 120 Degree Celsius

KEY_TAB

Package Content :

20pcs x Hex Head Plug

KEY_TAB

Description:

1.This round drive countersunk plug is a brass pipe fitting with 1/8" male G threads.

2.The countersunk plug with a round drive inserts into a pipe or fitting to close and terminate its end and has a recessed round head for increased bearing load.

3.It has male National Pipe Taper (G) threads for connecting to female threaded pipes, creating a tighter seal than straight threads.

4.This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. Brass can be connected to copper, brass, plastic, aluminum, and welded steel.

5.The round drive countersunk plug has fair vibration resistance and is suitable in low to medium pressure applications.

6.Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries.
