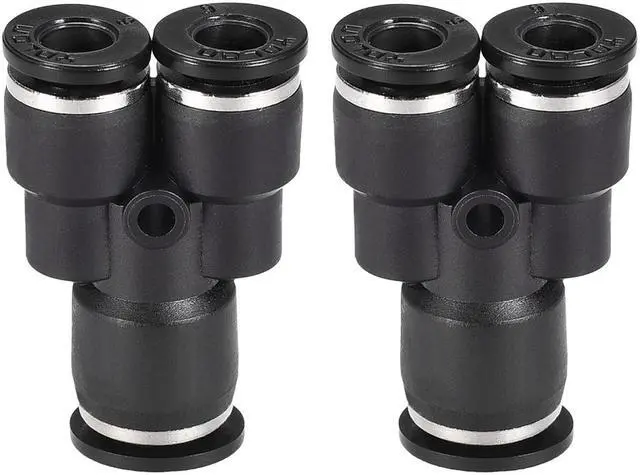

Plastic Connect Y Splitter Push To Tube Fittings 8mm X 6mm OD Push Lock 2pcs

Product Features:

Product Name : Connect Fitting

Model : MPW8-6

Color : Black

Material : Plastic

Type: Y Type Tee Connector

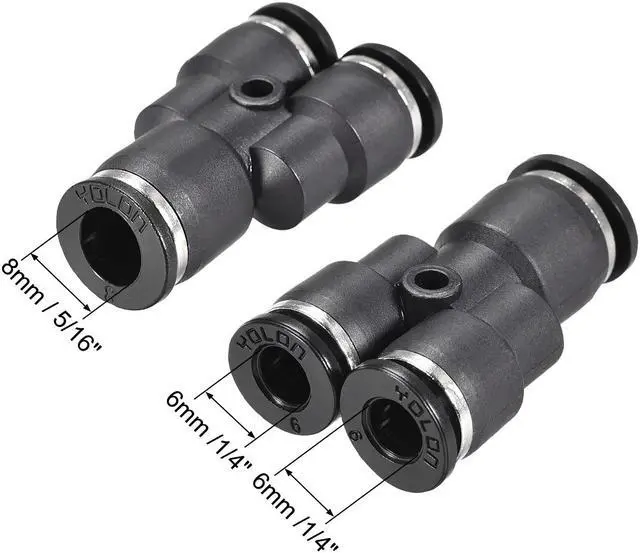

Tube Size (OD) : 8mm x 6mm x 6mm / 5/16" x 1/4" x 1/4"

Operating Pressure : 0-1MPa

Guaranteed pressure resistance : 1.5MPa

Operating temperature-10 - 60 Degree Celsius

Dimension : 40mm x 22mm x 13mm / 1.57-inch x 0.87-inch x 0.51-inch(L x W x H )

KEY_TAB

Package Content:

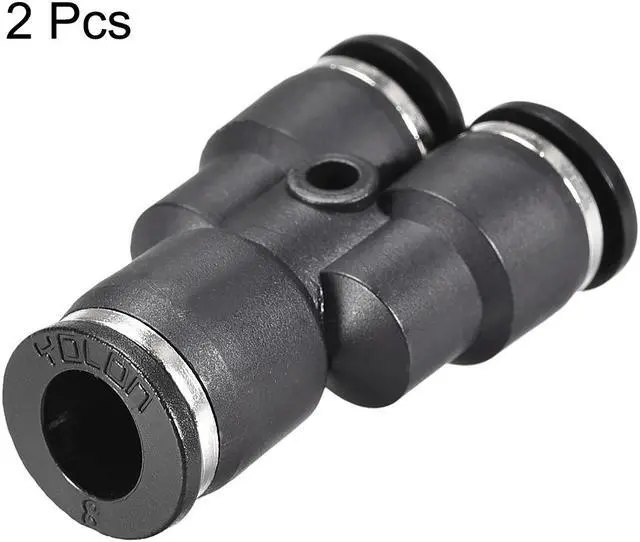

2pcs x Connect Fitting

KEY_TAB

Description:

1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

2.A good release cap can withstand greater and stronger pressure without tripping.

3.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

4.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.

5.The small tube use for fixed.

KEY_TAB

Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
