Push To Connect Tube Fitting Adapter 4mm Tube OD X 1/4 NPT Female Straight Pneumatic Connecter Connect Pipe Fitting 2pcs

Product Features:

Product Name : Push to Connect Fittings

Model :MPCF4-02

Color : Silver Tone,Black

Material : Plastic,Metal

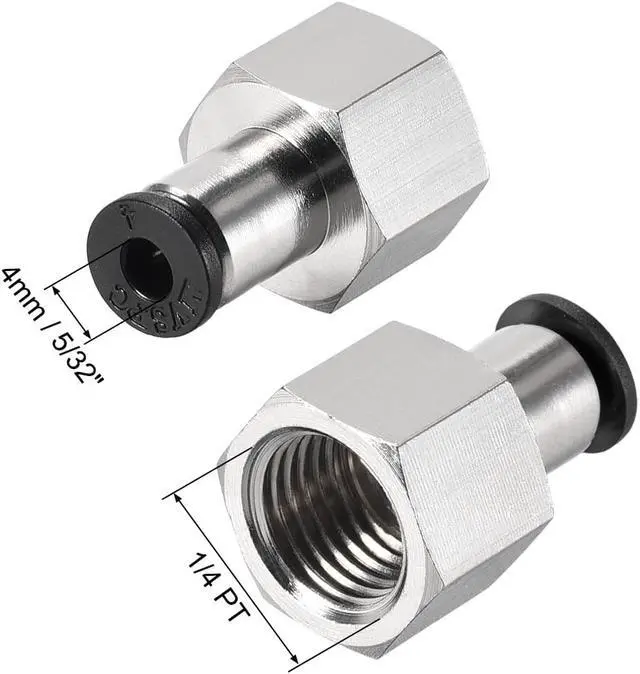

Thread Size : 1/4 NPT

Tube Size (OD) : 4mm / 5/32"

Type: Female Straight Thread Connector

Operating Pressure : 0-9MPa

Guaranteed pressure resistance : 1.5MPa

Operating temperature0 - 60 Degree Celsius

Dimension : 26mm x 17mm / 1.02-inch x 0.67-inch (L x W )

KEY_TAB

Package Content:

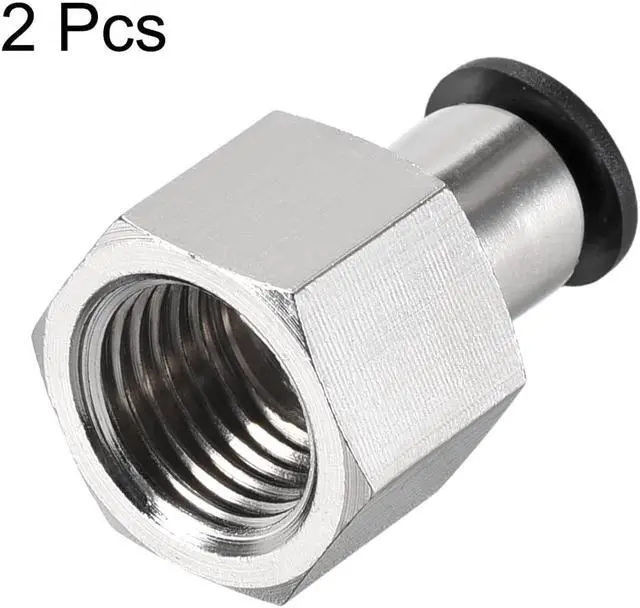

2pcs x Push to Connect Fittings

KEY_TAB

Description:

1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.

2.Push-to-connect tube connection on one end and male G threads on the other end.

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Elliptical release ring help to connect tube easily by manual, no special tools required.

6.Outside (and Inside where applicable) hexagonal wrench tightening.

KEY_TAB

Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
