    50ft Mini Split Line Set, 1/4 & 3/8 OD AC Copper Tubing Pipe, 3/8 White PE Thickened Insulated Coil with Flared Nuts, Strapping Tapes, for Mini Split Air Conditioner HVAC or Heat Pump System

    • Premium Copper Lines: Made with 99.9% Pure C12200 Copper and Thick-Wall for bend-resistant, leak-free installation of your mini split line set even when routing through walls
    • Extreme Reliability: 850 PSI pressure rating well above R410A operating range ensures stable performance for mini split ac line set in extreme heat, reducing burst risk
    • Compatible with All Models: Standard 1/4 inch liquid line + 3/8 inch suction line configuration matches all 0-12,000 BTU mini split copper line set for hassle-free installation
    • Energy Saving Insulation: 3/8 thick PE+EVA composite insulation is stronger and weather-resistant than standard, effectively lowering cooling loss in your mini split installation kit and condensation
    • Outdoor Protection: Includes 2 Weather-resistant strapping tapes for long-lasting outdoor performance and quick secure installation of mini split tubing for a neat, professional-looking setup
    +
    +
    Overview
    Specs
    Reviews

    Specifications

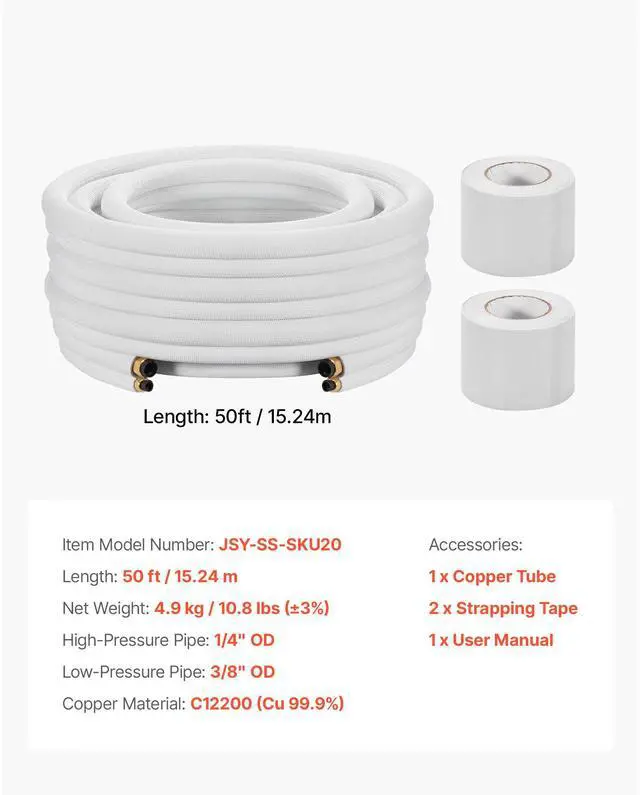

    Item Model Number: JSY-SS-SKU20
    High Pressure Hose OD: 0.3 in / 6.4 mm
    Low Pressure Hose OD: 0.4 in / 9.5 mm
    Length: 50.0 ft / 15.2 m
    Insulation Thickness: 0.4 in / 9.5 mm
    Material: Copper C12200 (Cu 99.9 %)
    Outer Material: PE Insulation Tube (PE + EVA)
    Net Weight: 10.8 lbs / 4.9 kg ±3% (with accessories)
    Item Size (Expanded): 600.0 x 1.1 x 2.1 in / 15240 x 28 x 54 mm

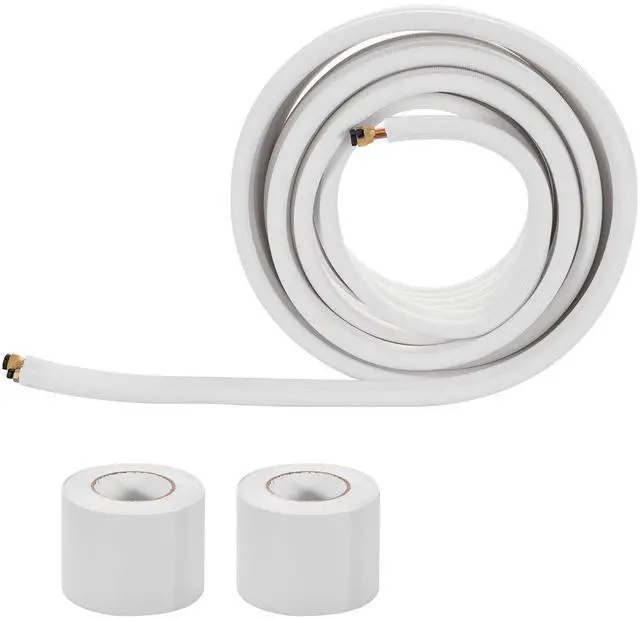

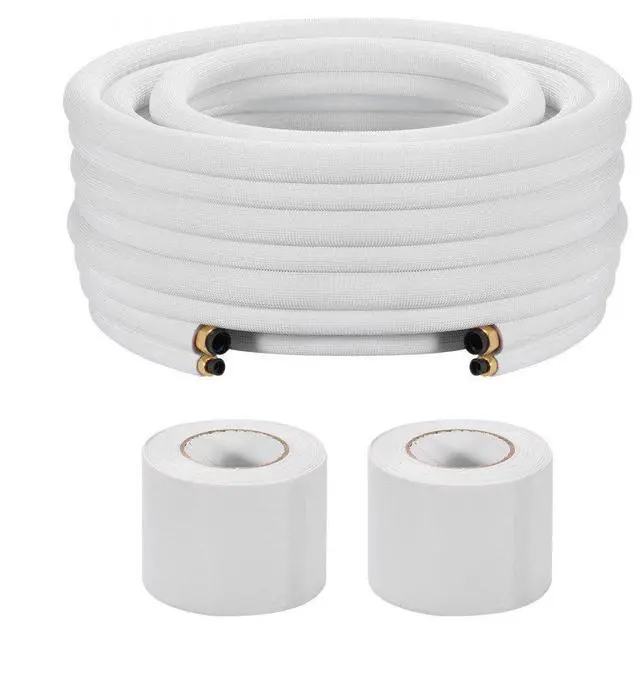

    Package Content
    1 x Mini Split Line Set
    1 x Copper Tube
    2 x Strapping Tape
    1 x User Manual
