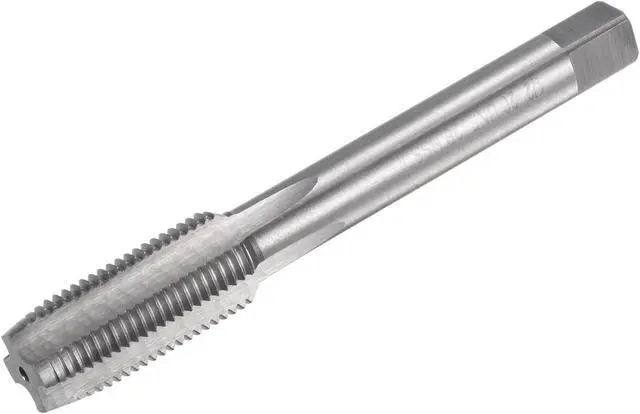

Thread Milling Threading Tap 1/2"-20 UNF, Left Hand Machine HSS (High Speed Steel) 6542 Uncoated 4 Straight Flutes 2B Tolerance Grade

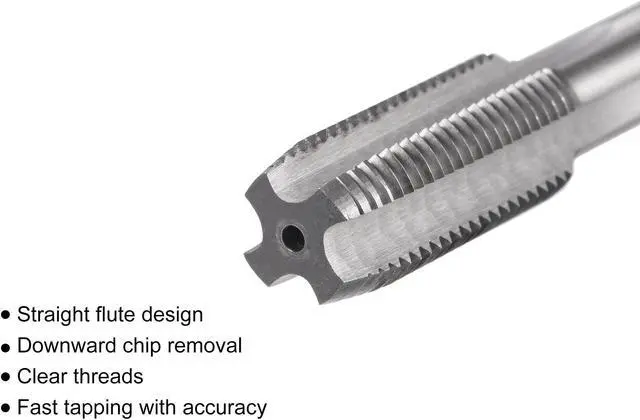

- Tap Size: 1/2"-20 UNF thread, 2B thread tolerance grade, left hand thread cutting. Straight flute design, downward chip removal, clear threads, fast tapping with accuracy.

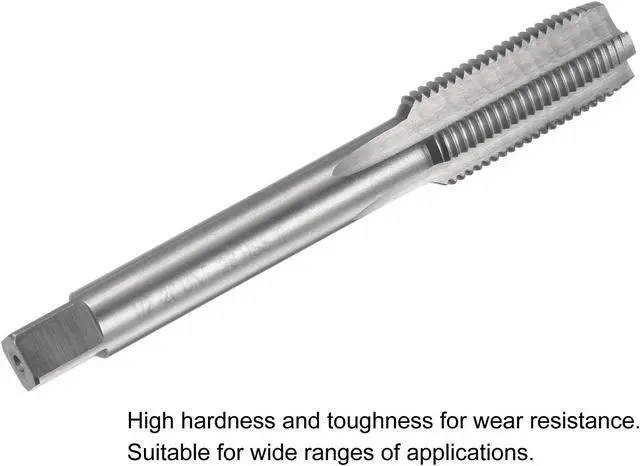

- Material and Finish: High-speed steel tool is with high hardness and toughness for wear resistance. Features just the base substrate without any additional coatings, suitable for wide ranges of applications.
- Applications: Suitable for processing through holes. Great for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc.
- Easy to Use: Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps.
- Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force.
+
+
Overview
Specs
Reviews
Specifications

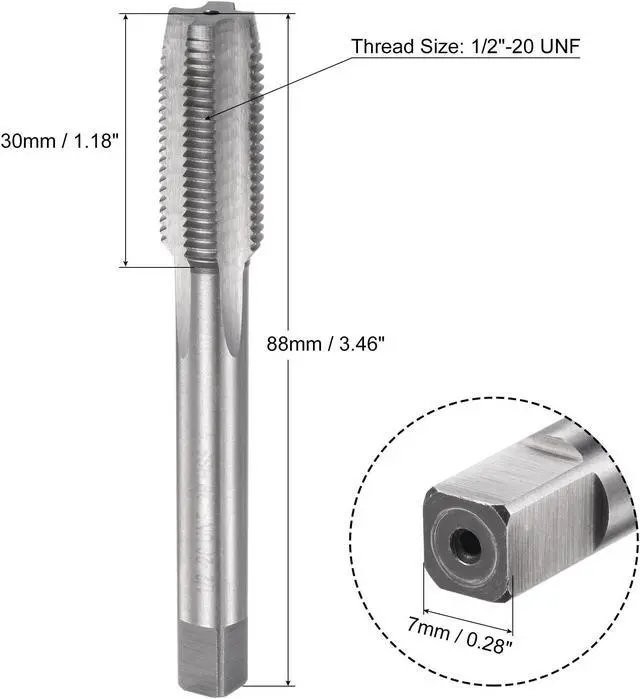

: ThreadSize: 1/2"-20 UNF
Thread Length: 30mm / 1.18"T otal
Length: 88mm / 3.46"S quare
End Size: 7mm x 7mm / 0.28" x 0.28"T hread
Tolerance Grade: 2BCutting
Direction: Left
HandMaterial: High Speed Steel (HSS 6542)
Finish:
UncoatedPackage: 1 x
Threading TapDescriptions: 1. Straight flute design, downward chip removal. Left hand thread cutting, clear threads, fast tapping with accuracy. 2. High-speed steel tool is with high hardness and toughness for wear resistance. Features just the base substrate without any additional coatings, suitable for wide ranges of applications. 3. Suitable for processing through holes. Great for drilling and tapping aluminum, die steel, stainless steel, bronze, hard plastics, etc.. 4. Used on drilling machines, tapping machines, CNC and milling machines. Use with tapping oil to get higher quality threads and more durable taps. 5. Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause breakage to the tap due to uneven force.
