AC24V G1/2 Male Thread Plastic Water Electric Solenoid Valve Normally Closed N/C Pressure Water Inlet Flow Switch

Specification:

Product Name : Water Solenoid Valve

Model: FPD-270A

Color : White

Material: Plastic,Metal

Voltage AC24V

Connector Angle :90 Degree

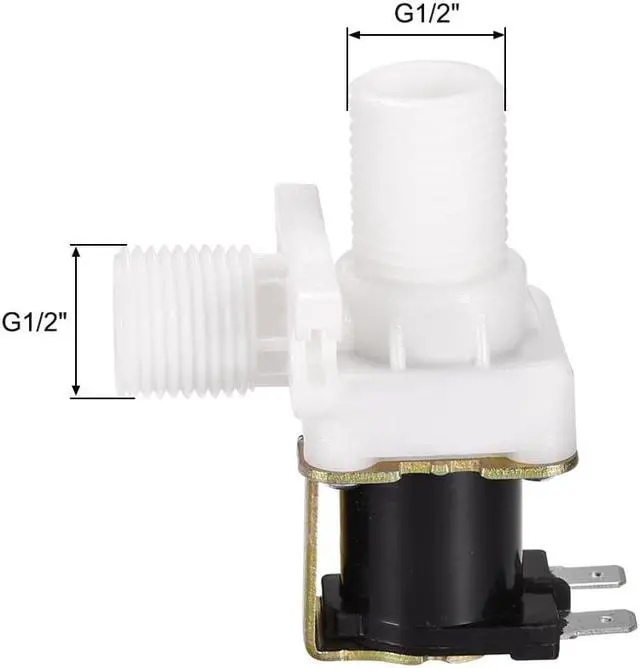

Outlet Thread Size : G1/2"

Fixed Hole Distance : 37mm / 1.46"

Solenoid Valve Type : Normally Closed

Working pressure: 0.02~0.8mpa (4~114 psi)

Ambient temperature: 0 to Degree Celsius

Operating temperature: 0~90 Degree Celsius

The air relative humidity below 95% (25°C temperature)

Total Size : 77mm x 47mm x 69mm /3.03"x 1.85" x 2.72" (LxWxH)

KEY_TAB

Package Content:

1pcs x Water Solenoid Valve

KEY_TAB

Description:

1. The water solenoid valve selects the corresponding voltage and temperature according to the actual situation when selecting type.

2. When install the solenoid valve, medium flow direction must be consistent with the direction arrow as shown in the valve body, the valve must be installed in horizontal pipe runs. Solenoid valve coil keep in a vertical position, the valve can not be put in places with splashing water or water leakage.

3. If the solenoid valve is closed or blocked, please open the top four screws to clean the inner cavity impurities.

4. During use solenoid valve should be regularly cleaning dirt on the surface of the movable iron core and the piston, sealing gasket should be checked at the same time in dismounting, damaged should be replaced timely when found.

5. Before installing the solenoid valve, pipeline should be cleaned.

6.Used in automatic control system: solar automatic water supply, infrared induction ware, water dispenser, water control machine, automatic water dispenser, water heater, campus card equipment, etc.
