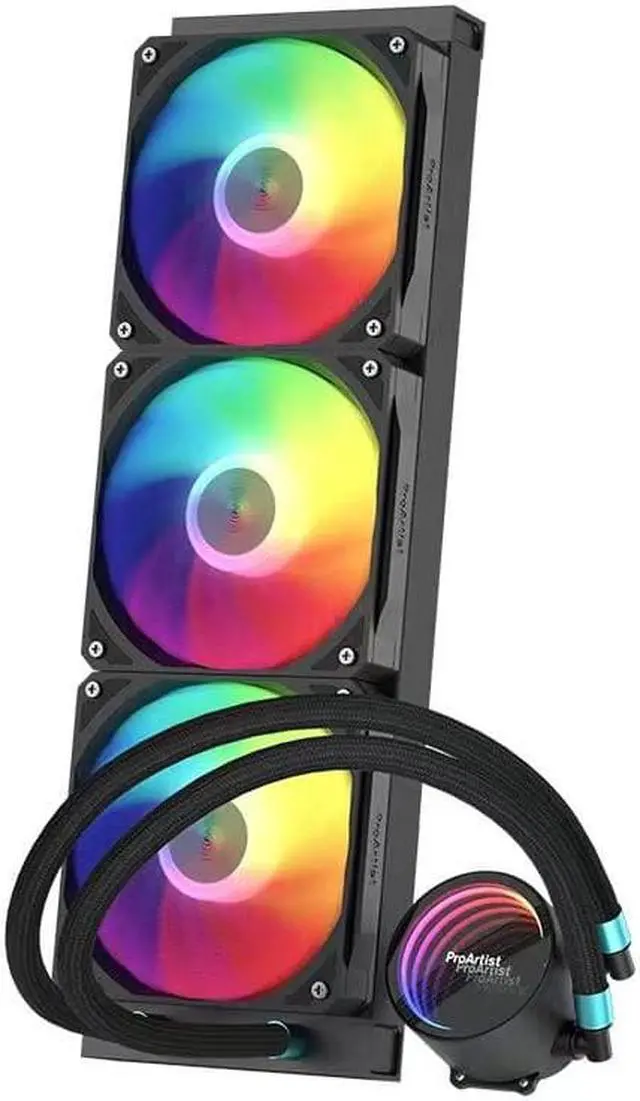

Corn Economic Aio 5 Series Integrated Water Cooling Radiator ARGB supports 12th generation CPU 360mm PWM ARGB SYNC Fan/Infinity Mirror Cooling Head Supported Platforms LGA1200/LGA1700/AM4

ECONOMIC AIO 5

Integrated water cooling radiator

Support platform: LGA1700/LGA1200/AM4

Weight: 1412g±10%


Size: 397*120*27mm

Material: aluminum

Water pipe length: 410mm

Water pipe material: EPDM+IIR


Cold head size: 67*67*47mm

Pump life: 30000H

Operating noise: 29±2dB(A)

Bottom material: copper

Input current: 0.2A±10%

Input voltage: 12V

Operating power: 2.4W±10%

Full load speed: 2400RPM±10%


Fan size: 120*120*25mm

Fan weight: 129g±10%

Fan air volume: 79CFM±10%

Fan pressure: 1.8mm/H2O±10%

Fan noise: 33dB(A)

Input current: 0.38A±10%

Input voltage: 12V

Operating power: 4.56W±10%

Full load speed: 1850RPM±10%

Bearing type: MHDB

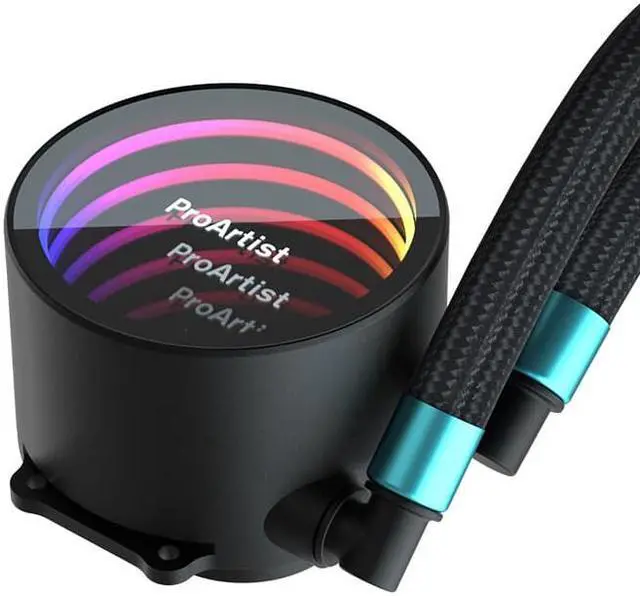

Shenguang synchronous cooling head, deep light and shadow design, different visual enjoyment.


The cold exhaust is connected by one line, and the cold exhaust fan is only connected to the motherboard by one line, which makes the line management simple and the chassis more tidy


Quiet and efficient, 2400RPM water pump speed, taking into account performance and noise


EPDM+IIR water pipe, refuse to leak


Eight-stage silent motor

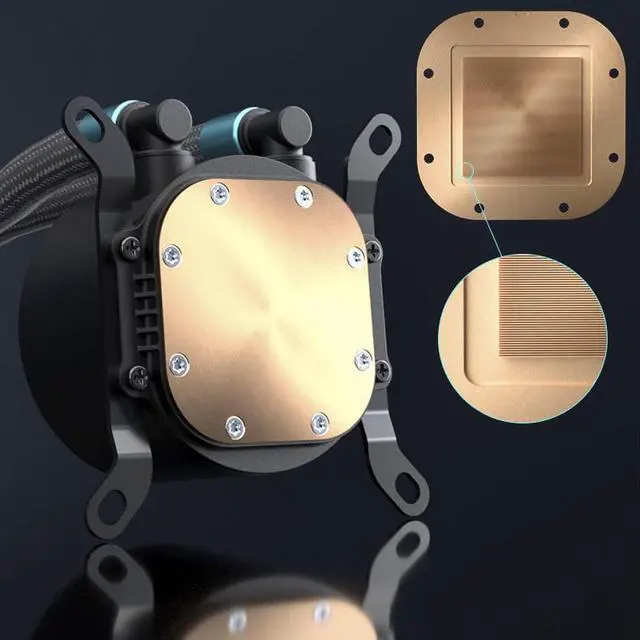

Micro-channel copper bottom, precision shoveling process, quickly transfer CPU heat

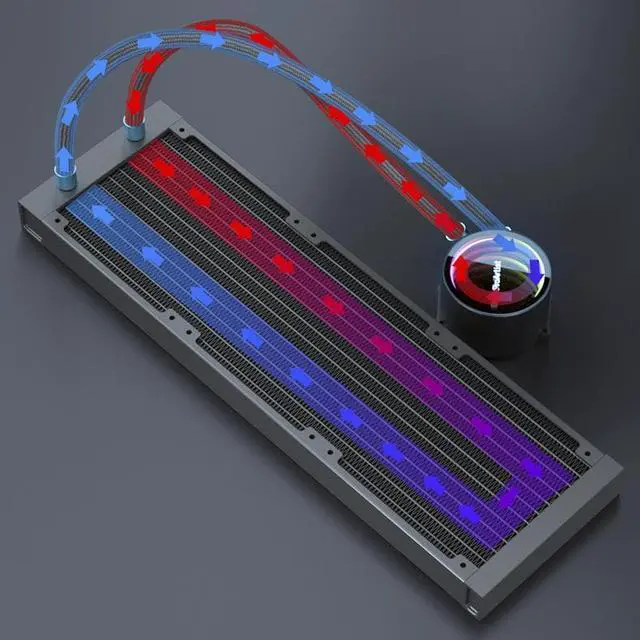

Square drainage, low resistance water channel, regular thickness compatible with most chassis

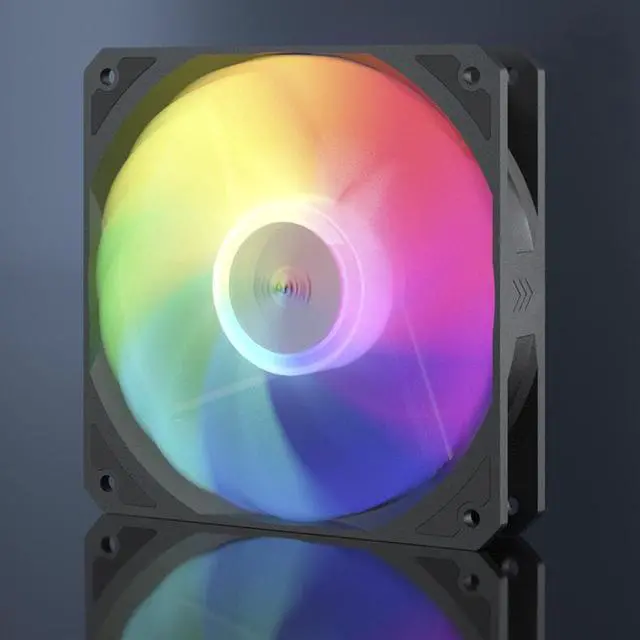

ARGB fan, Shenguang synchronization, automatic temperature control and speed adjustment
