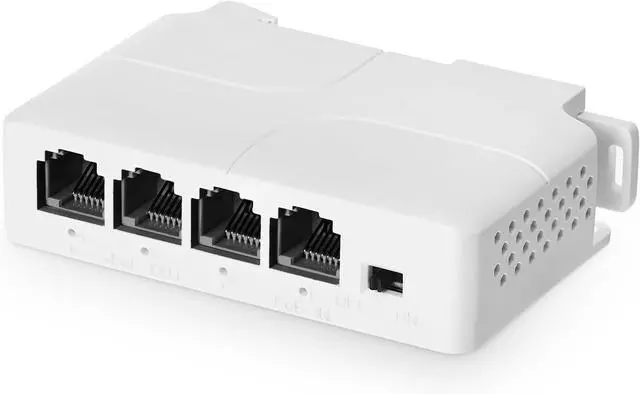

BUCIER PoE Passthrough Switch, 1 PoE in 3 PoE Out Extender, IEEE802.3af/at PoE Powered, 100Mbps Ethernet, din-Rail & Wall Mount

Be the first to review this product...
  • PoE PassthroughInclude 1 PoE In 3 PoE Out Ports, 10/100Mbps rate. Powered by PoE network, no AC power supply required
  • IEEE 802.3 af/at Support standard PoE, Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc. PoE pin: Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output: 1/2 (+), 3/6 (-)
  • Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*
  • Easy Install Support wall mount and din rail mount, smaller size save space, suitable for many positions
  • Widely Used Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost
+
+
Overview
Specs
Reviews
1

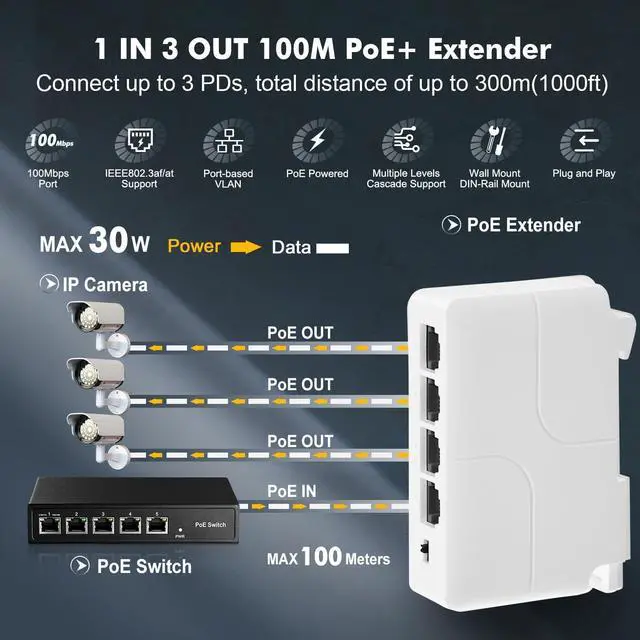

PoE+ extender provides 1 × 10/100Mbps PoE in port and 3 × 10/100Mbps PoE out ports for remote PoE/PoE+ device installation. The PoE extender auto-detects a PoE (15.4W) or PoE+ (30W) devices. The PoE extender features a convenient wall mountable and DIN mountable design for installation flexibility. Daisy-chain up to 3 units for a total PoE+ network extension of 300m (1000 ft.).

Features

Support active PoE cascade power supply and Ethernet data exchange.

Support IEEE 802.3af/at standard power supply.

Cooperate with High PoE Midspan, able to cascade level 2 PoE Extender (total power consumption <=25W), max transmission distance 300m.

1* RJ45 10/100M PoE power supply input.

3* RJ45 10/100M PoE power supply output for PoE devices.

Installation mode: Wall mountable, DIN rail mountable.

2

PoE Powered

The PoE extender is powered by PSE. No power needed. Extends a single PoE/PoE+ network connection up to 100m (328 ft.) for a remote PoE or PoE+ device installation.

3

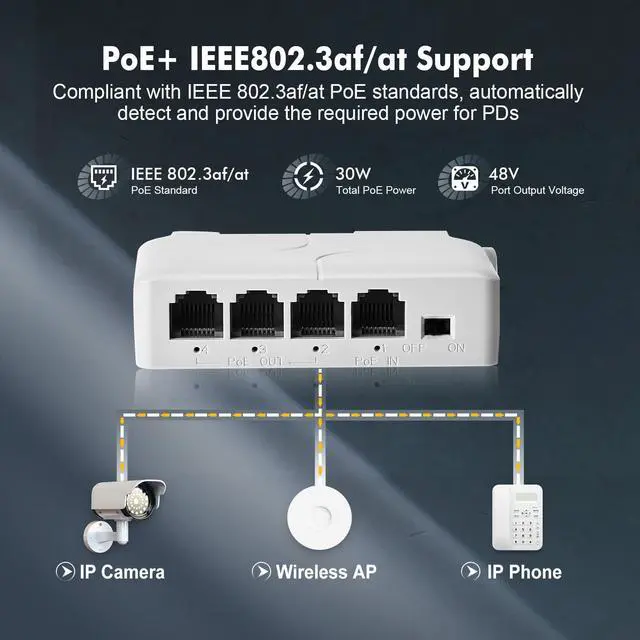

IEEE802.3af/at Support

1 in 3 out PoE extender compatible with IEEE802.3af/at standard, It determines and delivers the exact power supply to your devices with up to 30W power output.

4

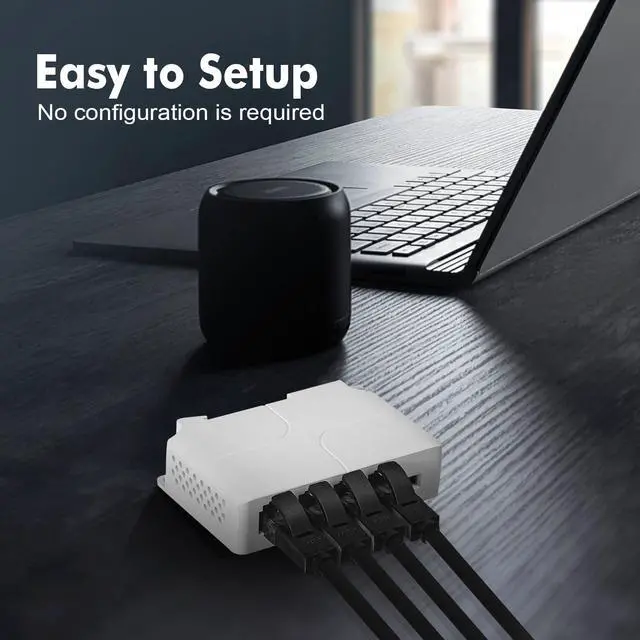

Easy to Use

Plug and play, No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device.

5

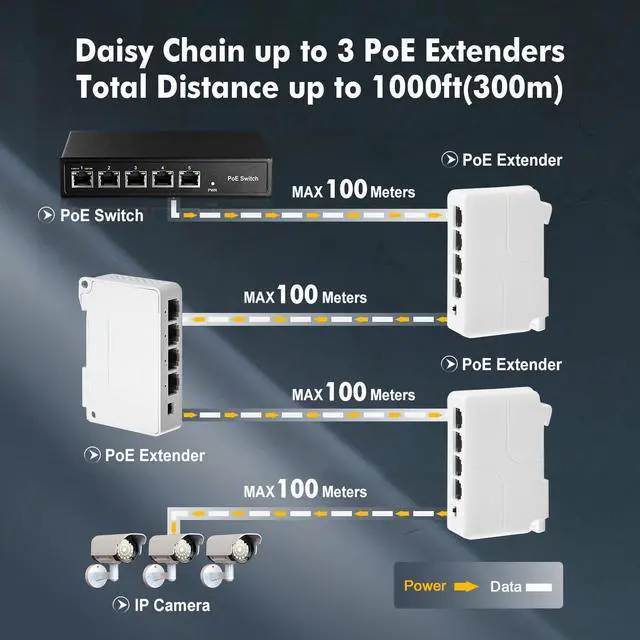

Daisy-Chain up to 3 PoE extenders

The PoE extender is powered by PoE Switch/PoE NVR/PoE Injector that comply with IEEE 802.3af/at Standards. It extends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE or PoE+ device.

Daisy chain up to 3 PoE extenders for a total PoE+ network extension of 300m (1000 ft.).

6

LED Indicator

You can quickly check working status and troubleshoot ports with led indicator on each port. Green(work well), Off(no power).

7

Compact Size

Compact dimension (82mm * 52mm * 23mm), This design makes these sensors interesting for room critical applications.

8

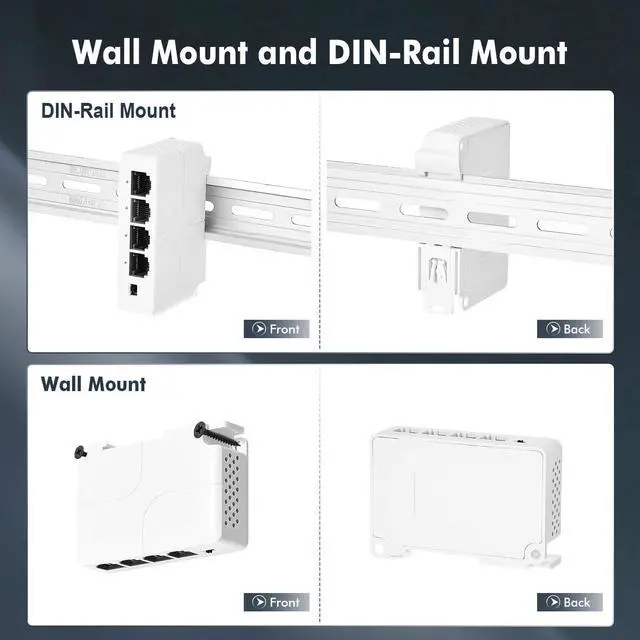

Wall & Din-rail Mountable

Ultra Compact PoE repeater can be mounted on a 35mm din rail and wall. perfect solution for a variety of environments.

PoE PassthroughInclude 1 PoE In 3 PoE Out Ports, 10/100Mbps rate. Powered by PoE network, no AC power supply required
IEEE 802.3 af/at Support standard PoE, Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc.
PoE pin:
Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-);
Output: 1/2 (+), 3/6 (-)
Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*
Easy Install Support wall mount and din rail mount, smaller size save space, suitable for many positions
Widely Used Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost
