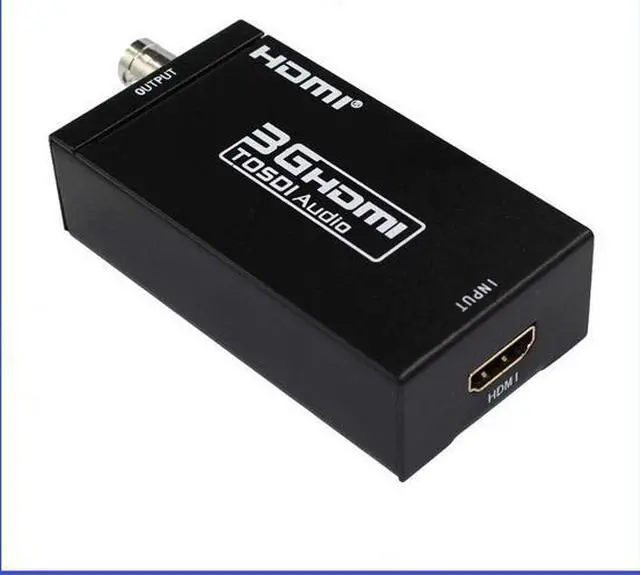

HDMI to SDI converter, video to SDI signal output wide voltage HDMI converter, SDI extender

Product Features:



Supports HDMI 1.3 version and is backward compatible with HDMI 1.2 / 1.1



2. Compatible with multiple
SDI signals: SD-SDI/HD-SDI/3G-SDI



3. The output effect is first-class and fully meets the professional requirements of the broadcasting room and nonlinear editing system



4. Industrial-grade power supply technology, supporting a wide voltage range of 5V to 12V



5. Strong stability, capable of continuous operation for 24 hours



6.480 i/576i to SD-SDI (SMPTE 259M-C, bit rate 270 Mbit/s)



7. Convert 720p/1080i to HD-SDI (SMPTE 292M, with a bit rate of 1.485 Gbit/s or 1.485 / 1.001 Gbit/s)



8.1080 p is converted to 3G-SDI (SMPTE 424M/425M-AB, with a bit rate of 2.970 Gbit/s, 2.970 / 1.001 Gbit/s)



9. Supports SDI output distances up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)



10. Synchronous output of audio and image



11. Simple and convenient to install



12. Multiple converters can be connected together to extend signals over long distances







Product parameters:

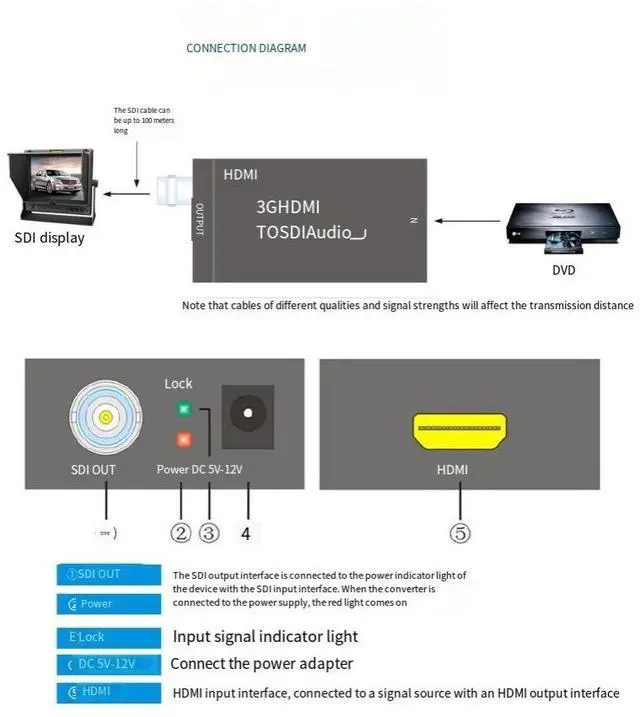

The input interface...... HDMI



Output interface...... BNC (SD-SDI/HD-SDI/3G-SDI)



HDMI input resolution... 480 i@ 59.94, 576 I, 720 p @ 50/ 59.94 /60, 1080 I @ 50/ 59.94 /60, 1080 p@ 23.98 /24/25/ 29.97 /30/50/ 59.94 /60



SDI transmission rate... 2.970 Gbit/s, 2.970 / 1.001 Gbit/s, 1.485 Gbit/s, 1.485 / 1.001 Gbit/s, 270 Mb/s



Power supply specifications...... DC 5V-12V



ESD body protection model..... ±8kV (air discharge), ±4kV (contact discharge)

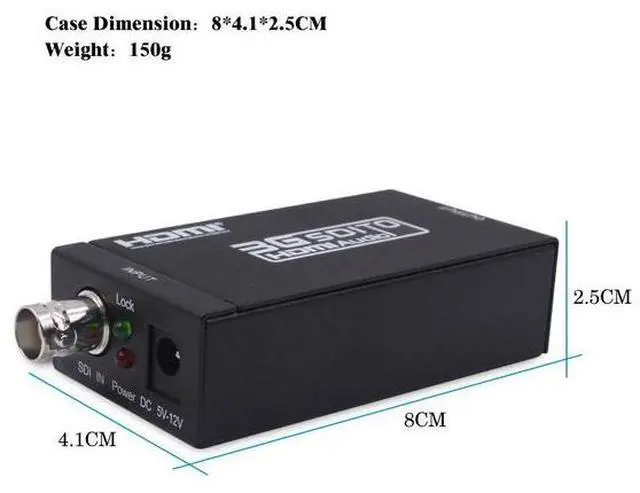

Size (length * width * height)...... 80mm x 41mm x 25 mm



The weight...... 150g



Working temperature...... 0°C ~ 40°C / 32°F ~ 104°F



Storage temperature...... -20°C ~ 60°C / -4°F ~ 140°F



Relative humidity...... 20-90% RH (no condensation)



Maximum power consumption...... 5W







Packaging content:



HDMI to SDI switch... 1PCS



DC 5 v power adapter... 1PCS



User manual... 1PCS
