HDMI Audio Extractor Converter HDMI to Optical Toslink SPDIF with 1M HDMI 1.4 Cable and 3.5mm Stereo Audio Splitter Adapter Support 4K x 2K 3D

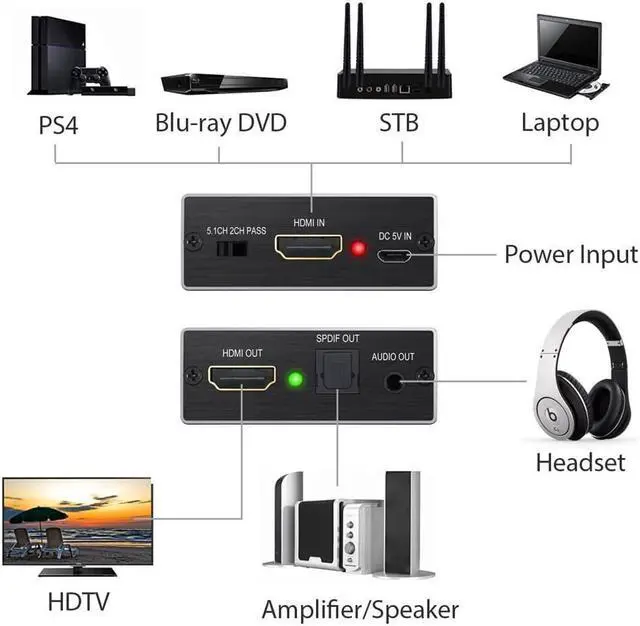

- WIDE COMPATIBILITY -- This HDMI Converter Can Be Used to Convert Digital Audio Video Signal to Analog Audio Video Signal via HDMI Input and HDMI & RCA L/R & SPDIF Output, Which is Suitable for Blu-ray/ DVD/ HD Player, Cable/Satellite Box, Apple TV, PS3/4, PC/Laptop, HD Camera, HD DVR, Etc.

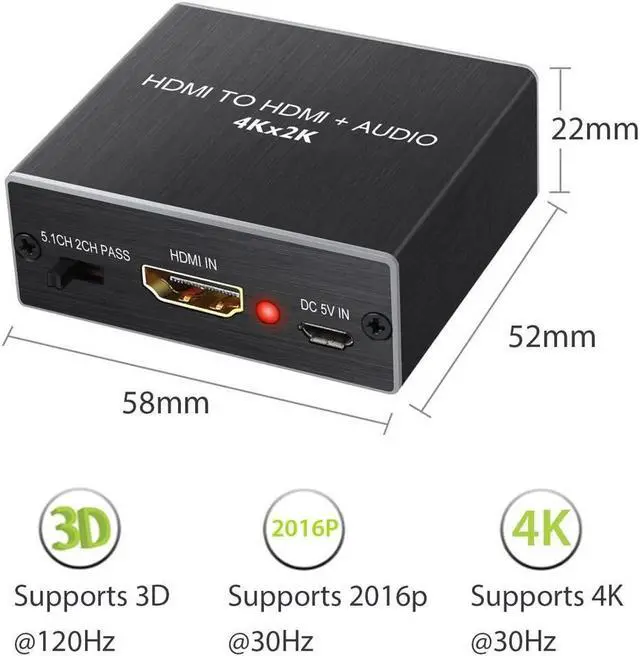

- SUPPORT 4K -- Input Resolution Is Up to 2016P@30Hz and Also Support 1080P (50/60Hz)/ 720P/ 1080i/ 720P/ 576P/ 576i/ 480P/ 480i/ 60fs/ 50/ 24. Support 3D.
- METAL CASE-- Aluminium Alloy Case with Gold Plated HDMI Sockets Provides Good Anti-Interference and Makes the Sound Pure and Clear.
- 3 MODE-- Pass Mode: HDMI to HDMI; 2.1CH Mode: HDMI to 2.1CH R/L RCA ; 5.1CH Mode: HDMI to SPDIF/Optical 5.1CH.
- PACKAGE --- Includes 1 x HDMI Audio Extractor, 1 x 3.5mm to RCA Stereo Audio Cable, 1 x HDM Cable (HDMI 1.4 Version, Support 4K), 1 x Micro USB Cable, 1 x User Manual
+
+
Overview
Specs
Reviews
HDMI Audio Extractor Provides 18 Months Warranty.
Overview: This 4K x 2K HDMI audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HDMI source. It can extract the digital audio signal embedded in HDMI source and convert it through 3.5 mm analog audio output and SPDIF output at the same time. The SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH.
Specification: Input

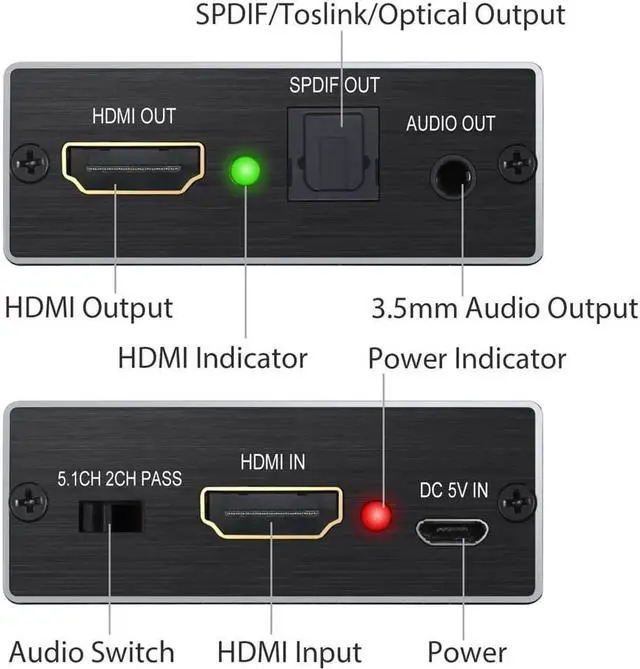

Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/ 5.1CH )
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5 mm Jack
HDMI resolution: 4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit, 36bit
Max bandwidth: 225MHz
Max baud rate: 6.75G bps
Max working current: 190mA Three switing audio

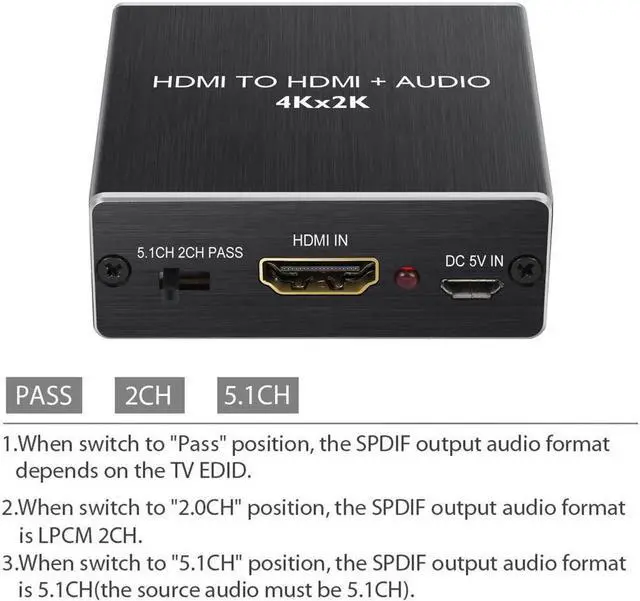

EDID settings:
Pass: HDMI pass mode. The audio and video can be convertered from the HDMI output. SPDIF output audio both 5.1 ch and 2.0 ch (it depends on the audio source channel) and L/R will output audio with 2.0 ch.
2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI input and the HDMI/ SPDIF and L/R output stereo audio.
5.1CH Mode: Extract 5.1 Dolby Digital / DTS and output via HDMI/ SPDIF/Analog.

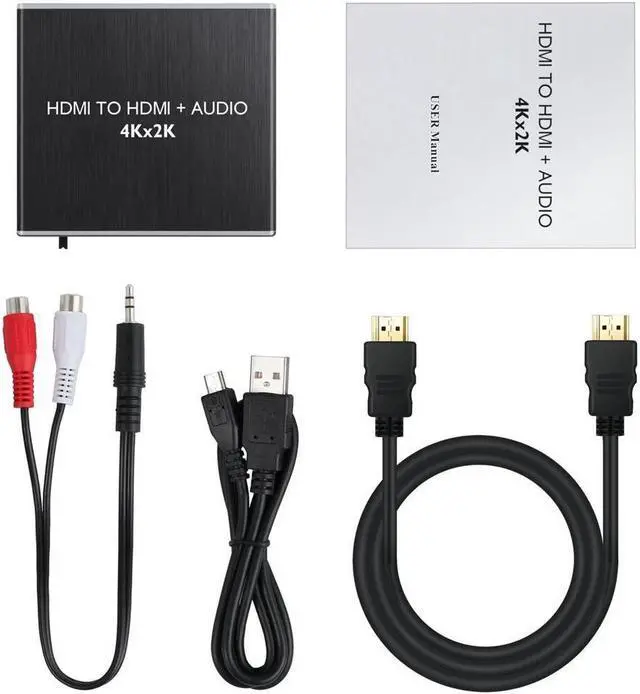

Package Contents: 1 X HDMI Audio Extractor 1 X 3.5 mm to RCA Stereo Audio Cable 1 X Micro USB cable 1 X User Manual 1 X 1M HDMI 1.4
Overview: This 4K x 2K HDMI audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HDMI source. It can extract the digital audio signal embedded in HDMI source and convert it through 3.5 mm analog audio output and SPDIF output at the same time. The SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH.
Specification: Input
Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/ 5.1CH )
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5 mm Jack
HDMI resolution: 4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit, 36bit
Max bandwidth: 225MHz
Max baud rate: 6.75G bps
Max working current: 190mA Three switing audio
EDID settings:
Pass: HDMI pass mode. The audio and video can be convertered from the HDMI output. SPDIF output audio both 5.1 ch and 2.0 ch (it depends on the audio source channel) and L/R will output audio with 2.0 ch.
2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI input and the HDMI/ SPDIF and L/R output stereo audio.
5.1CH Mode: Extract 5.1 Dolby Digital / DTS and output via HDMI/ SPDIF/Analog.
Package Contents: 1 X HDMI Audio Extractor 1 X 3.5 mm to RCA Stereo Audio Cable 1 X Micro USB cable 1 X User Manual 1 X 1M HDMI 1.4
