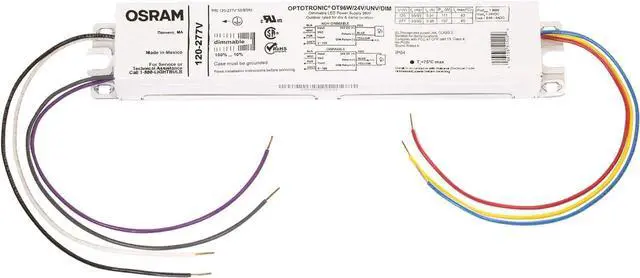

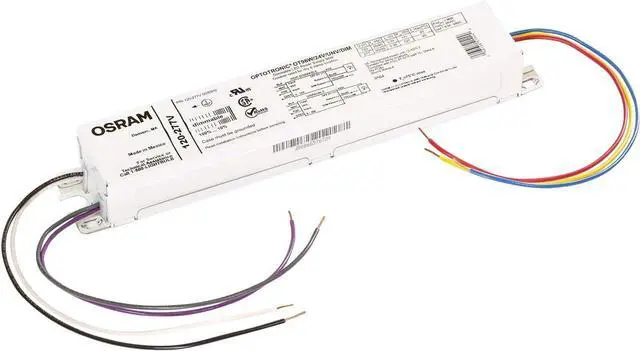

Osram 51520 Optotronic 96W 24V DC 120/277V AC 50/60Hz Constant Voltage Dimmable LED Driver OT 96W/24V/UNV/DIM
- OPTOTRONIC Electronic 24VDC Constant Voltage
- Constant Voltage, 0-10V Dimmable LED Driver
- Input Voltage: 120-277VAC 50/60 Hz
- Pout: 96W, Vout: 24VDC, Iout: 0.04-4ADC
- UL Class 2 output for safe operation
+
+
Overview
Specs
Reviews
OPTOTRONIC Electronic 12VDC & 24VDC Constant Voltage LED Power Supplies
Osram 51520 Optotronic 96W 24V DC 120/277V AC 50/60Hz Constant Voltage Dimmable LED Driver OT96W/24V/UNV/DIM
Product Features
General Description
96-Watt
24-Volt LED power supply
0-10V dimmable
Install in accordance with National Electric Codes
Class A Sound Rating.
Input Frequency: 50/60Hz.
Damp and dry location rated
UL recognized Class 2 Power Supply
UL 1310 recognized
Nominal Total Max Wattage: 100 W
Nominal Voltage: 120-277 V
Power Factor: > 0.95
Product Dimensions (L x W x H): 9.48" x 1.68" x 1.17"
Product Weight: 19.6 oz
Quantity: 1
Maximum Case Temperature: 75ºC
Product Family Features
Wet and damp-rated designs available for use in outdoor applications
Wide input voltage range: 120-277Vac (select models)
Broad ambient temperature range for use in extreme application conditions
Electronically stabilized output voltage with low-line ripple
Integrated dimming (select models)
Short circuit, overload and overheat protection for sustained performance
High-power factor and efficiency
Compact enclosures for variety of applications and fixture designs
UL Class 2 output for safe operation
Exceptional line and load regulation
Areas of Application: Ambience lighting inside furniture, Backlighting, Effect lighting, Compact installations, General lighting, Panel lighting, Low & medium power applications, Path and roadway marking, Signs, Step & seat marking, Wall washing
Osram 51520 Optotronic 96W 24V DC 120/277V AC 50/60Hz Constant Voltage Dimmable LED Driver OT96W/24V/UNV/DIM
Product Features
General Description
96-Watt
24-Volt LED power supply
0-10V dimmable
Install in accordance with National Electric Codes
Class A Sound Rating.
Input Frequency: 50/60Hz.
Damp and dry location rated
UL recognized Class 2 Power Supply
UL 1310 recognized
Nominal Total Max Wattage: 100 W
Nominal Voltage: 120-277 V
Power Factor: > 0.95
Product Dimensions (L x W x H): 9.48" x 1.68" x 1.17"
Product Weight: 19.6 oz
Quantity: 1
Maximum Case Temperature: 75ºC
Product Family Features
Wet and damp-rated designs available for use in outdoor applications
Wide input voltage range: 120-277Vac (select models)
Broad ambient temperature range for use in extreme application conditions
Electronically stabilized output voltage with low-line ripple
Integrated dimming (select models)
Short circuit, overload and overheat protection for sustained performance
High-power factor and efficiency
Compact enclosures for variety of applications and fixture designs
UL Class 2 output for safe operation
Exceptional line and load regulation
Areas of Application: Ambience lighting inside furniture, Backlighting, Effect lighting, Compact installations, General lighting, Panel lighting, Low & medium power applications, Path and roadway marking, Signs, Step & seat marking, Wall washing
