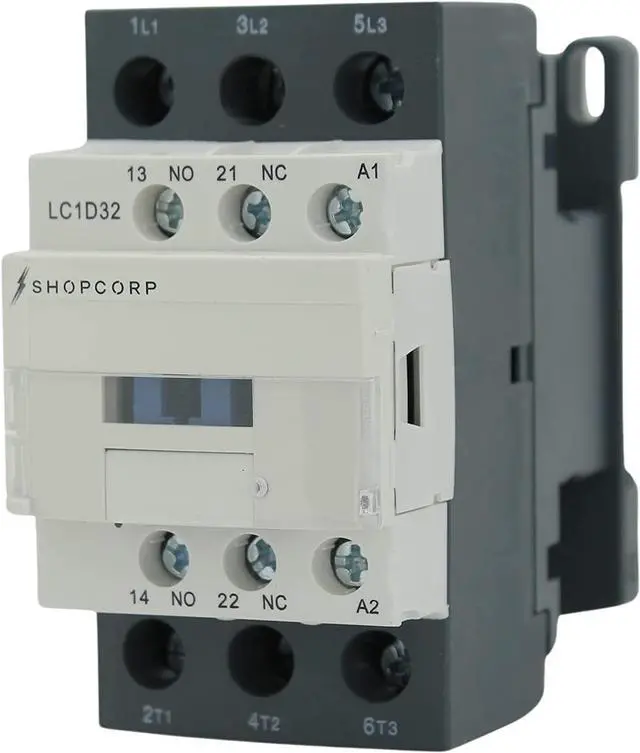

3 pole Contactor 30 Amp Normally Open IEC 660V Switch, Auxiliary 1NO/1NC - 220 / 240VAC Coil Inductive 32A and Resistive 50A, AC Contactor - with Mounting Base for DIN Rail

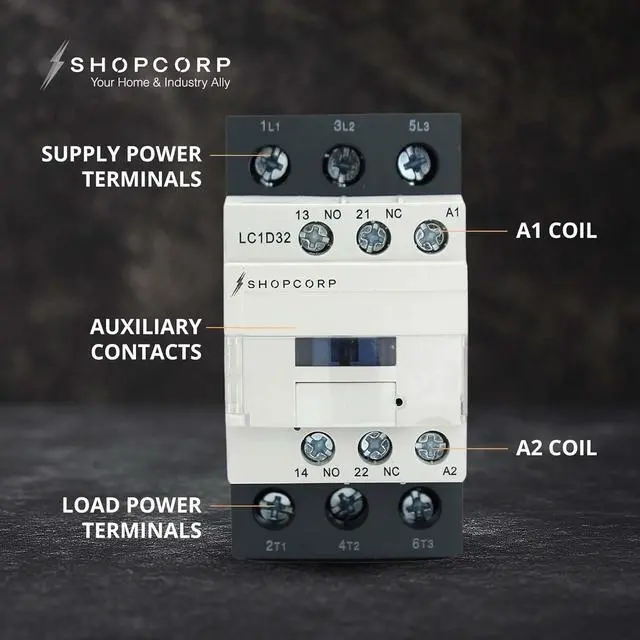

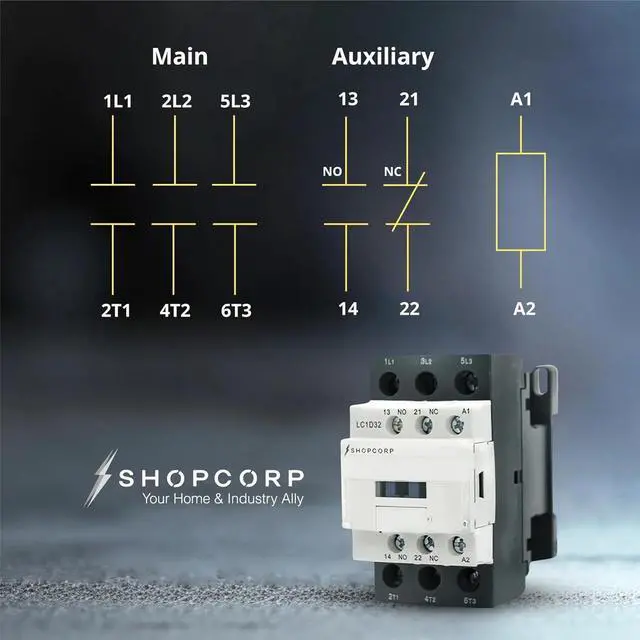

3 Pole Contactor 30Amp 3 Pole Normally Open (NO) AC contactor for home and industrial uses, with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts and a 220/240V coil. Includes 20a contactor, universal circuit control, and long-distance connecting and breaking circuit. Compatible with 35mm DIN rail mounts.
HVAC Parts Applications Ideal for lighting, motor, or switching tasks. AC-1 for resistance furnaces, incandescent lamps, or electric heaters; and AC-3 for air conditioners, compressors, or fans. Perfect for HVAC contactor. Complies with IEC/EN standards for reliable installation.

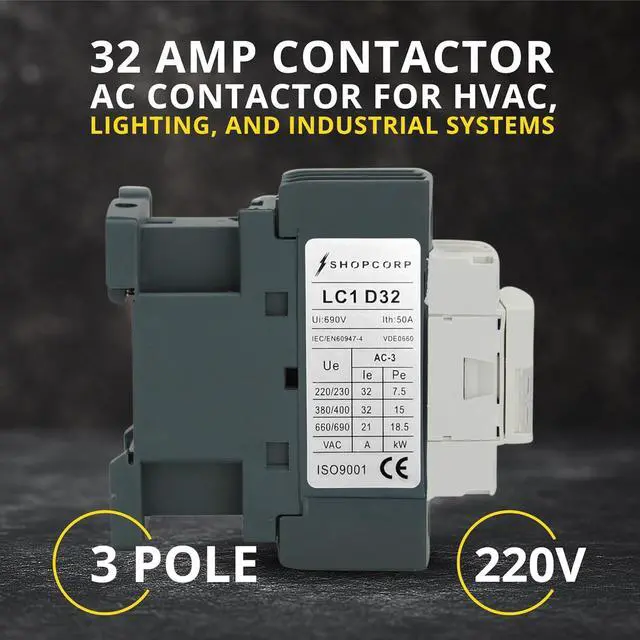

Coil Voltage and Amp Load Motor / Inductive Load: 32Amp. Incandescent / Resistive Load: 50Amp. Power Lug Terminal Capacity AWG # 4. Suitable for various 3 pole contactor needs.

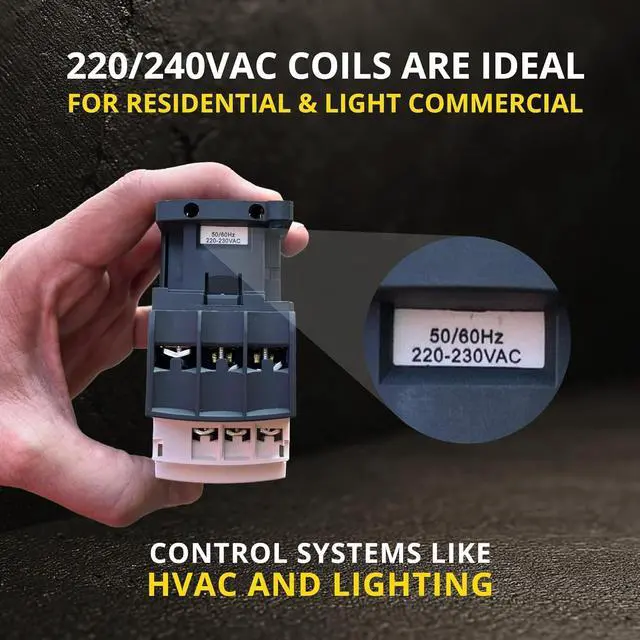

220v Contactor Voltage: AC 220V/240V, 50/60Hz. Load: 70VA Inrush and 7.5VA Sealed. Ideal for use as a 220v contactor in a/c contactor setups.

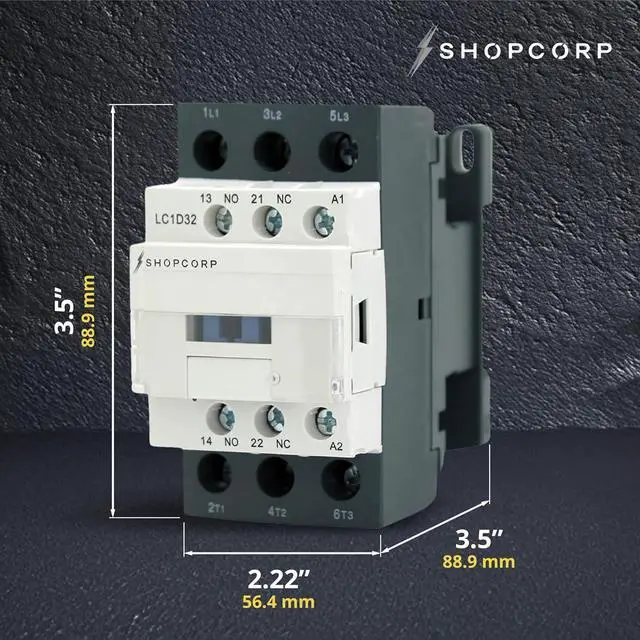

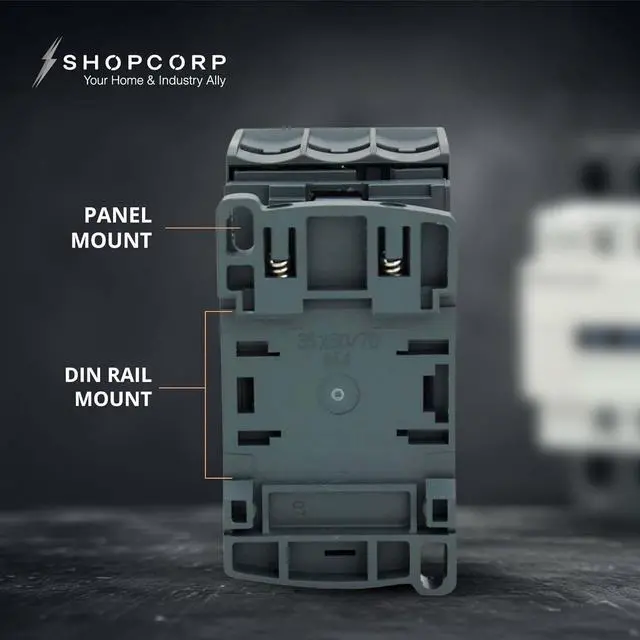

Contactor AC Dimensions (approx.) 2.22" x 3.50" x 3.50" / 56.4 x 88.9 x 88.9 mm (Width x Height x Depth). Designed for easy DIN rail mount installation.
