4 Pole Contactor 120v Coil Normally Open (NO) 60 amp IEC 400V AC Contactor - 110/120VAC Coil, Motor Load 40a and Lighting Load 60A, Silent Operation with Mounting Base for DIN Rail

Contactor 120v coil 63Amp 4 Pole Normally Open (NO) AC contactor for home and industrial uses with 110/120VAC coil. Compatible with 35mm DIN rails and equipped with a power status indicator. Complies with IEC/EN standards for consistent and reliable installation. Ideal as a compressor contactor.
HVAC Parts Applications Suitable for lighting, motor, or switching tasks. AC-1 for resistance furnaces, incandescent lamps, or electric heaters; and AC-3 for air conditioners, compressors, or fans. Perfect for HVAC contactor and air conditioner contactor applications. Features an energy-saving, silent, and no-humming coil. Ideal for use in HVAC, motor, heating, and refrigeration.
Coil Voltage and Amp Load Inductive/Motor Load: 40Amp. Resistive/Incandescent Load: 60Amp. DC Load: 30Amp @ 24VDC. Compatible with 15 Amp, 20 Amp, 30 Amp, 32 Amp, 40 Amp, 50 Amp, 60 Amp, and 63 Amp loads. Power Lug Terminal Capacity AWG # 4. Equipped with heavy lug terminals and push-ons for high voltage connections. Suitable as a 50a contactor and 4 pole contactor.

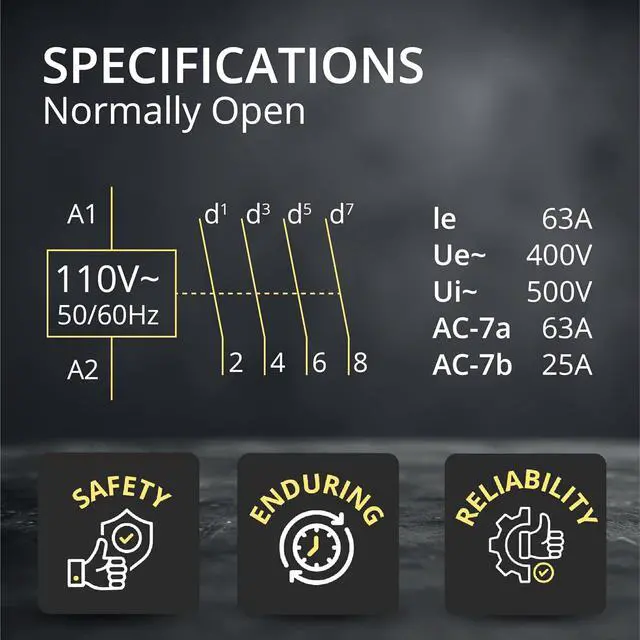

4 Pole Contactor Contactor IEC 400V. Coil Voltage: 110/120VAC, 50 Hz. Coil load: Inrush 52VA, Sealed 10VA. Ideal for use as a contactor 120v coil and 120v contactor.

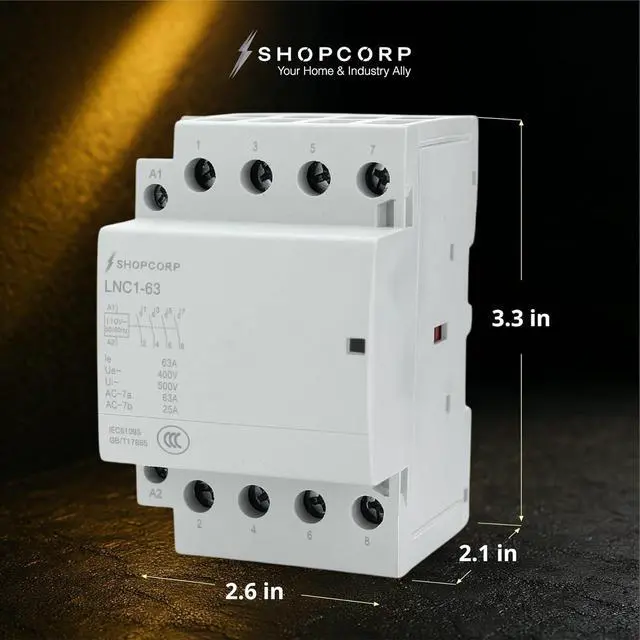

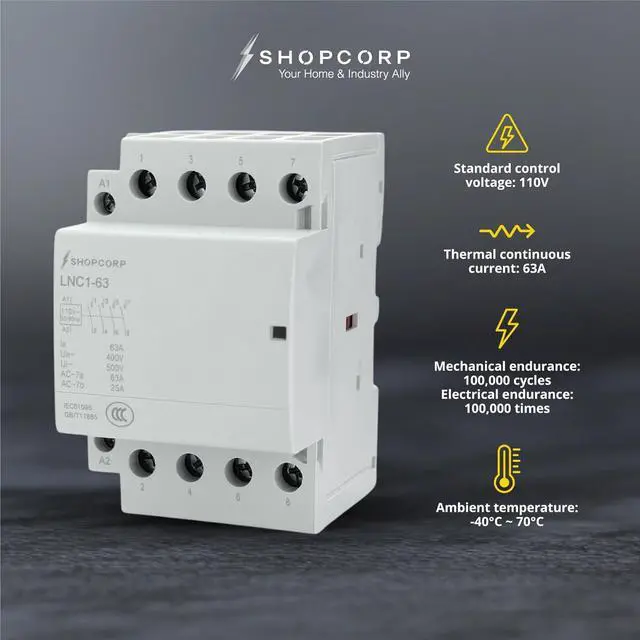

Contactor AC Details IEC AC Rate: AC-1; 10 kW, AC-3; 8 kW. Electrical strength: 4 kV. Operating Temperature: -40+70 °C (-40+158 °F). Dimensions (approx.): 54 x 85 x 66 mm / 2.1'' x 3.3'' x 2.6'' (Width x Height x Depth). Designed for easy DIN rail mount installation.
