$159.99
Ships from Hong Kong.
Sold by Chinathru Trading Co., Limited
Shipped by Chinathru Trading Co., Limited
Meet Your Seller

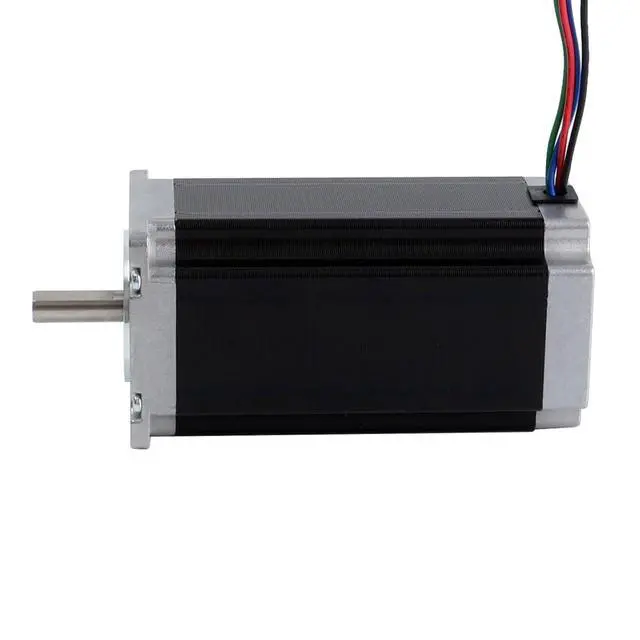

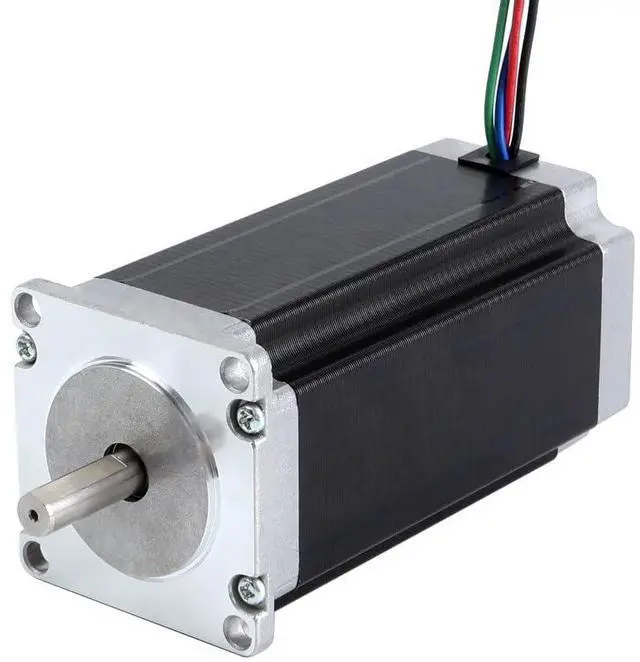

STEPPERONLINE Nema 23 Stepper Motor 8mm Shaft Bipolar 3Nm(425oz.in) 4.2A 57x57x113mm 4 Wires CNC Engraving Machine

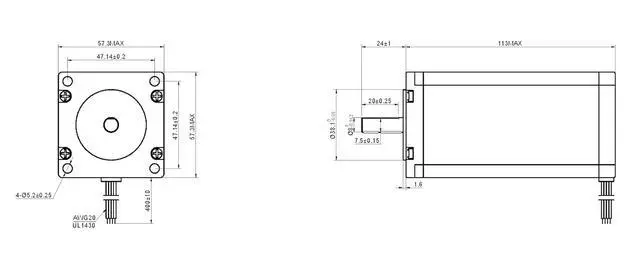

- 8mm shaft diameter nema 23 stepper motor, 113mm Motor Length
- Step angle 1.8deg, 200 steps/revolution
- 4.2A Rated Current/phase, 3.0Nm Holding Torque
- 0.88ohms Phase Resistance, 3.4mH±20%(1KHz) Inductance
+
+
Overview
Specs
Reviews
8mm shaft diameter nema 23 stepper motor, 113mm Motor Length
Step angle 1.8deg, 200 steps/revolution
4.2A Rated Current/phase, 3.0Nm Holding Torque
0.88ohms Phase Resistance, 3.4mH±20%(1KHz) Inductance
Step angle 1.8deg, 200 steps/revolution
4.2A Rated Current/phase, 3.0Nm Holding Torque
0.88ohms Phase Resistance, 3.4mH±20%(1KHz) Inductance
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 90 days
- This item is covered by Chinathru Trading Co., Limited Return Policy
