BTF-LIGHTING C05RF LED Tuya Controller Support PWM 5050SMD FCOB COB RGBCCT (+ R G B C W) 6pin LED Strip String Bulb Compatible with WR02RF RC03RFB RF Remote DC5V/12V/24V Max 12A Indoor Use Only

Compatible lighting: Only support PWM 5050SMD 3528SMD 5630SMD RGBCCT FCOB COB RGBCCT 6 wires (+ R G B C W) LED strip. CANNOT work with SPI LED strip light with IC, such as WS2811, WS2812B, WS2813, WS2814, WS2815, SK6812 etc. Power: 6A/Channel Total power max 12A.DC5V 60W max.DC12V 144W max. DC24V 288W max.
Two operating methods1. Must work with matching RF remote control. 2. Must work with Tuya Gateway/Bridge. Without RF Remote or Tuya Gateway, the controller will not be able to work. 2.4GHz RF remote control: WR01RF, RF03RFB. Tuya Gateway: GW01W.

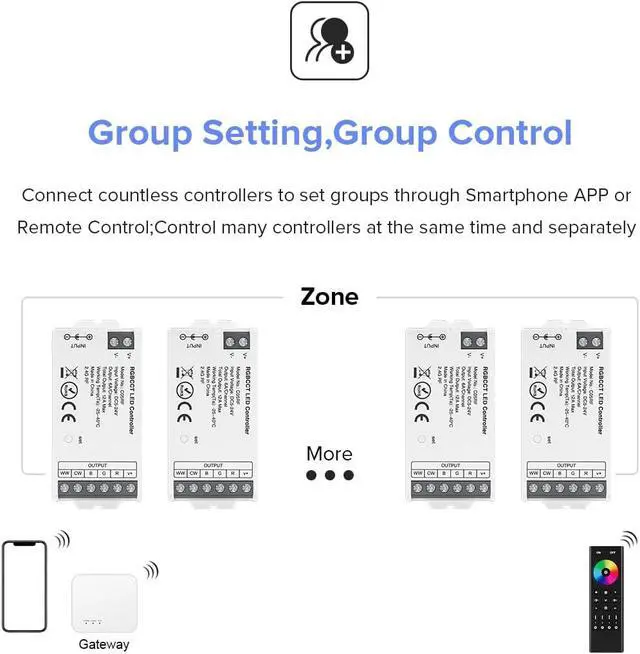

Suitable for the project: 1. Multi-zone control, multiple controllers required. 2.Need 2.4GHz RF Remote Control or TuyaSmart SmartLife APP WiFi Control. 3. No Bluetooth or Wi-Fi required. 4. Need Alexa or Google home remote voice control. 5.Cost effective LED project.

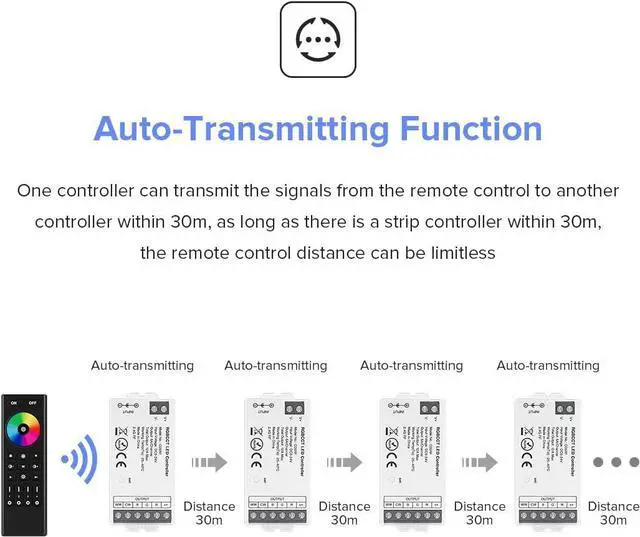

Automatic Transmitting Sync Function One controller can transfer the signal from the remote to the other controller within 30 meters. As long as there is an LED strip controller within 30 meters, the remote control distance can be unlimited. Auto-Sync function.Different controllers can work synchronously when started at different times, controlled by the same remote control in the same dynamic mode and at the same speed.
Works with Tuya Gateway, but Tuya Gateway is not includedWork with GW01W Wi-Fi+Bluetooth Dual Mode Tuya Gateway/Bridge. Support Smart Life and Tuya Smart APP. Can be compatible with third-party voice control., Such as Alexa and Google home. Timmer setting, Device sharing, Tap to run, Automation, Do Not Disturb mode.
Package Contents: 1 x C05RF Tuya controller. Note: There is no RF remote or gateway.Remote and gateway need to be purchased separately.
