VEVOR 3/4HP Furnace Blower Motor, 208/230V 3.85Amps, 1075RPM 5 Speeds, CW/CCW Rotation, 48 Frame 4.8" Shaft Length, 10F/450V Capacitor + 11" Hold Hoop

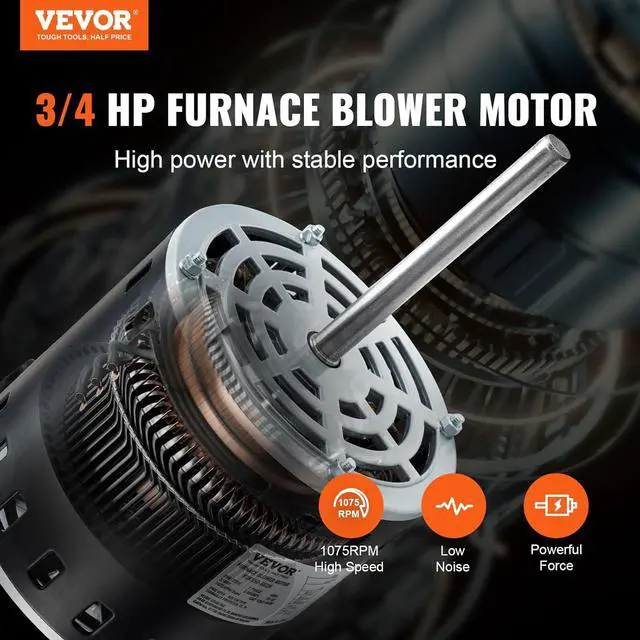

3/4HP Furnace Blower Motor: This motor has a power rating of 3/4 HP and operates at 1075 RPM with 5 different speeds. It requires a Full Load Amps of 3.85A and operates on a power supply of 208-230V. It is designed for direct-drive blower motors used in residential and light commercial indoor furnaces, air handlers, and packaging systems.
Frame Type: The motor belongs to the 48 Frame Size category and features a 0.5" shaft diameter with a shaft length of 4.8". It operates with strong and powerful performance, running at high speed while maintaining low noise levels.

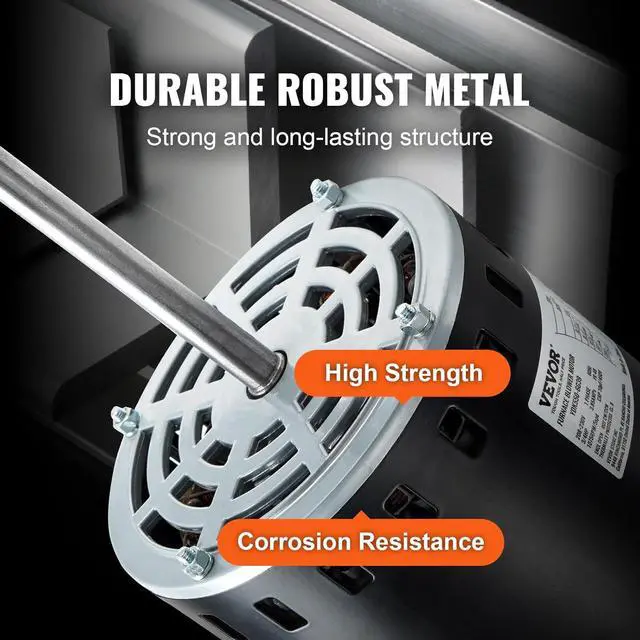

Safety and Durability: The motor is housed in a sturdy metal casing that exhibits high strength and corrosion resistance. This robust construction effectively protects the engine, ensuring a longer service life.

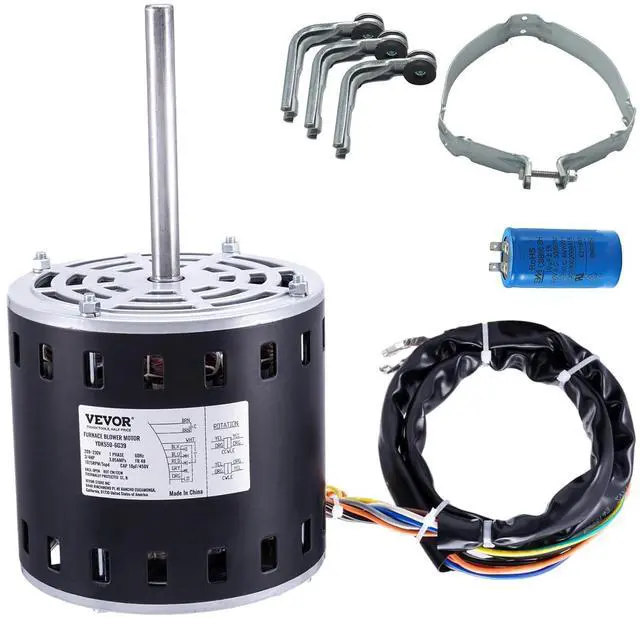

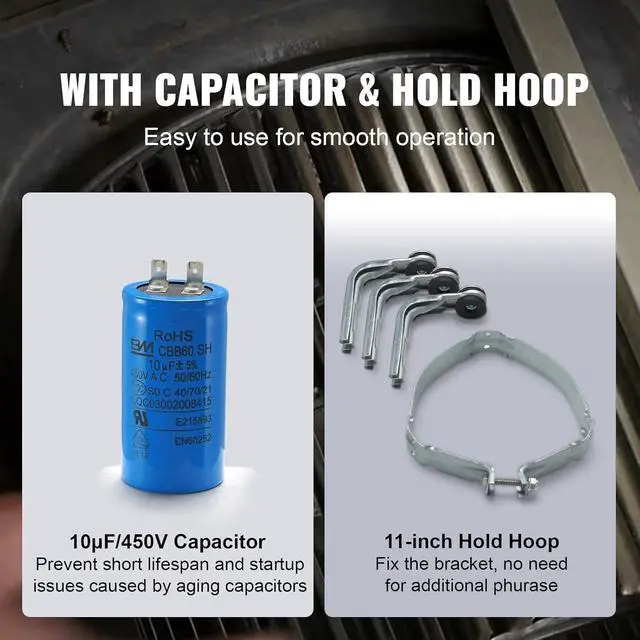

Convenient Accessories Included: The motor comes with convenient accessories, including the CBB60 10F/450V capacitor. This capacitor helps prevent issues such as a shortened lifespan, overheating, and motor startup failure caused by an old capacitor. Additionally, an 11-inch hold hoop is provided as an installation bracket, reducing the need for additional mounting hardware purchases.

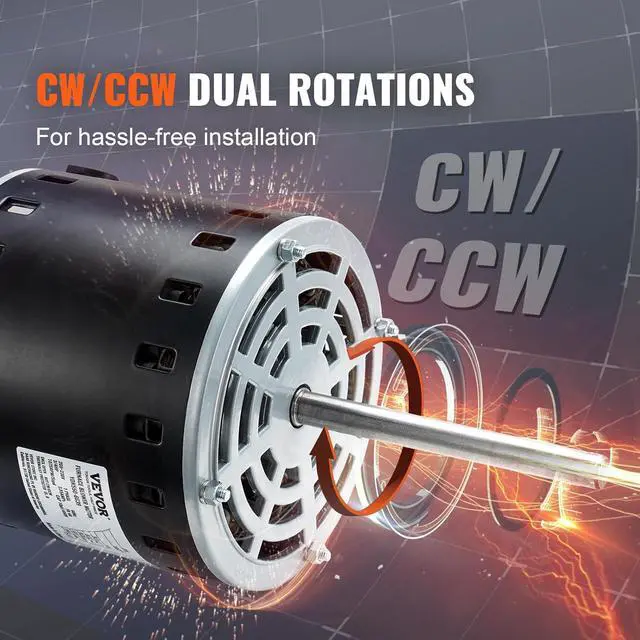

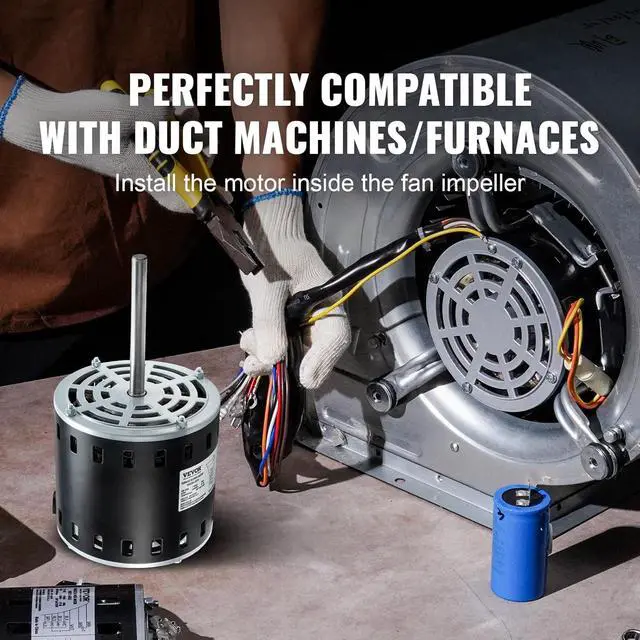

Dual Rotation Direction: The motor is reversible, allowing for both clockwise (CW) and counterclockwise (CCW) rotation. This feature makes the installation process much easier. It is suitable for air conditioning duct systems and furnaces in homes of various sizes, effectively circulating cool or warm indoor air.
