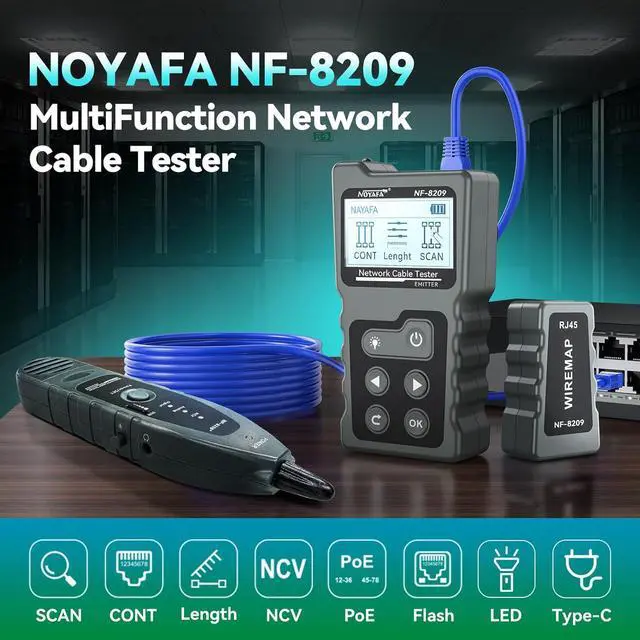

NOYAFA NF-8209 Network Cable Tester, Ethernet Cable Wire Tester with POE & NCV for CAT5/CAT6 Wire Tracer, Length Test, RJ45 Network Tester Kit for Cable Tracer Telephone Line Finder Home Repair

Multi-function Network TesterNOYAFA NF-8209 multi-function network tester can detect PoE voltage, power, PSE standard power supply mode, and has functions such as cable length measurement, POE test, NCV, continuity test, digital cable scanning, RJ45, RJ11, CAT5/5E/CAT6/6A cables and network cabling. Whether it is home network cabling installation and maintenance, data center troubleshooting, or network cable inspection in enterprises and industrial facilities, it can be easily completed

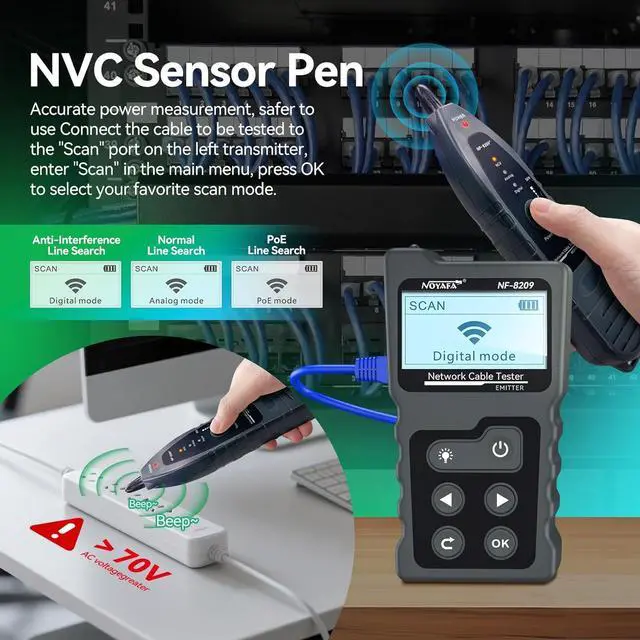

Digital Cable Scanner] NOYAFA NF-8209 LAN Cable Tester combines AC filtering, PoE mode and analog signals in one network tone generator and probe. It provides three cable tracing modes, such as AC filter mode, analog mode and PoE mode. Main functions: Detects POE voltage, current, power, PSE standard, power supply mode, and the tester automatically scans the connection status of CAT5, CAT5E, CAT6 and CAT6A cables

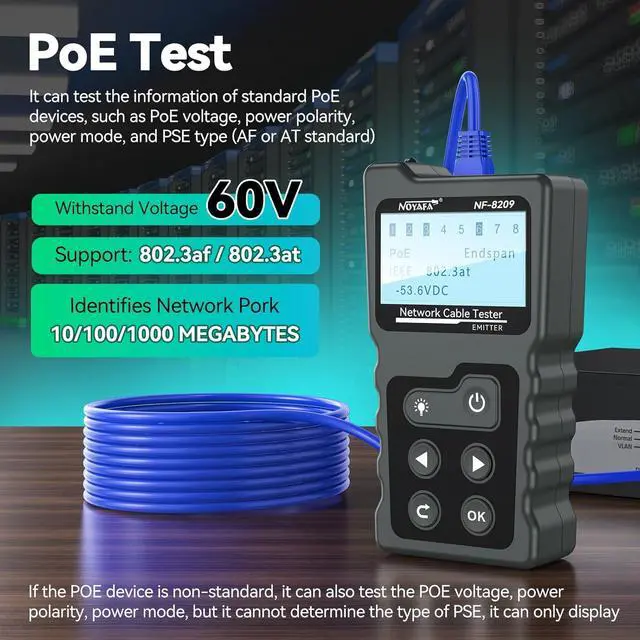

POE Test and Hub FlashingNF-8209 Ethernet Cable Tester can identify which pins are supplying power and detect the voltage, identify the type of PSE (at/af standard). 60V DC withstand voltage design, say goodbye to the trouble of cable burnout, and locate the network port by the flashing port indicator on the hub/switch. Applicable to 10M/100M hub/switch. Supports both 802.3af and 802.3at standards

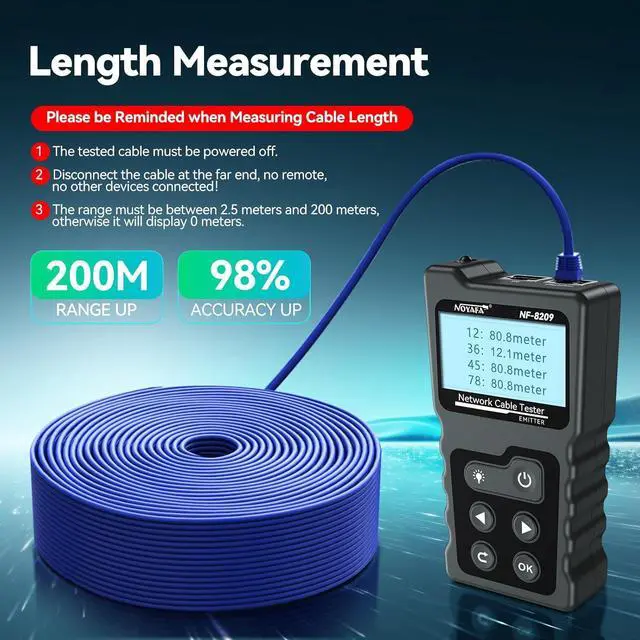

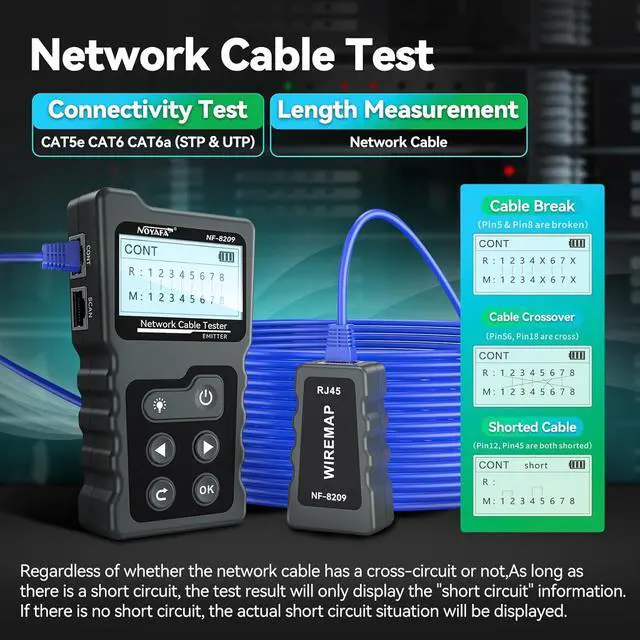

Ethernet cable testerNF-8209 Ethernet tester can measure the length of network cable, range up to 200M. locate the breakpoint fault distance and network cable fault point, save time and cost. Insert the two ends of the test cable into the transmitter and remote adapter socket respectively, you can test the network cable for faults, breaks, shorts, poor contact and so on. Support shielded network cable, can test the physical status of STP/UTP network cable
NCV DetectionNOYAFA NF-8209 Non-Contact Voltage (NCV) Detection. The receiver (audio probe) can be used to detect the presence of AC voltage. Certified. Passed RoHS, FCC and CE compliance tests. The transmitter is a USB C charging version. The receiver requires a 9V battery. Please note that due to logistics reasons, the battery is not included in the package. Regular use can also be used as a holiday gift, for indoor and outdoor activities, testing and maintaining communication networks
128x64 pixel graphic LCD display. The NF-8209 network cable tester is equipped with a bright and clear LCD display, which makes it easier to use. You can easily identify and track down any cable problems just by looking at the clear and bright tester displa
