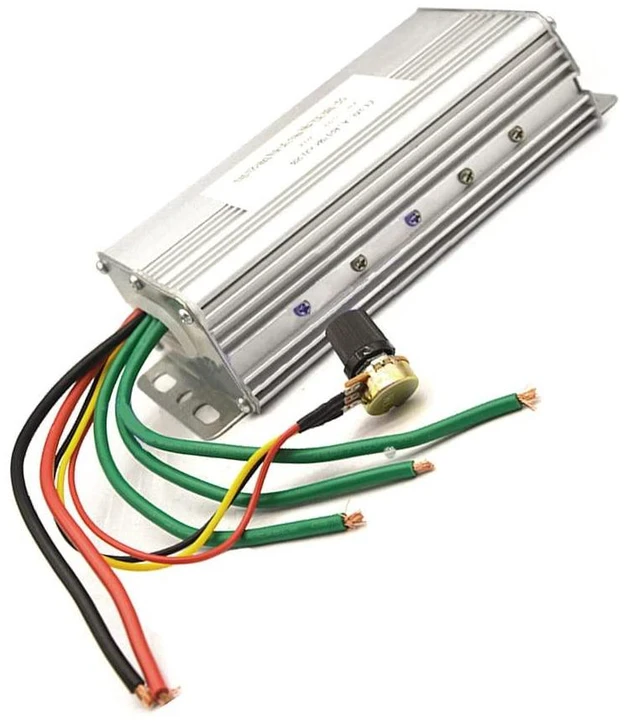

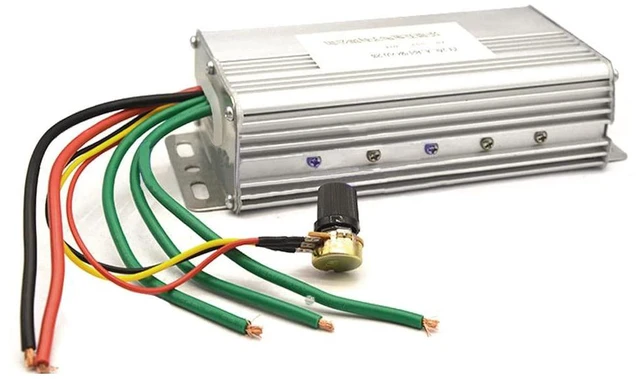

DC Brushless Motor Speed Controller, 30A 1650W Regulation Switch Driver Board, Motor Electric Governor, DC 18V 24V 36V 48V No Hall
- Wiring: Red Line: Power Positive; Black Line: Power Negative; Blue Line: DC Brushless motor
- Input voltage: DC18-55V; Output voltage: Load Linear
- Output Current: 0-28A; Overcurrent protection: Yes (30A); Power: MAX 1650W
- Suitable Motor: DC Brushless motor

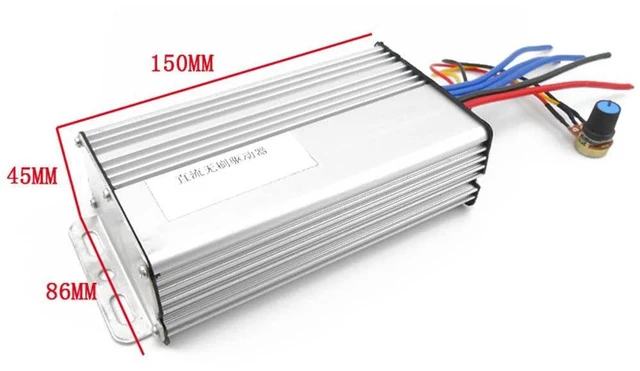

- Module size: L*W*H 150MM*86MM*45MM
+
+
Overview
Specs
Reviews
Wiring: Red Line: Power Positive; Black Line: Power Negative; Blue Line: DC Brushless motor
Input voltage: DC18-55V; Output voltage: Load Linear
Output Current: 0-28A; Overcurrent protection: Yes (30A); Power: MAX 1650W
Suitable Motor: DC Brushless motor
Module size: L*W*H 150MM*86MM*45MM
Input voltage: DC18-55V; Output voltage: Load Linear
Output Current: 0-28A; Overcurrent protection: Yes (30A); Power: MAX 1650W
Suitable Motor: DC Brushless motor
Module size: L*W*H 150MM*86MM*45MM
