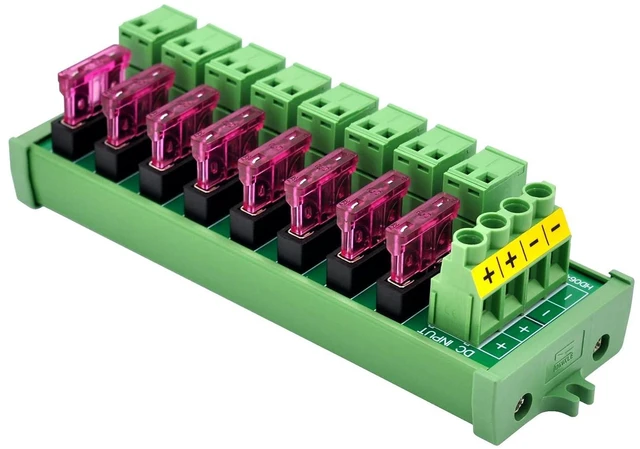

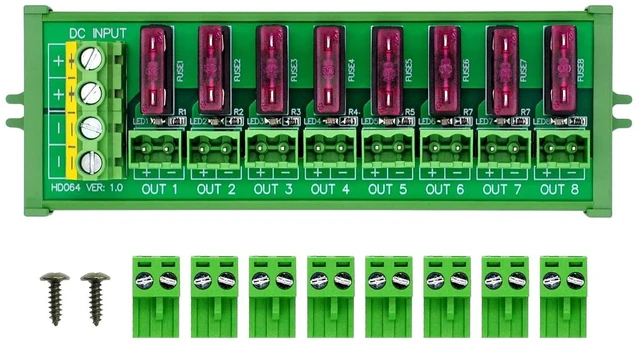

Screw Mount DC 5-32V 8 Channel Pluggable Top Wiring Terminal Block Power Distribution Fuse Module, HCDC HD064VP
- Operating voltage DC 5 to 32V. Maximum total input / output current 20 Amp.

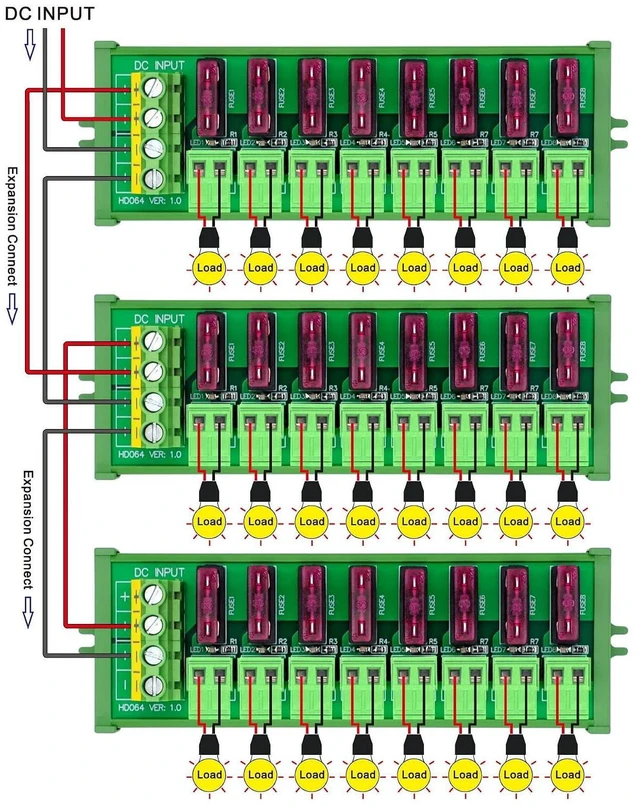

- Input: Maximum current 20 Amp for per position. Double positions + and - polarity terminal, support power supply expansion connect to other modules. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG, stripping length 8mm, Metric M3 slotted screw.

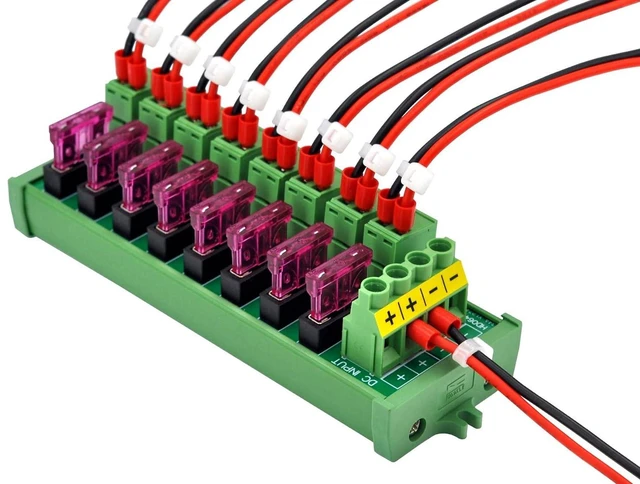

- Output: 8 position pluggable top wiring terminal blocks. Maximum current 3 Amp for per position (the terminal highest working current can support up to 10 Amp, but factory pre-installed fuse value is 3 Amp, if you want more output current, please change the fuse). Pin pitch 5.08mm/0.2", wire size 28 - 12 AWG, stripping length 7mm, Metric M2.5 slotted screw.

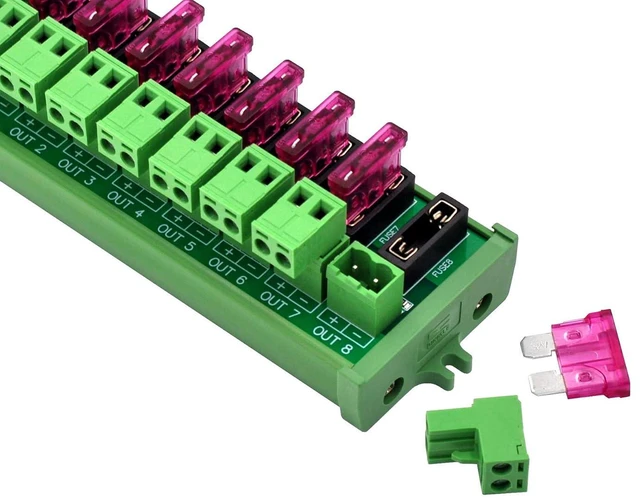

- Pluggable fuse holder, can support medium blade ATO / ATC fuse. Each output channel has a green LED indicator, when the fuse is blown or pulled out, the LED indicator will be off.

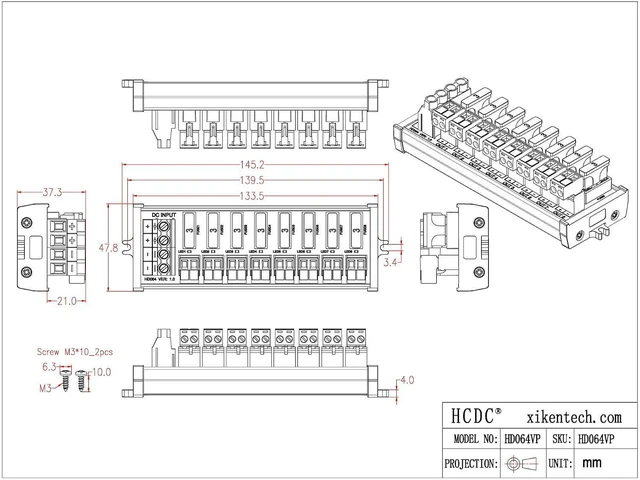

- High quality fireproof nylon material mount carrier, included two M3 x 10mm wood screws, you can easily mount it on a wooden board. FR-4
+
+
Overview
Specs
Reviews
Operating voltage DC 5 to 32V. Maximum total input / output current 20 Amp.
Input: Maximum current 20 Amp for per position. Double positions + and - polarity terminal, support power supply expansion connect to other modules. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG, stripping length 8mm, Metric M3 slotted screw.
Output: 8 position pluggable top wiring terminal blocks. Maximum current 3 Amp for per position (the terminal highest working current can support up to 10 Amp, but factory pre-installed fuse value is 3 Amp, if you want more output current, please change the fuse). Pin pitch 5.08mm/0.2", wire size 28 - 12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
Pluggable fuse holder, can support medium blade ATO / ATC fuse. Each output channel has a green LED indicator, when the fuse is blown or pulled out, the LED indicator will be off.
High quality fireproof nylon material mount carrier, included two M3 x 10mm wood screws, you can easily mount it on a wooden board. FR-4 fiberglass dual copper layers PCB. UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified screw mount carrier.
Input: Maximum current 20 Amp for per position. Double positions + and - polarity terminal, support power supply expansion connect to other modules. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG, stripping length 8mm, Metric M3 slotted screw.
Output: 8 position pluggable top wiring terminal blocks. Maximum current 3 Amp for per position (the terminal highest working current can support up to 10 Amp, but factory pre-installed fuse value is 3 Amp, if you want more output current, please change the fuse). Pin pitch 5.08mm/0.2", wire size 28 - 12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
Pluggable fuse holder, can support medium blade ATO / ATC fuse. Each output channel has a green LED indicator, when the fuse is blown or pulled out, the LED indicator will be off.
High quality fireproof nylon material mount carrier, included two M3 x 10mm wood screws, you can easily mount it on a wooden board. FR-4 fiberglass dual copper layers PCB. UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified screw mount carrier.
