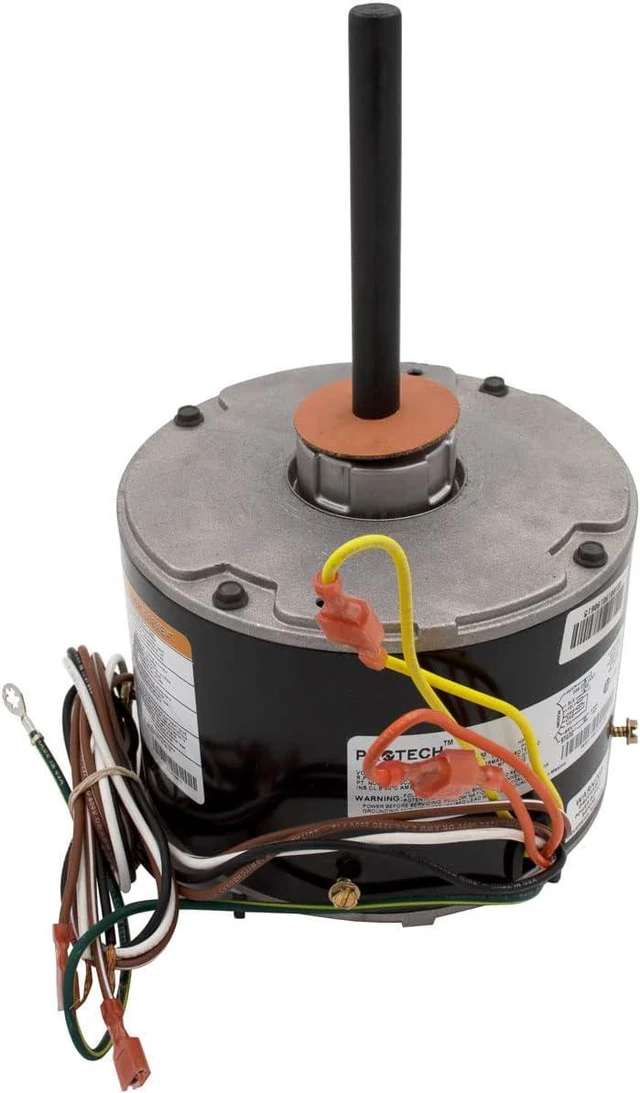

Supplying Demand W51-16CJJ1-02 HVAC Condenser Motor 1/6 HP 1 Phase 208/230V 825 RPM

Make sure to match up your H/P needed otherwise installing a lower H/P motor will cause it to overheat and not work properly.
HVAC replacement motors manufactured under strict quality standards at one of the world's largest and most modern motor production facilities. Every motor undergoes a variety of stringent tests before it leaves the assembly line.

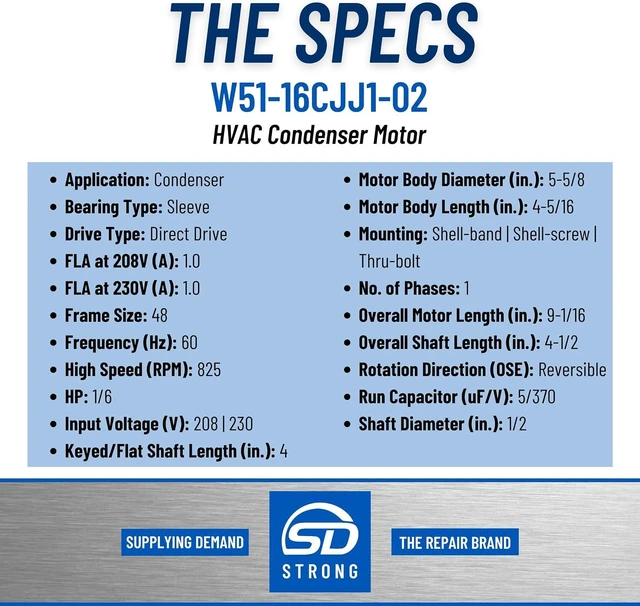

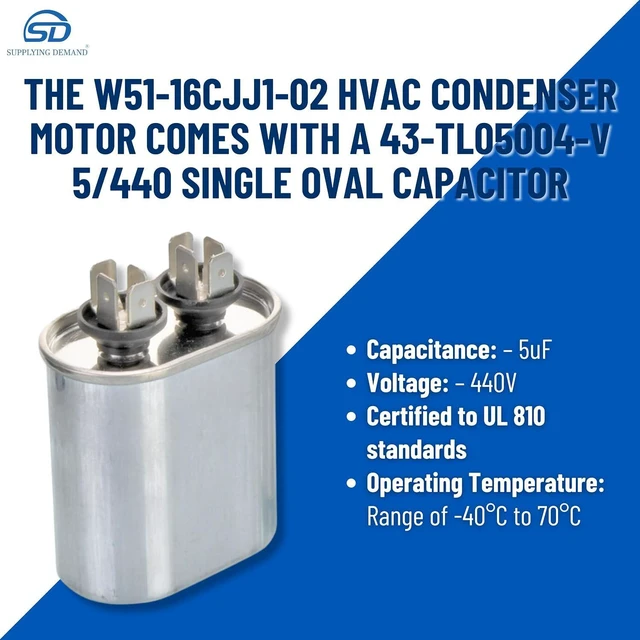

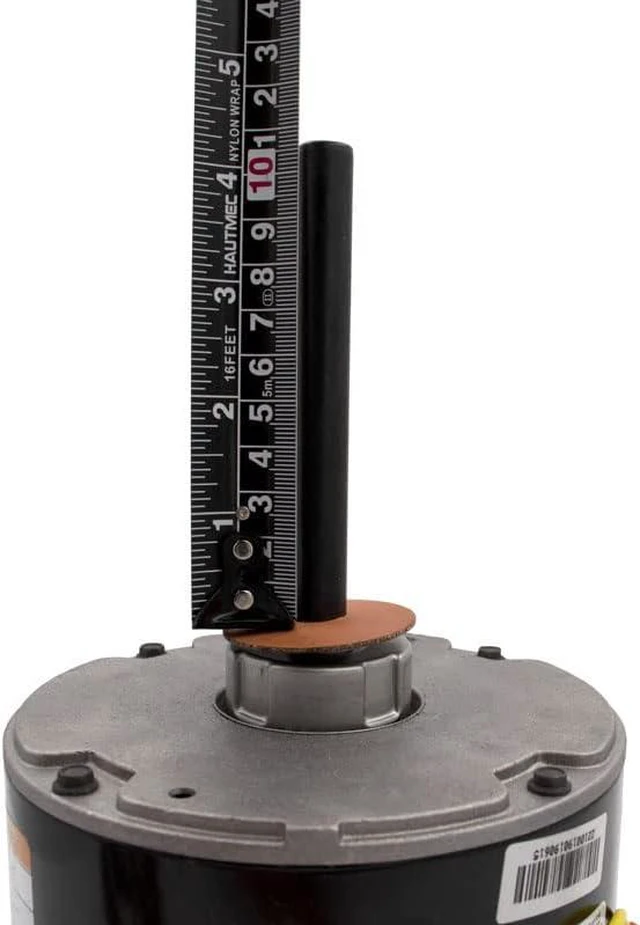

Application: Condenser | Bearing type: Sleeve | Drive type: Direct drive | FLA at 208V (A): 1.0 | FLA at 230V (A): 1.0 | Frame size: 48 | Frequency (Hz): 60 | High speed (RPM): 825 | HP: 1/6 | Input voltage (V): 208/230 | Keyed/Flat shaft length (inch): 4 | Motor body diameter (inch): 5-5/8 | Motor body length (inch): 4-5/16 | Mounting: Shell-band, shell-screw, thru-bolt | Number of phases: 1 | Overall motor length (inch): 9-1/16 | Overall shaft length (inch): 4-1/2 | Rotation direction (OSE): Reversible | Run capacitor (uF/V): 5/370 | Shaft diameter (inch): 1/2
Supplying Demand replacement parts are compatible with Major Brands, but you should always verify fitment with your specific application.
SD products come in Supplying Demand packaging.
