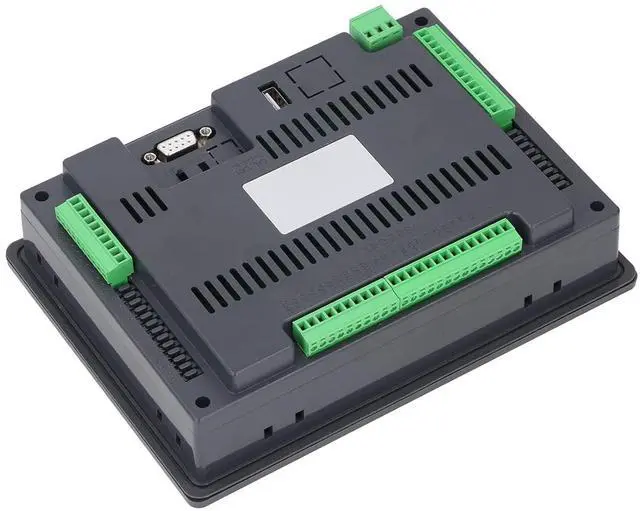

HMI PLC All in One 7in TFT LCD Display Industrial Control Board with 12 Inputs 8 Outputs for FX3U 20 40 48MRT WSB7020R HMI DC24V 5A
- [HMI PLC All in One] Equipped with 32 bit 240MHz ARM9 processor and 128M NAND FLASH memory, compatible with for FX3U 20 40 48MRT. The touch screen has low power consumption, fast running speed, and
- [7in TFT LCD Display] Featuring 800x480px resolution, 260,000 colors, and 400 cd/m2 brightness with backlit display, providing easy observation of status. The 4 wire industrial resistive touch screen ensures durability with 4H hardness.
- [Simple Installation] With a hole size of 190x135 mm and complete with screws and fixing accessories, the HMI PLC all in one machine can be directly installed without hassle.
- [HMI Programming] Use for HMI Studio 5.1 software for programming, download for HMI program using a USB male to male cable.
- [PLC Download and Programming] The download speed is 38.4Kbps, you can directly use for GX Developer or for GX Works2 for programming, downloading, debugging, and monitoring (monitoring writing is not supported).
+
+
Overview
Specs
Reviews
Spec:
Item Type: HMI PLC
Material: ABS
Model: WSB7020R

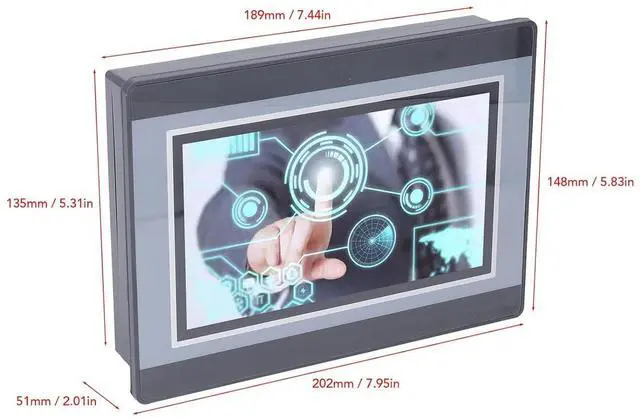

Size: Approx. 202x148x51mm / 7.95x5.83x2.01in
Opening Size: Approx. 190x135mm / 7.48x5.31in
Display Screen: 7 inch TFT LCD
Resolution: 800x480px
Color: 260,000
Download Speed: 38.4Kb
Input Points: 12
Output Points: 8
Output Type: Relay
Output Current: 5A
Load: 24V
High Speed Count: 6/3K
Pulse Output: None
Analog Input: Default 3AD 0-10V 3AD 0-20MA AD0 AD1
Analog Output: 20A 0-10V
Clock: Supported
How to Use:
Follow the instructions in the electronic manual (universal electronic manual).
Package List:
1 x HMI PLC
4 x Installation Screws
4 x Fixing Brackets
Item Type: HMI PLC
Material: ABS
Model: WSB7020R
Size: Approx. 202x148x51mm / 7.95x5.83x2.01in
Opening Size: Approx. 190x135mm / 7.48x5.31in
Display Screen: 7 inch TFT LCD
Resolution: 800x480px
Color: 260,000
Download Speed: 38.4Kb
Input Points: 12
Output Points: 8
Output Type: Relay
Output Current: 5A
Load: 24V
High Speed Count: 6/3K
Pulse Output: None
Analog Input: Default 3AD 0-10V 3AD 0-20MA AD0 AD1
Analog Output: 20A 0-10V
Clock: Supported
How to Use:
Follow the instructions in the electronic manual (universal electronic manual).
Package List:
1 x HMI PLC
4 x Installation Screws
4 x Fixing Brackets
