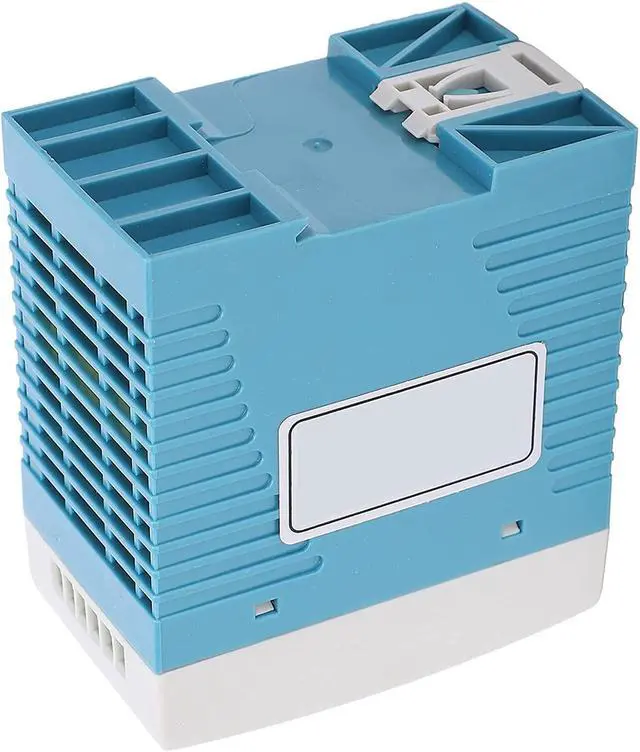

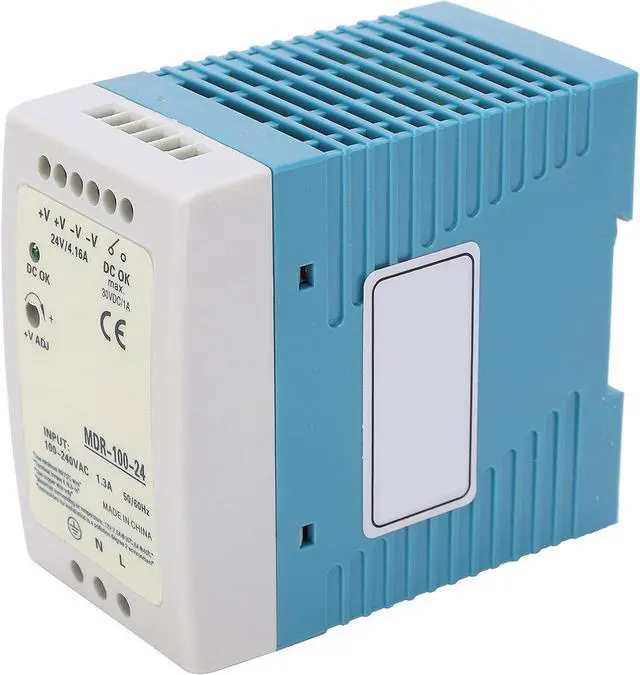

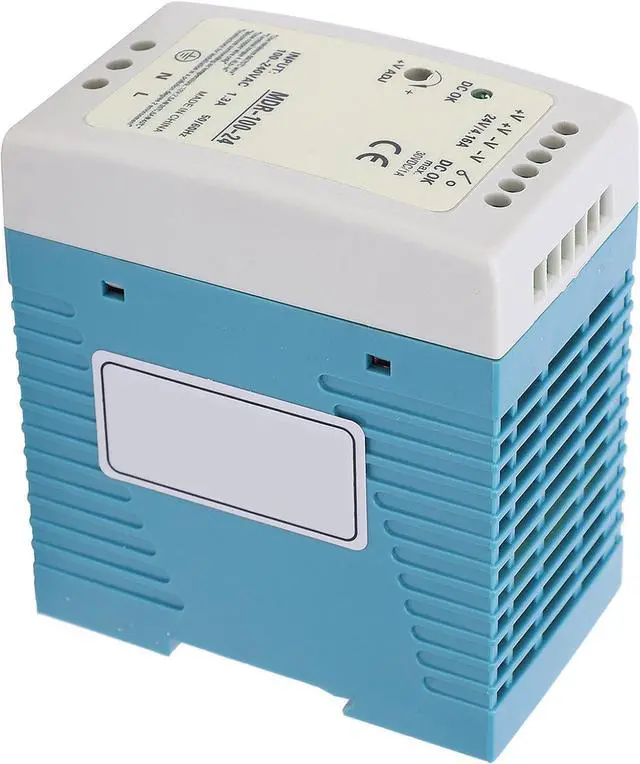

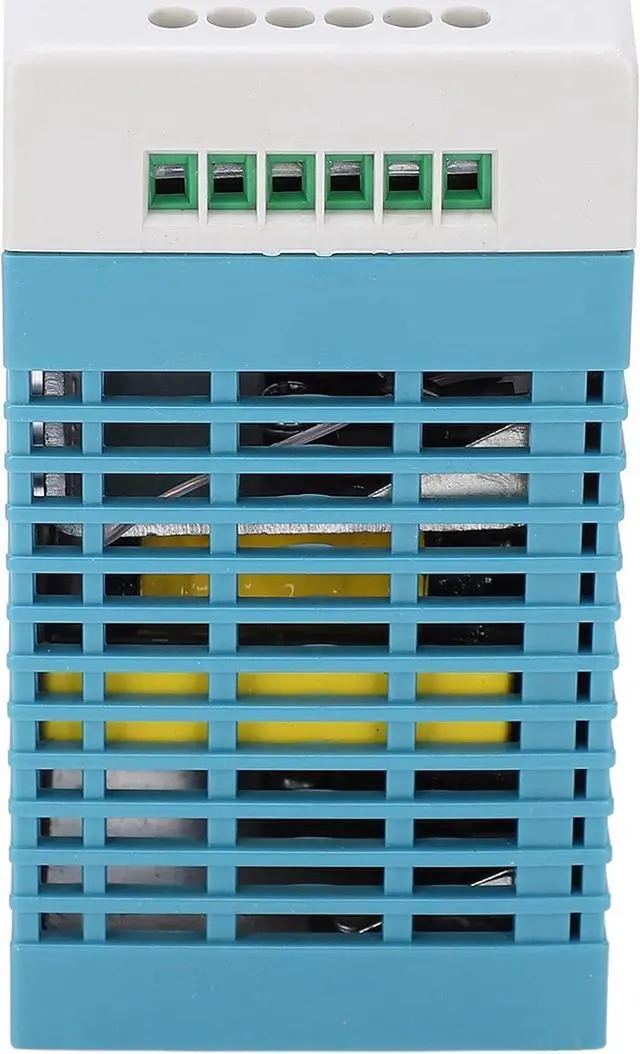

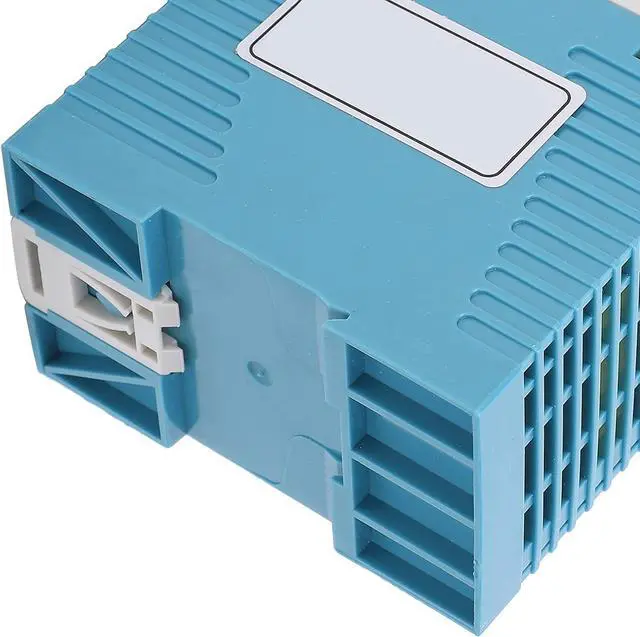

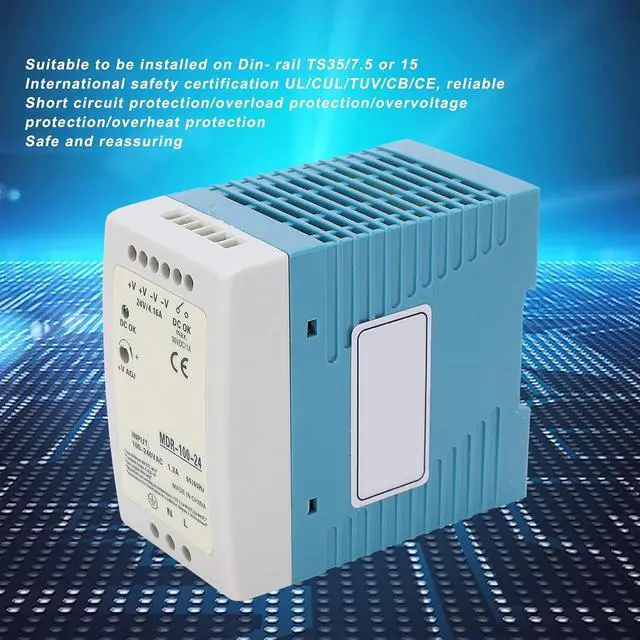

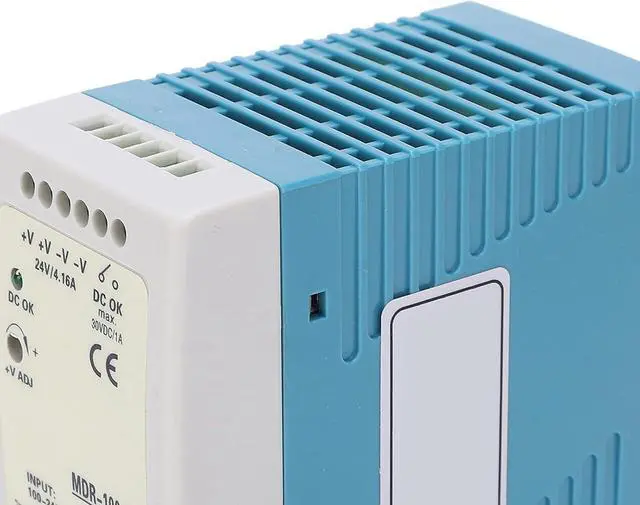

Eujgoov Berm DinRail Switching Power Supply MDR10024 Output 100W/24V/1.3A Input 100240VAC
- Easy To Use : Our switching power supply has gained international safety certification UL/CUL/TUV/CB/CE, to use.
- Good Design : Our product is a single output type with an input voltage of 100240VAC, input current of 1.3A and rated current of 4.16A.
- Multi-Function : With short circuit /overload /overvoltage /overheat , the power supply is safe for household use.
- Application : Switching power supply is suitable to be installed on Din rail TS35/7.5 or 15.
- Good Choice : Industrial grade switching power supply possesses stable structure, excellent performance and long service life.
+
+
Overview
Specs
Reviews
Specification:
Item Type: Din-Rail Switching Power Supply
Product Material: ABS
Product Model: MDR-100-24
Output Type: Single output
Input Voltage: 100-240VAC
Input Current: 1.3A
Output Voltage: 24V
Rated Current: 4.16A
The MDR model is a DIN rail mounting power supply, which is quick and labor-saving to install. It is suitable for installation on DIN rail TS35 / 7.5 or 15. It is a low no-load standby loss model, with built-in active power factor correction function, DC OK output, convenient for external working condition display, 100 watt model also has an overheating function.
Voltage Adjustment Range: 0+20% of rated output voltage
Overload : When the over current point is between 105% and 150%, the constant current limit will automatically recover
Over-Voltage : Shut down when 125%150%% of rated output voltage, restart and restore
Overheating : 90±10 (RTH2 detects the temperature of the power transistor radiator), type: overheating shutdown, automatic recovery after temperature drops
Start-up and Hold Time: 3000ms, 50ms, 50ms at 230VAC full load
Package List:
1 x Din Rail Switching Power Supply
Enjoy Life, Enjoy Yourself!
Previous page
Next page Eujgoov Hot Products Hot Products
Item Type: Din-Rail Switching Power Supply
Product Material: ABS
Product Model: MDR-100-24
Output Type: Single output
Input Voltage: 100-240VAC
Input Current: 1.3A
Output Voltage: 24V
Rated Current: 4.16A
The MDR model is a DIN rail mounting power supply, which is quick and labor-saving to install. It is suitable for installation on DIN rail TS35 / 7.5 or 15. It is a low no-load standby loss model, with built-in active power factor correction function, DC OK output, convenient for external working condition display, 100 watt model also has an overheating function.
Voltage Adjustment Range: 0+20% of rated output voltage
Overload : When the over current point is between 105% and 150%, the constant current limit will automatically recover
Over-Voltage : Shut down when 125%150%% of rated output voltage, restart and restore
Overheating : 90±10 (RTH2 detects the temperature of the power transistor radiator), type: overheating shutdown, automatic recovery after temperature drops
Start-up and Hold Time: 3000ms, 50ms, 50ms at 230VAC full load
Package List:
1 x Din Rail Switching Power Supply
