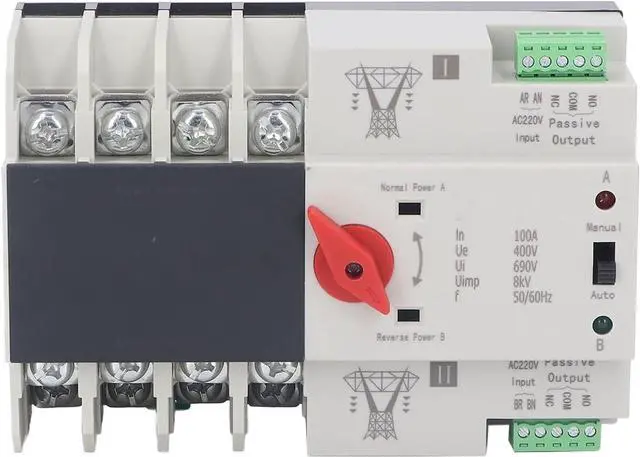

Dual Power Automatic Transfer Switch Uninterrupted 2 Way Controller ZGQ5-100/2/4P 220/400V (Color : Type C)
- Silver contacts :The use of silver contacts can greatly improve the conductivity and service life of the product
- Easy to use :Built?in regular standby opening signal output port, which can be connected with signal indicator light, which is convenient for observation outside the cabinet
- Good performance :good insulation, high temperature proof, anti?aging, safe and reliable
- Safety first :When the normal power supply is abnormal, the backup power supply will work immediately to ensure the continuity, reliability and safety of the power supply
- Suitable for :Suitable for switching to the backup power supply when the power is cut off, and switching to the main power supply when the power comes in
+
+
Overview
Specs
Reviews
Feature:
1. Silver contacts are used for movement and static, which greatly improves the conductivity and service life of the product.
2. Built-in normally standby opening output port, which can be connected to indicator.
3. Using flameretardant plastic material, good insulation, high temperature resistance, safe and reliable.
4. When the normal power supply is abnormal, the backup power supply will work immediately to ensure the continuity of the power supply.
5. Small size, easy to carry and store, convenient to use and with good performance.
Specification:
Item Type: Dual Power Automatic Transfer Switch
Working Frequency: 50-60HZ
Rated Current: 100A
Operation Mode: Automatic and manual
ATS: CB level
Conversion Time: 0.05 (S)
Model:
ZGQ5-100/2P 220V:
Purpose: Switch to the backup power supply when the power fails, and switch to the main power supply when the power comes in.
Rated Voltage: AC110-230V
Working Voltage: AC220V
Number of Poles: 2P
ZGQ5-100/4P 220V:
Purpose: Switch to the backup power supply when the power fails, and switch to the main power supply when the power comes in
Rated Voltage: AC110-230V
Working Voltage: AC220V
Number of Poles: 4P
ZGQ5-100/4P 400V:
Function: Switch to standby power supply in case of power failure, and switch to main power supply in case of power failure.
Insulation Voltage Ui: AC690V
Rated Voltage Ue: AC400V
Rated Impulse Withstand Voltage: 8kV
Rated Control Circuit Voltage Us: AC220V, 85% Us-110% Us.
Usage Category: AC-31B
Operation Mode: Automatic and manual.
Auxiliary Circuit: Two relays, each with two groups of contact capacity, used for contact converter: AC220V50HZ le=Sy.
<;50ms
Poles: 4P
How to Use:
1. Place the automatic transfer switch of the dual power supply on the debugging platform, and connect the corresponding power line in the correct phase sequence. The phase
