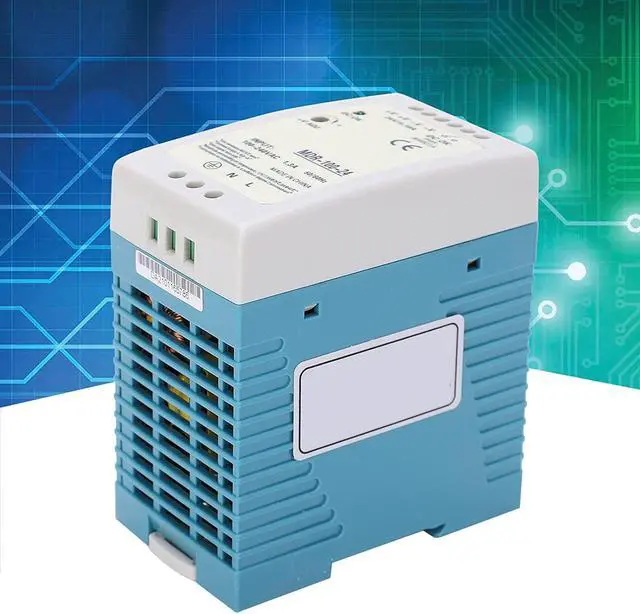

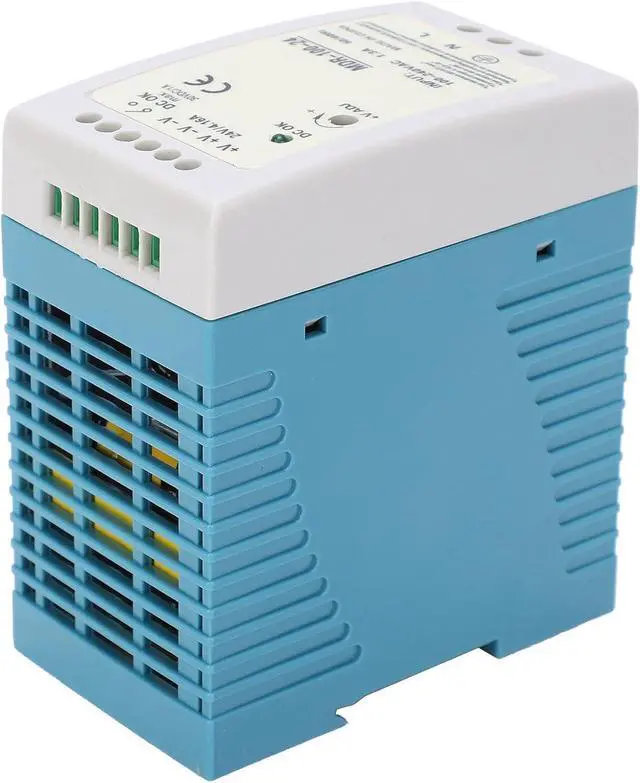

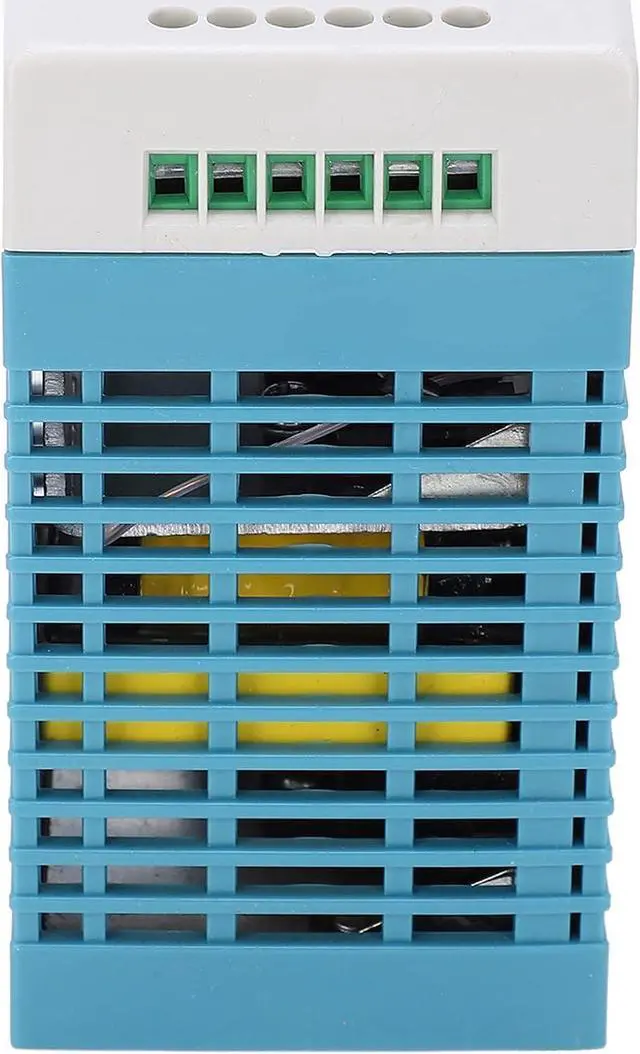

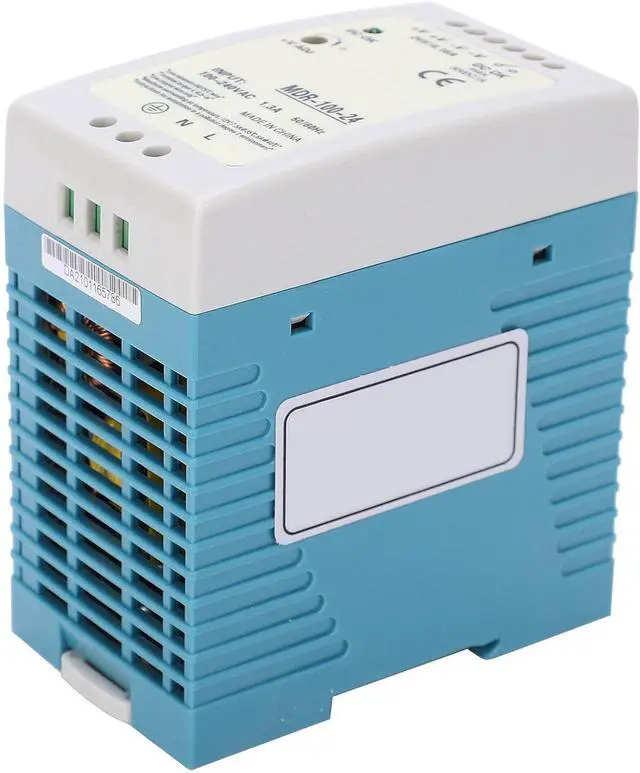

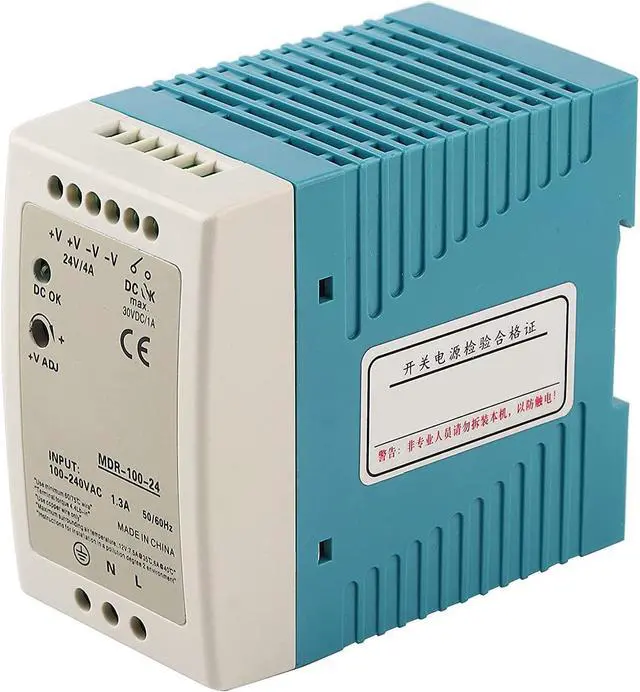

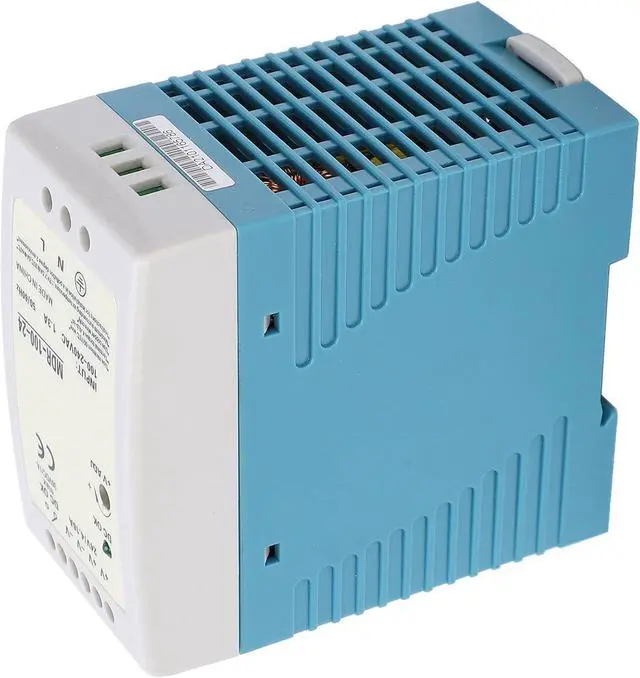

Berm DinRail Switching Power Supply MDR10024 Output 100W24V1.3A Input 100240VAC Professional Accessories

1. Our switching power supply has gained international safety certification UL/CUL/TUV/CB/CE, to use.
2. With short circuit /overload /overvoltage /overheat , the power supply is safe for household use.

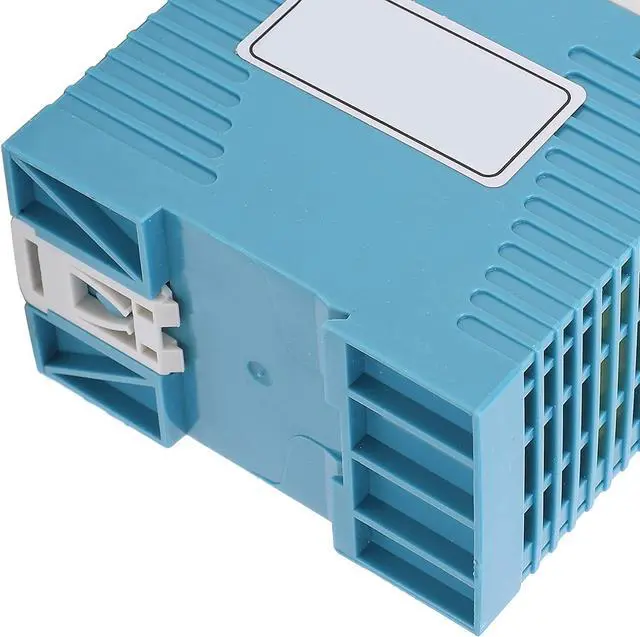

3. Switching power supply is suitable to be installed on Din rail T5/7.5 or 15.
4. Industrial grade switching power supply possesses stable structure, excellent performance and long service life.
5. Our product is a single output type with an input voltage of 100240VAC, input current of 1.3A and rated current of 4A.
Spec:
Item Type: Din-Rail Switching Power Supply
Product Material: ABS
Product Model: MDR-100-24
Output Type: Single output
Input Current: 1.3A
Rated Current: 4A
The MDR model is a DIN rail mounting power supply, which is quick and labor-saving to install. It is for installation on DIN rail T5 / 7.5 or 15. It is a low no-load standby loss model, with built-in active power factor correction function, DC OK output, convenient for external working condition display, 100 watt model also has an overheating function.
Overload : When the over current point is between 105% and 150%, the constant current limit will automatically recover
Overheating : 90±10 (RTH2 detects the temperature of the power transistor radiator), type: overheating shutdown, automatic recovery after temperature drops
Start-up and Hold Time: 3000ms, 50ms, 50ms at 230VAC full load
packing list:
1 x Din Rail Switching Power Supply
Notice:
Please note that the old and new type of the product will be sent randomly, and make sure you will not mind before ordering.
