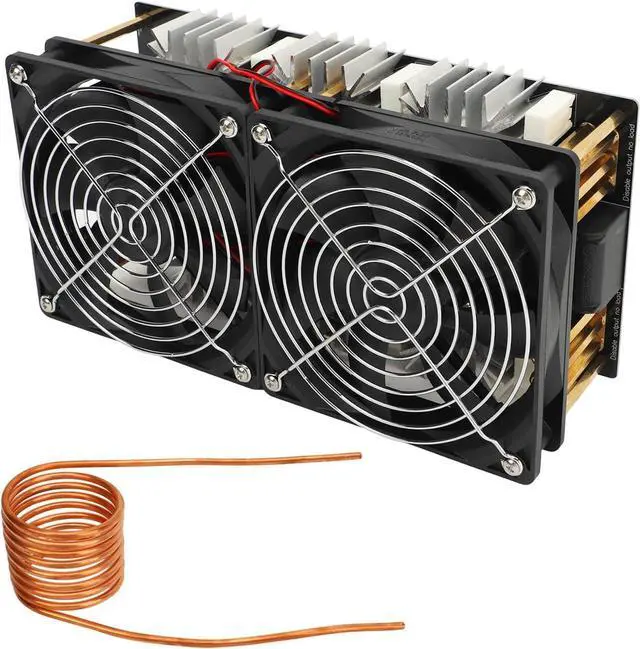

2500W Induction Heater Low Voltage Induction Heating Module 12V48V Flyback Drive Heater with Brass Ring

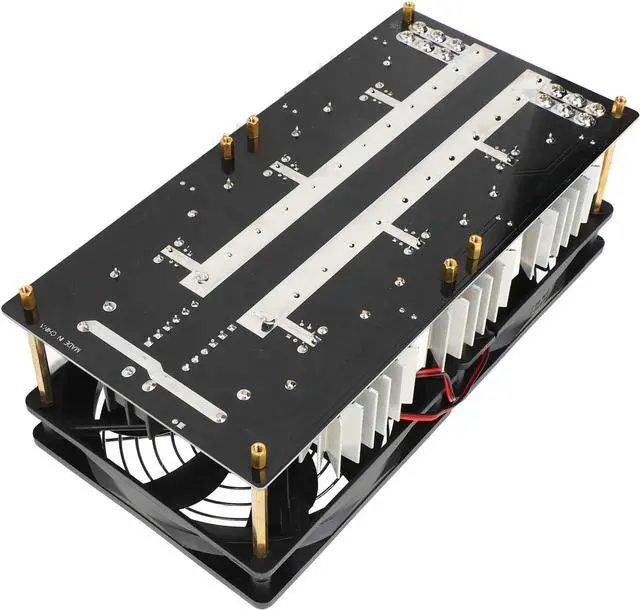

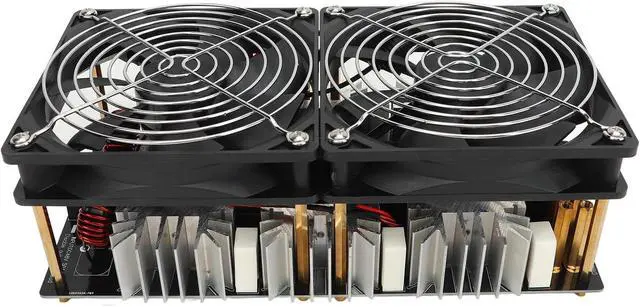

- FINE DESIGN: Induction heating board adopts a super large PCB layout design and a super large heat sink, which has good heat dissipation and high power. Comes with a cooling fan interface and can also be used for discharge, generator, high voltage inverter power supply, etc.
- POWERFUL FUNCTION: The output end uses three M4 brass columns in parallel, which can be connected to other outputs such as high voltage packages; Using 6 IRFP260 and 12 parallel resonant capacitors, the heating board has high power and efficiency.
- WORK DETAILS: This induction heating circuit uses a 1248V low voltage DC power supply, with a maximum current of 50A and a maximum power of 2500W.
- WIDELY APPLICABLE: Induction heater can work continuously under good heat dissipation conditions. Due to its moderate power, the module can be used by DIY players to perform heat treatment such as quenching and annealing on small parts. It can also be paired with a graphite crucible(without) to melt metals such as gold, si
+
+
Overview
Specs
Reviews
Specification:
Item Type: Induction Heater
Material: PCB, Brass
Input Voltage: 12V-48V, recommended above 36V
Power Requirements:
Below 12V, greater than or equal to 10A
Above 15V, greater than or equal to 20A

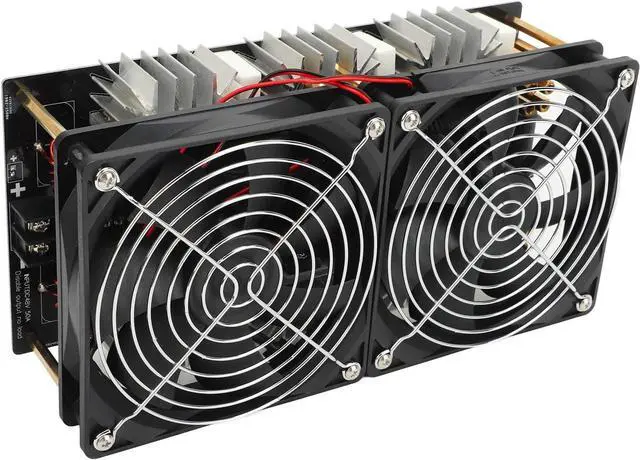

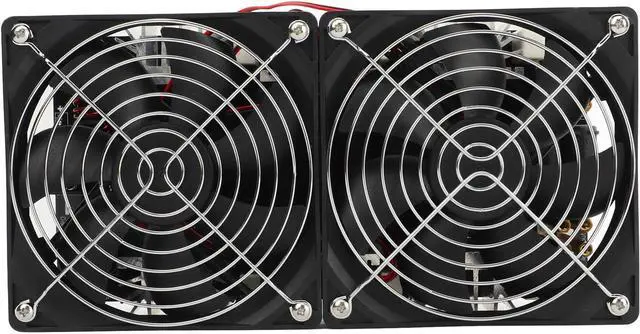

Fan: With a silent fan
Maximum Power: 2500W
Maximum Current: 50A
1. The heating power is very high, except for the boards and components being very hot, the heating capacity of brass pipes is very high. Buyers can prepare a separate water cooling system by purchasing a small water pump and a 2 meter rubber hose with an inner diameter of 4mm.
2. When using switching power supplies, attention must be paid because high power switching power supplies generally have a soft start function, and the output voltage rises slowly. If the Y voltage rises to 10V before, the circuit cannot withstand vibration due to insufficient voltage, causing two MOS transistors to conduct simultaneously and burn out components. Therefore, it is necessary to change the power supply voltage to stabilize, and then connect it to the heating circuit through induction.
3. When heating metal objects, please do
Item Type: Induction Heater
Material: PCB, Brass
Input Voltage: 12V-48V, recommended above 36V
Power Requirements:
Below 12V, greater than or equal to 10A
Above 15V, greater than or equal to 20A
Fan: With a silent fan
Maximum Power: 2500W
Maximum Current: 50A
1. The heating power is very high, except for the boards and components being very hot, the heating capacity of brass pipes is very high. Buyers can prepare a separate water cooling system by purchasing a small water pump and a 2 meter rubber hose with an inner diameter of 4mm.
2. When using switching power supplies, attention must be paid because high power switching power supplies generally have a soft start function, and the output voltage rises slowly. If the Y voltage rises to 10V before, the circuit cannot withstand vibration due to insufficient voltage, causing two MOS transistors to conduct simultaneously and burn out components. Therefore, it is necessary to change the power supply voltage to stabilize, and then connect it to the heating circuit through induction.
3. When heating metal objects, please do
