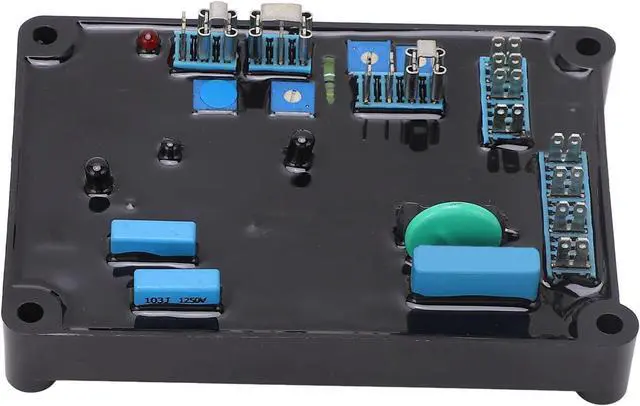

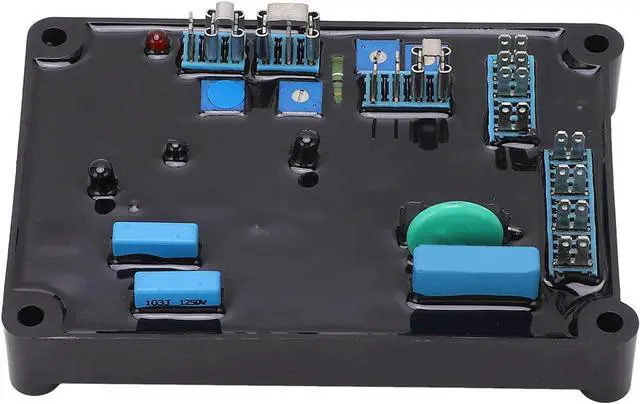

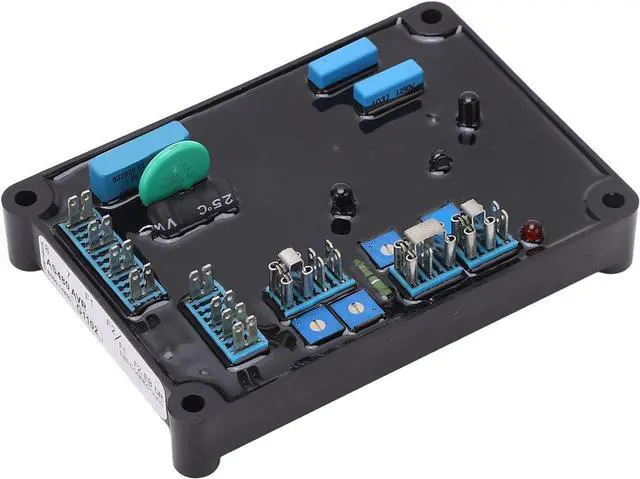

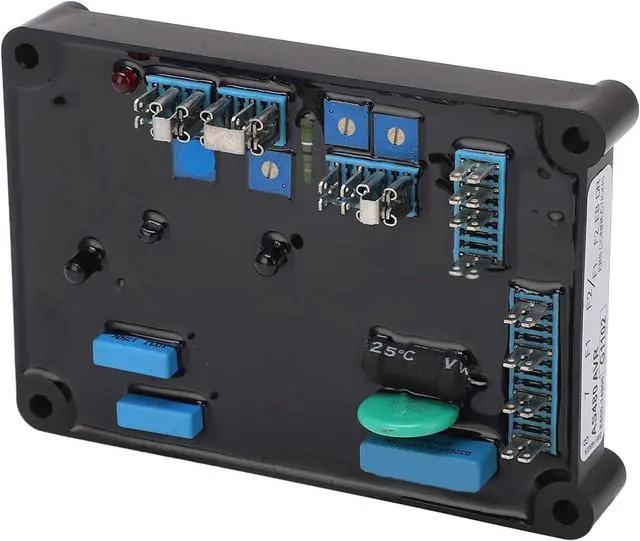

Automatic Voltage Regulator, Voltage Stabilizer AS480 AC 100-264V AVR Generator Control Regulation Board for Generator Control
- Parallel FunctionalityThis Voltage Regulator can be connected in parallel, allowing for flexibility in installation. The adjustable cross copper plate ensures compatibility with various generator .
- ExcitationThe Automatic Voltage Regulator utilizes the self-exciting PMG as its power supply, providing stable and excitation output at 50/60Hz, ensuring consistent performance during use.
- Precise Voltage ControlWith a voltage regulation rate of ±1.0%, the regulator handles 82VAC at a 200V input and 45VAC at a 110V input, making it suitable for a wide range of generator applications.
- ConstructionThe Cover of the Voltage Regulator is made from ABS material, which is lightweight yet resistant to wear and aging, ensuring a long service life and secure in various environments.
- Advanced FeaturesSupporting low-frequency inflection adjustment and single-phase voltage detection, the Automatic Voltage Regulator enhances the user experience by enabling voltage frequency slope adjustme
+
+
Overview
Specs
Reviews
1. EXCITATION PMG: The generator voltage regulator uses the exciter self PMG as the excitation power supply, 50/60Hz excitation field output, stable and reliable.
2. WORKING VOLTAGE: The voltage regulation rate of the voltage control board is ±1.0%, 82VAC at 200V input, 45VAC at 110V input, has a wide range of application.
3. PARALLEL USE: The regulator can be used in parallel, and the cross copper plate can be set to match different generator, suitable for self excited brushless generator.
4. FUNCTIONS: Support low frequency protection inflection adjustment, voltage frequency slope adjustment, DROOP parallel connection, single phase voltage detection.
5. PLASTIC Cover: The generator voltage regulator Cover is made of ABS material, light in weight, wear resistant and aging resistant, safe and reliable, has a long service life.
Spec:
Item Type: Automatic Voltage Regulator
Model: AS480
Material: ABS
Voltage: 100-264V AC
Single Phase Frequency: 50/60Hz excitation field output
Voltage: 82VAC at 200V input, 45VAC at 110V input
Current: 5A continuously, 7.5A in non continuous 10 seconds
: 15 minimum
Voltage Regulation Rate: ±1%
External Voltage Adjustment: ±10% when external voltage fine-tuning 1K/1W potentiometer
Working Temperature: -40-70
PackageList:
1 x Voltage Regulator
1 x User Manual
