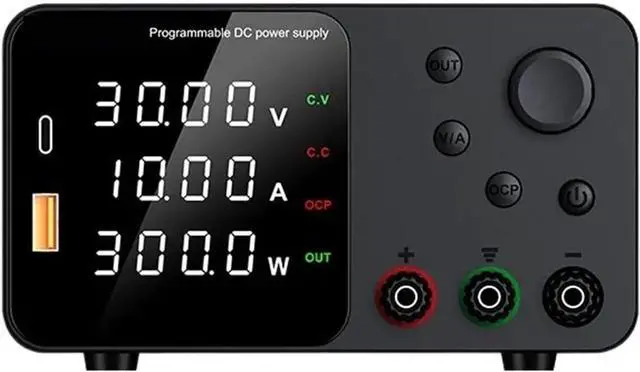

DC Lab Power Supply Adjustable Voltage Regulator Preset Voltage Current Dual Input Voltage 220V/110V(TPS3010 30V 10A)

Input voltage: AC 230V/115V±10%;
<;80%RH
<;70%RH
Voltage stabilisation CV
Voltage stability: 0.5%±3mV
Load stability: 0.5%±3mV
Ripple voltage: 0.5% Vp-p
0 to rated voltage continuously adjustable
Current stabilisation CC
Current stability: 0.5%±3mA
Load stability: 0.5%±3mA
Ripple current: 0.5% Vp-p
Recovery time: 500S
Temperature coefficient: 100ppm/°C
0 to rated current continuously adjustable
Meter display
0.4-inch white four digital tube with three displays
Display accuracy: 0.5%±5 words
Display resolution: voltage 0.01V, current 0.001A
Product Characteristics
Product size: 190mm (L) X 90mm (W) X 145mm (H)
Package size: 265(L) x 135(W) x 195(H) mm
Bare weight: 1.15Kg
Weight with packing accessories: 1.5Kg
Output Power : 201 - 300W
Output Current : 0-10A
Model Number : WPS3010H
Output Type : SINGLE
DC Lab Power Supply Adjustable Voltage Regulator Preset Voltage Current Dual Input Voltage 220V/110V(TPS3010 30V 10A)
