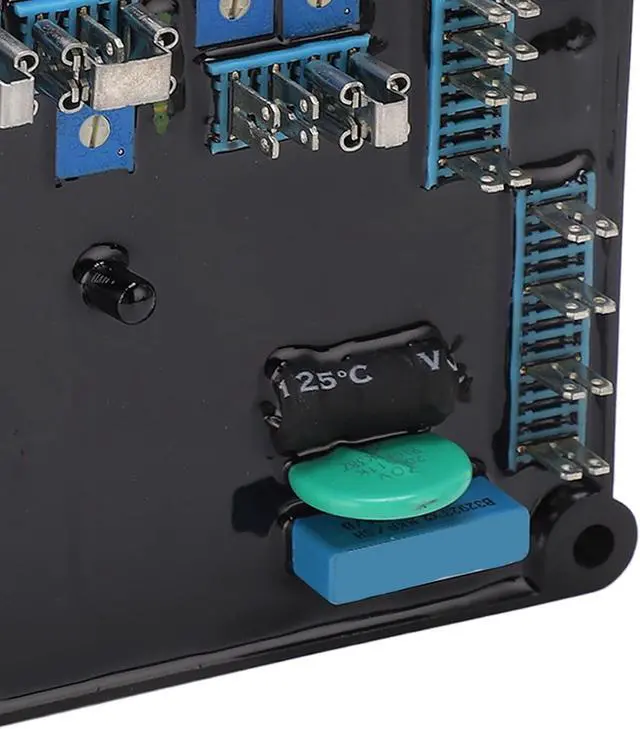

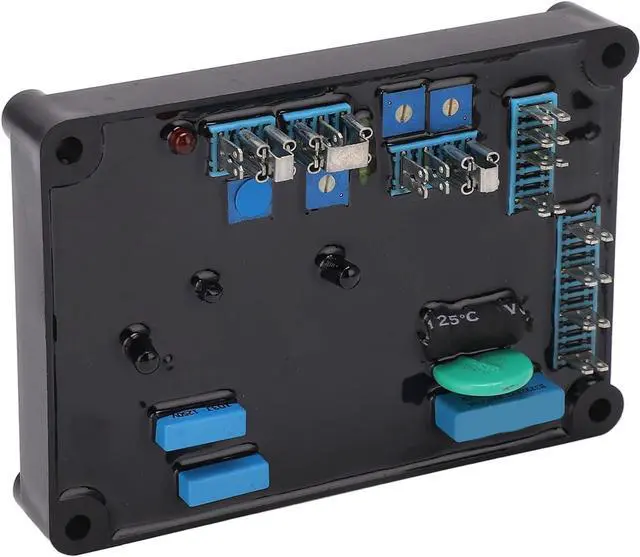

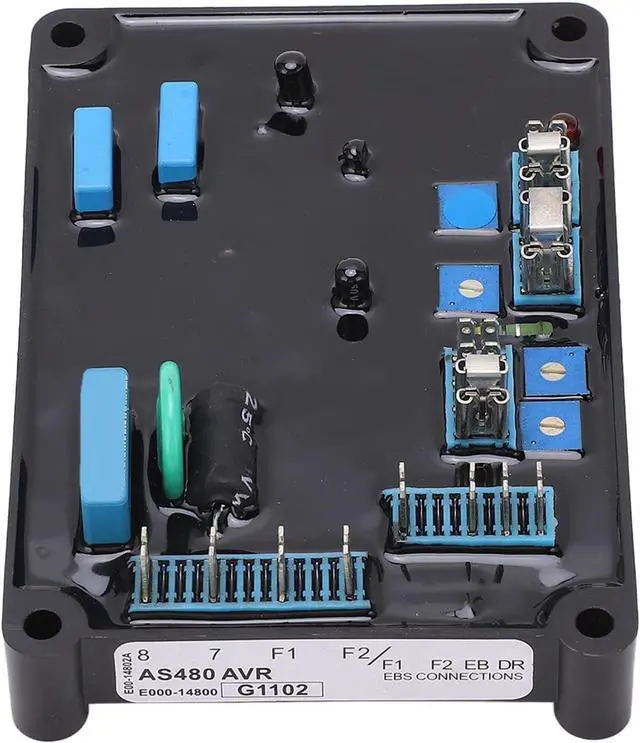

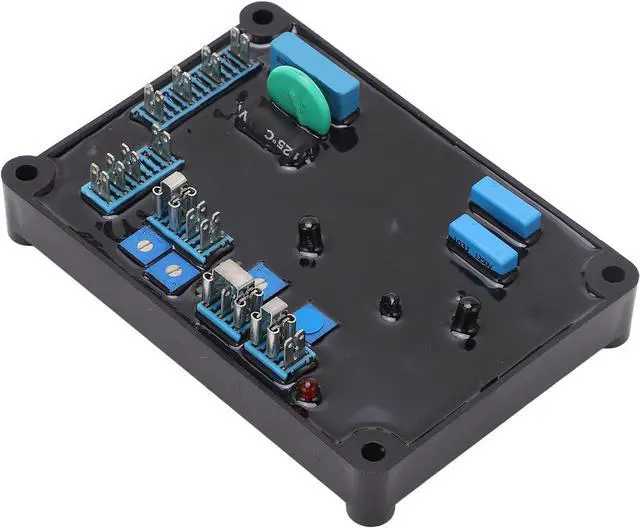

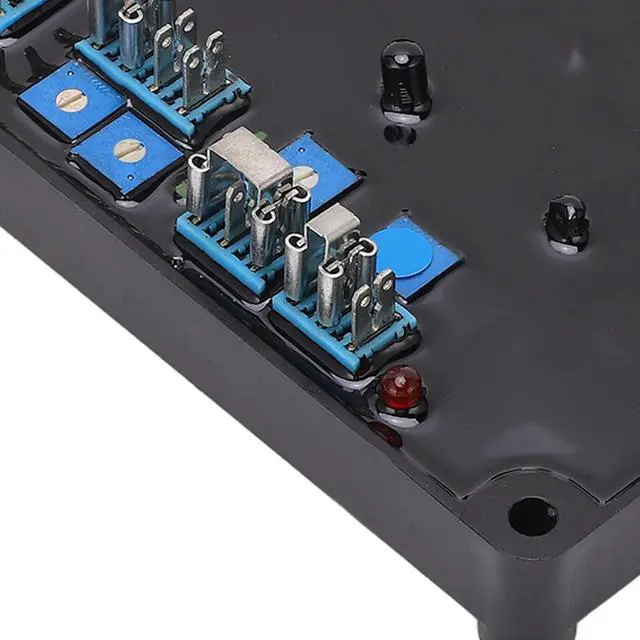

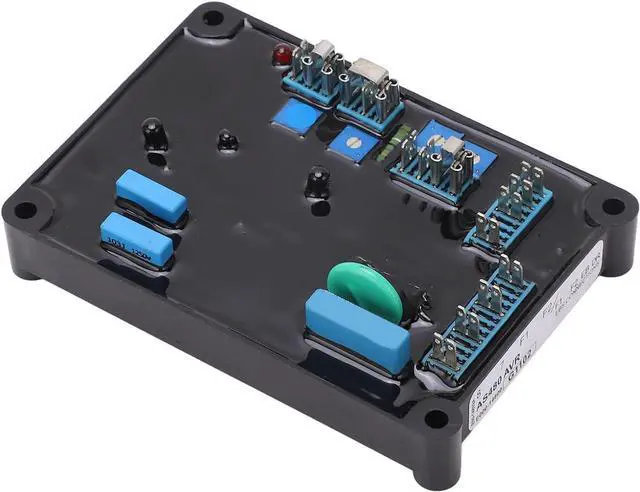

AS480 Automatic Voltage Regulator AVR Generator Voltage Control Platform

1. Pourage PMG: The generator's voltage regulator uses the pathogen itself PMG as a supply of pathogens, 50/60 Hz pathogue output, stable and reliable.
2. Work voltage: The voltage control rate of the voltage control board is ± 1.0 %, 82 VAC at 200 V input, 45 VAC at 110 V input, has a wide range of application.
3. Use of the parallel: The controller can be used in parallel and the cross -copper plate can be set so that it fits different generators, suitable for self -controlled brushless generators.
4. Functions: Supports the adaptation of the low-frequency protection conversion function, the adaptation of the voltage frequency steepness, the droop parallel circuit and the detection of a single-phase voltage.

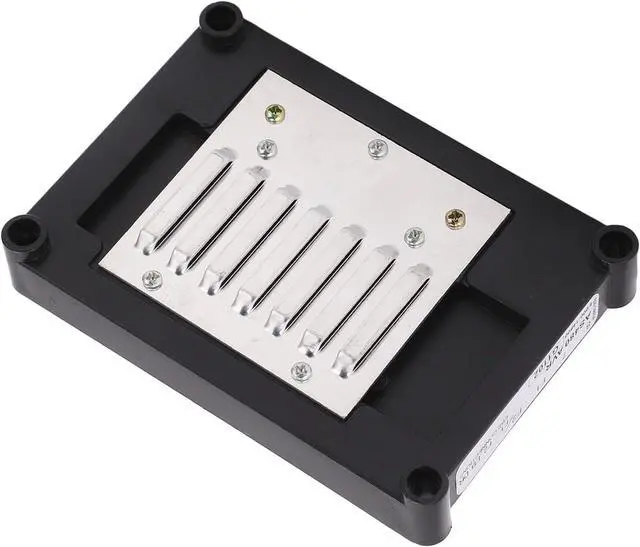

5. Plastic housing: The housing of the generator's voltage controller consists of ABS material, is light, wear-resistant and aging-resistant, safe and reliable and has a long service life.

Technical dataification:
Article type: automatic voltage controller
Model: AS480
Material: ABS
Tension: 100-264 V AC
Subsetting frequency: 50/60 Hz pathogen field output
Tension: 82 VAC at 200 V input, 45 VAC at 110 V input
Electricity: 5 a continuously, 7.5 A in non -continuous 10 seconds
: at least 15
Voltage regulation rate: ± 1 %
External voltage adjustment: ± 10 %if the external voltage is in order -Tuning 1K/1W potentiometer
Working temperature: -40-70

List of packages:
1 x voltage controller
1 x user manual
