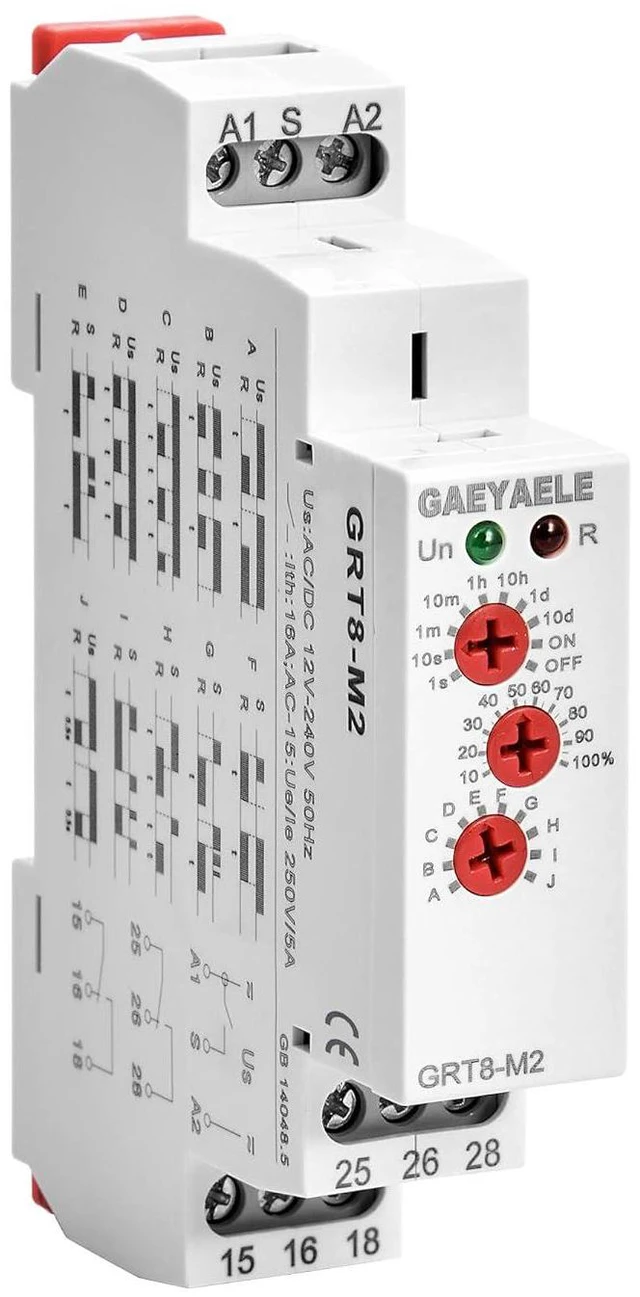

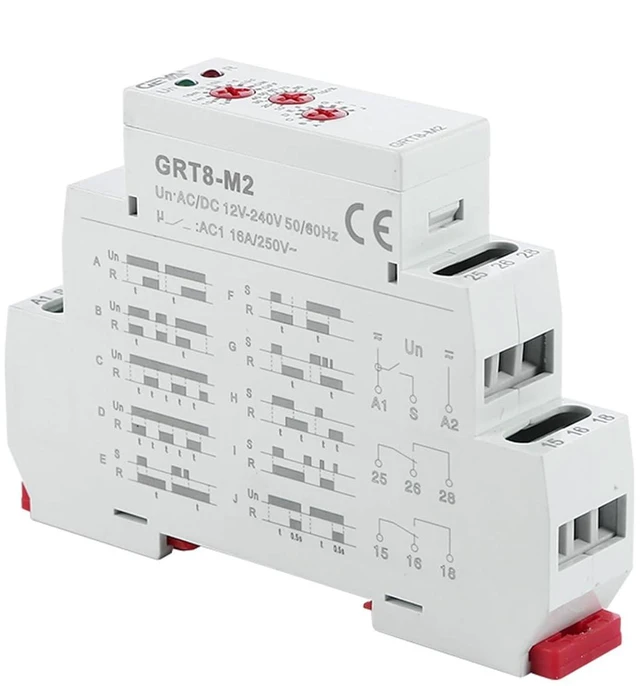

16A Multifunction Time Relay with 10 Function Choices AC/DC12V-240V Relay(GRT8-M2,AC/DC12V~240V)

Be the first to review this product...

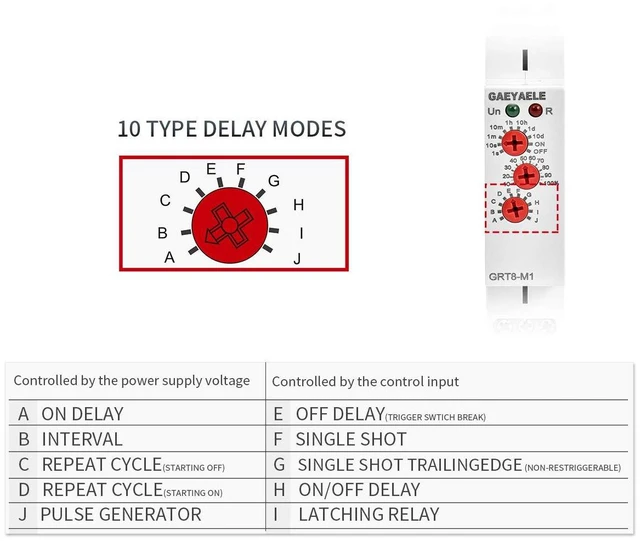

Special 10 Functions:5 time functions are controlled by the power supply voltage,4 time functions are controlled by the control input,and 1 function of latching relay.

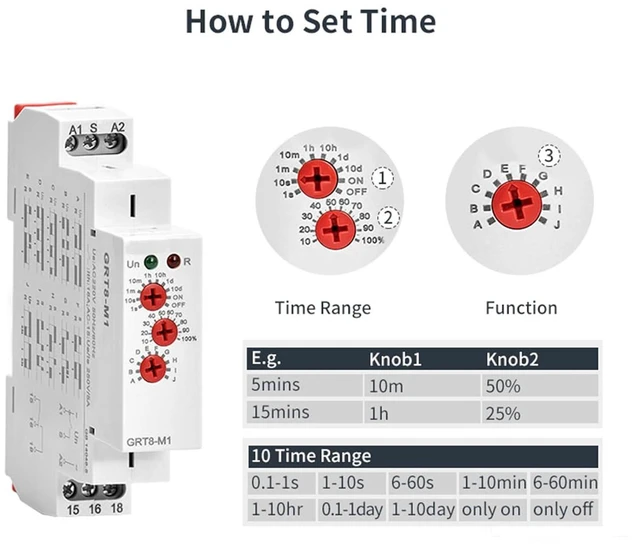

Instructions:Comfortable and well-arranged function and time-range setting by rotary switches.
Time scale 0.1s-10days divided into 10 ranges,setting by Potentionmeter.(0.1-1s,1-10s,6-60s,1-10min,6-60min,1-10hr,0.1-1day,1-10day,only on,only off)
Relay status is indicated by the LED.Output:16A 1SPDT (GRT8-M1) or 2SPDT (GRT8-M2)
Product Size:Ultra-small size,only 18mm width,35mm rail mounting.

Overview

Specs

Reviews

Special 10 Functions:5 time functions are controlled by the power supply voltage,4 time functions are controlled by the control input,and 1 function of latching relay.
Instructions:Comfortable and well-arranged function and time-range setting by rotary switches.
Time scale 0.1s-10days divided into 10 ranges,setting by Potentionmeter.(0.1-1s,1-10s,6-60s,1-10min,6-60min,1-10hr,0.1-1day,1-10day,only on,only off)
Relay status is indicated by the LED.Output:16A 1SPDT (GRT8-M1) or 2SPDT (GRT8-M2)
Product Size:Ultra-small size,only 18mm width,35mm rail mounting.
