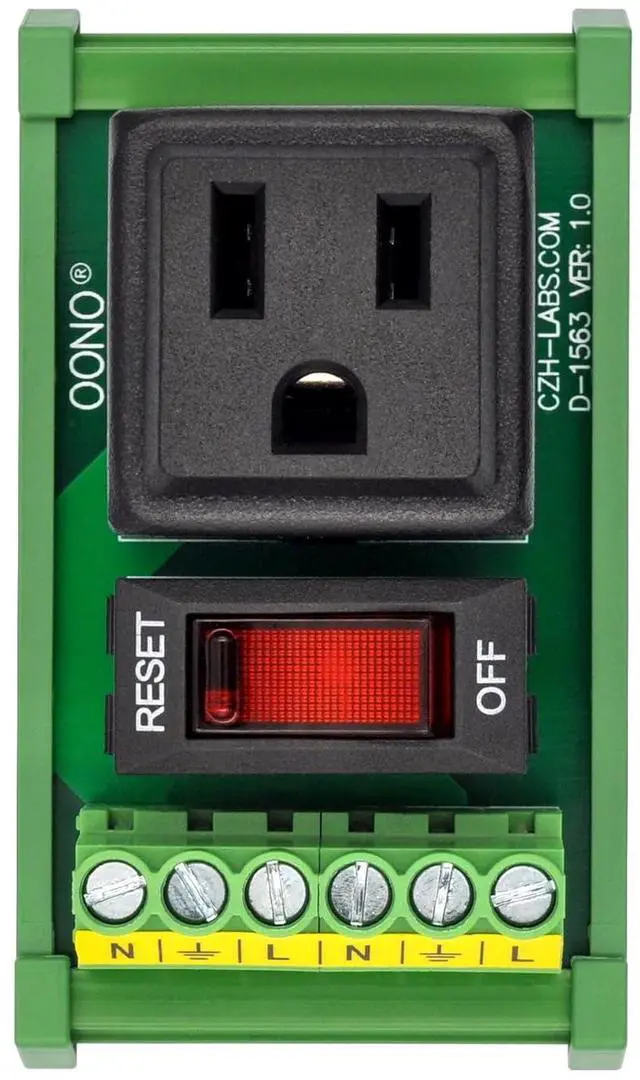

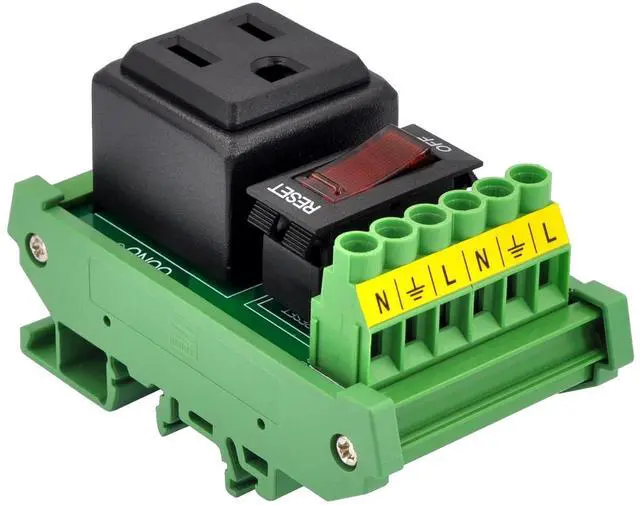

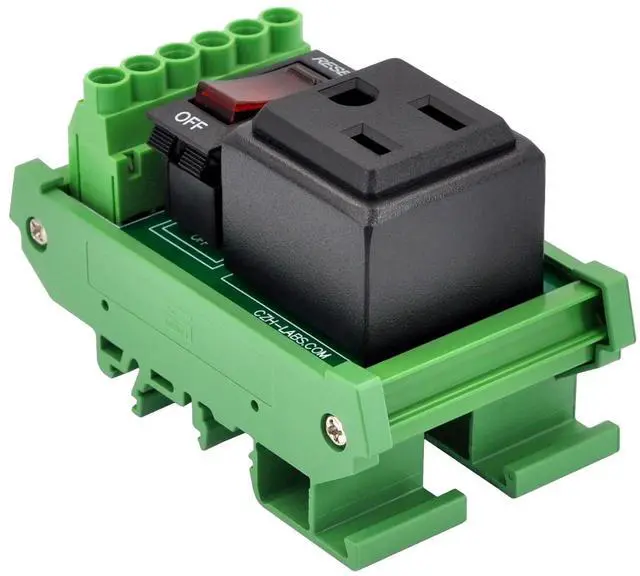

DIN Rail Mount AC 120V NEMA 5-15R Receptacle Outlet Power Module, with Rocker Switch Thermal Circuit Breaker Overload Protector
- Outlet: single 3-prong grounded NEMA 5-15R AC receptacle. Reinforced AC receptacle to ensure stability.
- Working voltage AC 120V. Receptacle rated current 10 Amps(limited by overload protector rated current).

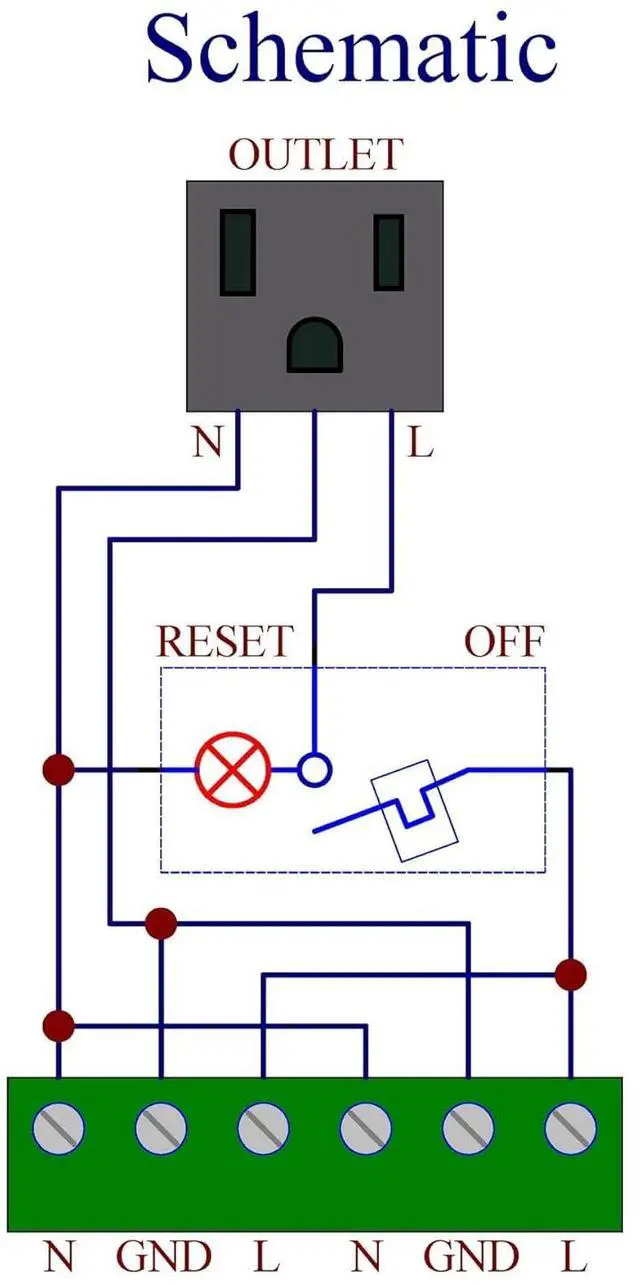

- Resettable rocker switch thermal circuit breaker overload protector current 10 Amps, built-in red indicator, support manually control output ON / OFF.

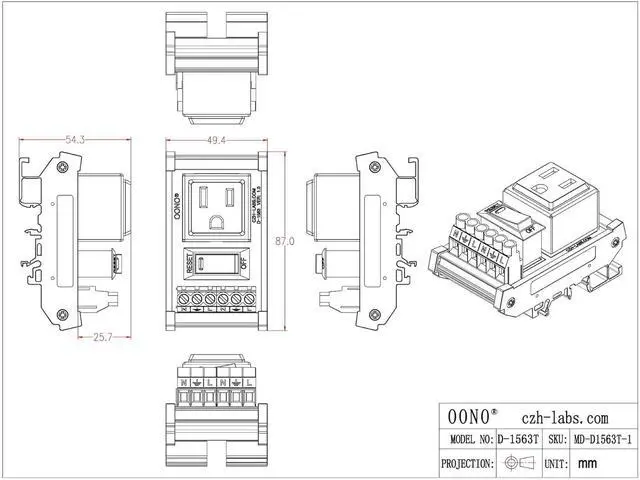

- Input terminals pitch 6.35mm/0.25", maximum current 20 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.

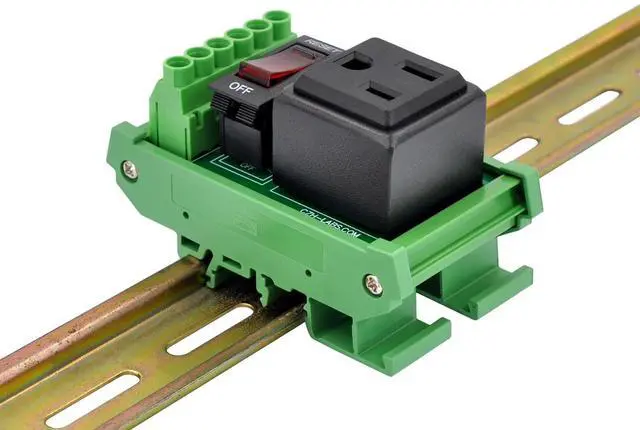

- DIN rail mount carrier can support width 35mm 32mm 15mm rail. High quality fireproof nylon material.
- UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker.
+
+
Overview
Specs
Reviews
Outlet: single 3-prong grounded NEMA 5-15R AC receptacle. Reinforced AC receptacle to ensure stability.
Working voltage AC 120V. Receptacle rated current 10 Amps(limited by overload protector rated current).
Resettable rocker switch thermal circuit breaker overload protector current 10 Amps, built-in red indicator, support manually control output ON / OFF.
Input terminals pitch 6.35mm/0.25", maximum current 20 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
DIN rail mount carrier can support width 35mm 32mm 15mm rail. High quality fireproof nylon material.
UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker.
Working voltage AC 120V. Receptacle rated current 10 Amps(limited by overload protector rated current).
Resettable rocker switch thermal circuit breaker overload protector current 10 Amps, built-in red indicator, support manually control output ON / OFF.
Input terminals pitch 6.35mm/0.25", maximum current 20 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
DIN rail mount carrier can support width 35mm 32mm 15mm rail. High quality fireproof nylon material.
UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker.
