DIN Rail Switching Power Supply 24V 10A NDR24024 for Industrial Automation with Stable Output and Enhanced Safety Protections

Features:
High-Performance Power Supply The NDR-240-24 delivers a stable 24V DC output with 10A current and 240W power, suitable for various industrial and commercial applications.
Wide Input Voltage Range Supports AC input from 100V to 240V, making it adaptable to different power sources worldwide.

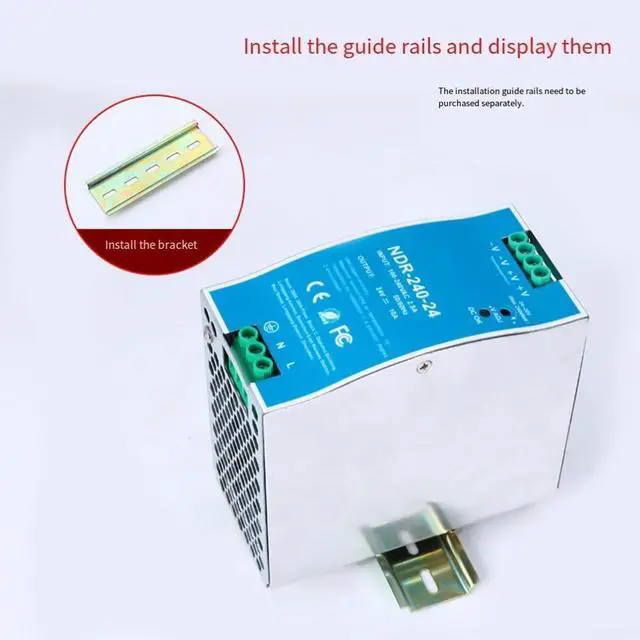

Compact & Easy Installation Features a space-saving design (63×125.2×113.5mm) with DIN rail mounting and rear mounting holes for quick and secure setup.

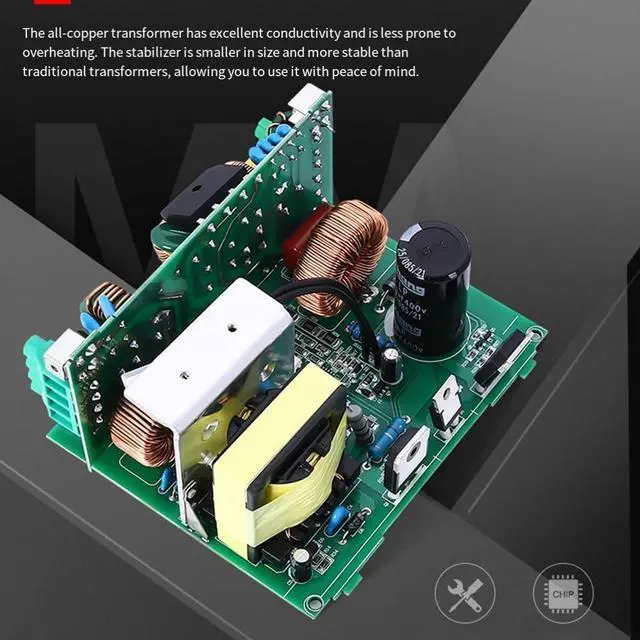

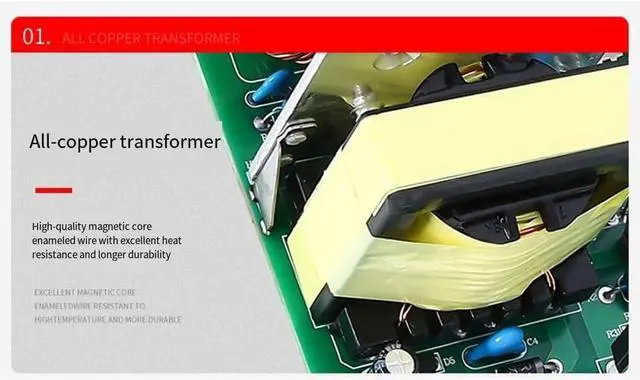

Enhanced Safety & Durability Equipped with multiple protections including over-current, over-voltage, overload, and short-circuit for protection, along with efficient copper and superior heat dissipation for long-lasting performance.
Reliable & Efficient Cooling Optimized ventilation design ensures fast heat dissipation, reducing overheating risks and guarantee stable operation in demanding environments.

Specifications:
Part Name: DIN Rail Power Supply

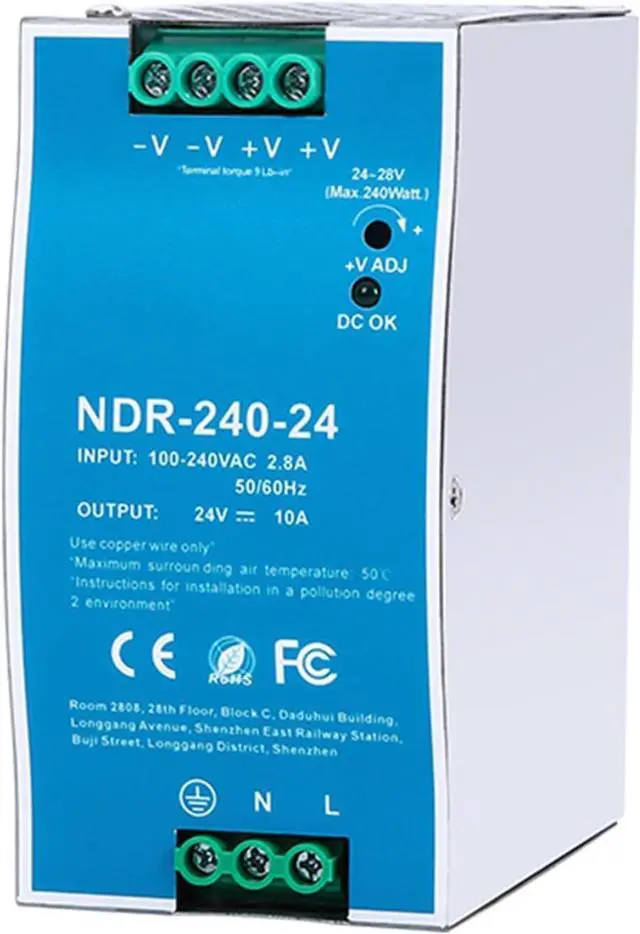

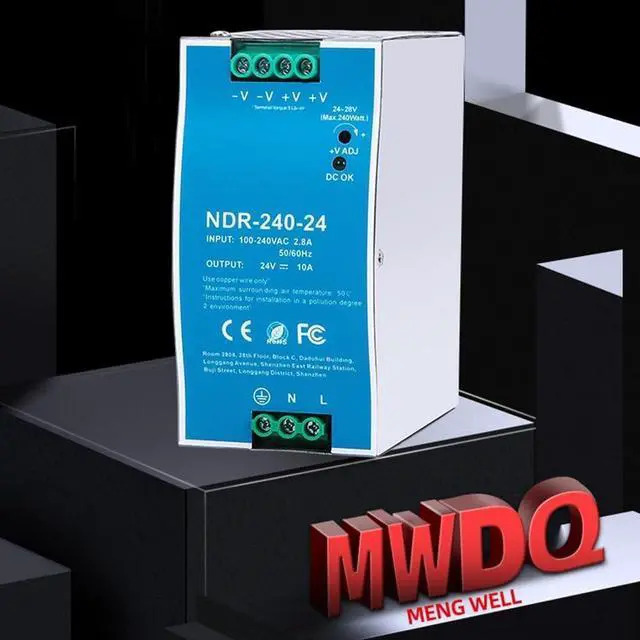

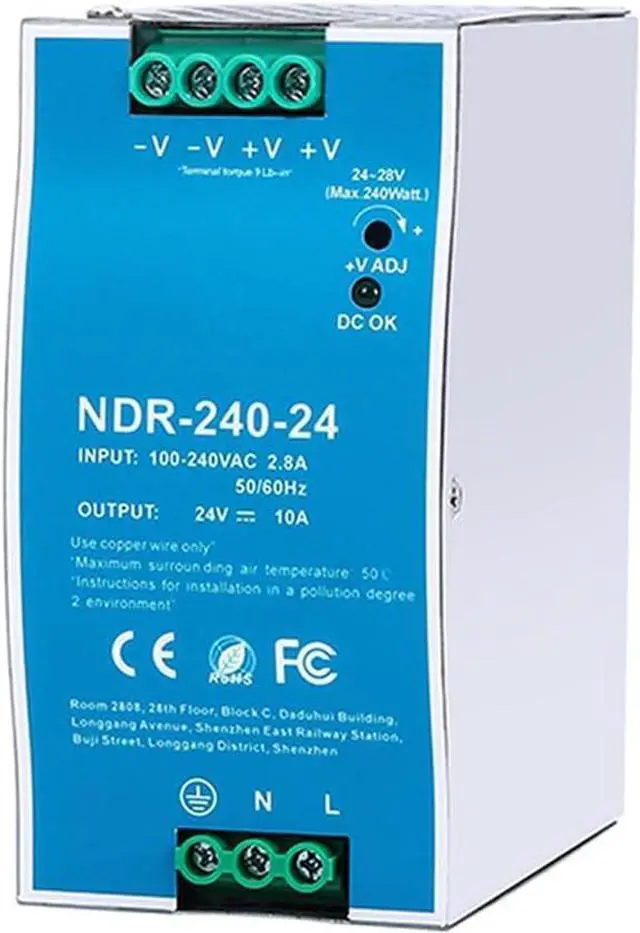

Model: NDR-240-24
Color: Blue
Material: Aluminum and plastic
Input
Voltage range: 100-240VAC 2.4A
Frequency range: 50/60Hz
Output
DC voltage: DC 24 V
Rated current: 10 A
Current range: 0-5A/0-10A
Rated power: 240 W
Residual ripple and noise: 150MVP-P
Voltage control range: DC24-28V
Voltage accuracy: ± 1.0%
Linear adjustment: ± 0.5%
Load adjustment rate: ± 1.0%
Power factor: PF>0.98/115VAC, PF>0.95/230VAC (full load)
Efficiency (typical): 88.2%.
Leakage current: <1.5 mA/ 240V AC
Output mode: 2 output groups
for protection mode: overload, overvoltage, short circuit for protection
Working temperature: -20-65

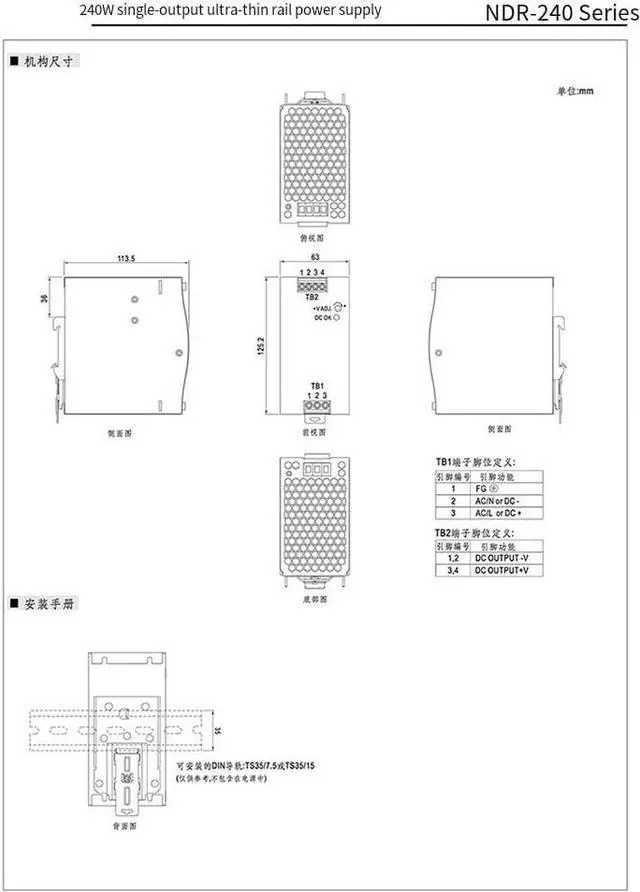

Product size: 63*125.2*113.5mm

Package Contents:
1*DIN Rail Power Supply
