IRM-60-12 60W PCB Assemble Encapsulated Power Module 110V/220V AC to 12V 5A Module Type Power Supply

Power Supplies
IRM-60-12 60W PCB assemble Encapsulated Power Module 110V/220V AC to 12V 5A Module type Power Supply

Features
Universal input 85~305VAC
PCB assemble Encapsulated version
3.43''x2.05'' Compact size
<;0.15W
EMI calss B without additional components
Wide operating temp. rage -30~70°C
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Isolation class II
Over voltage category III
Pass LPS(Except for 5V)
Description

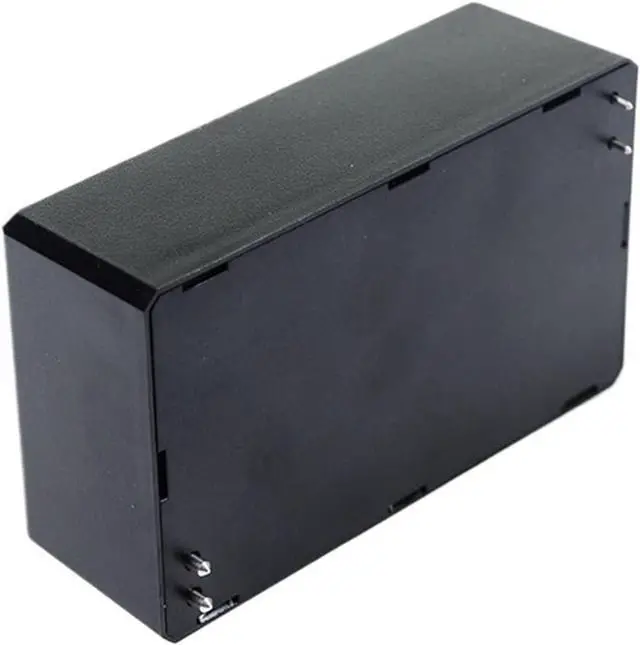

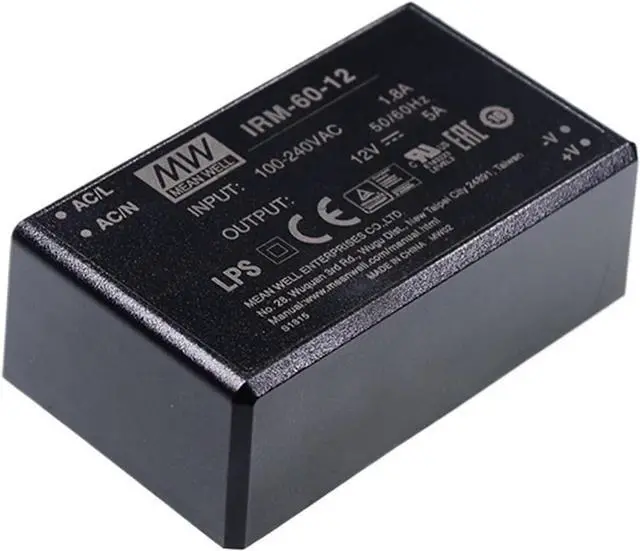

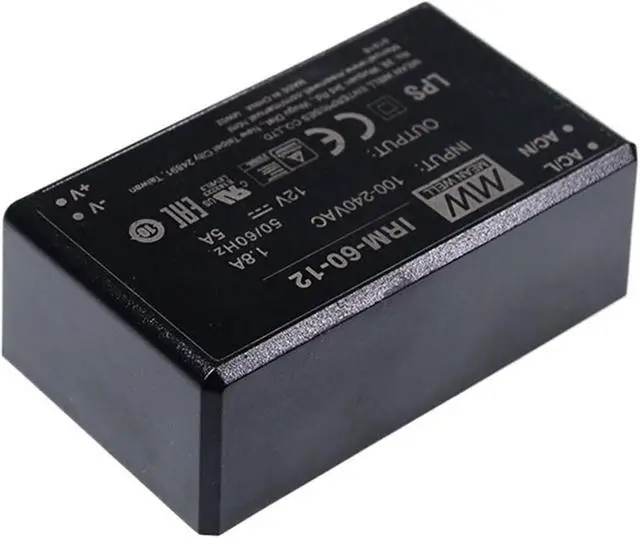

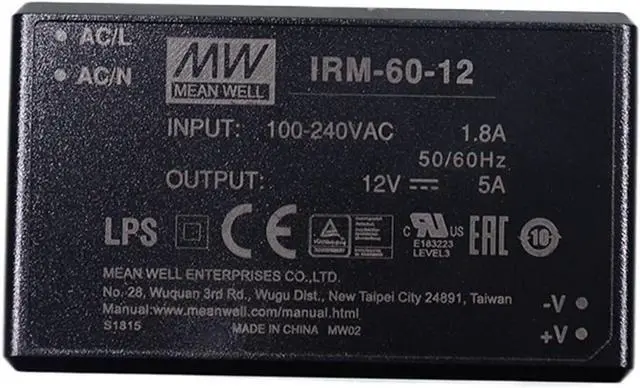

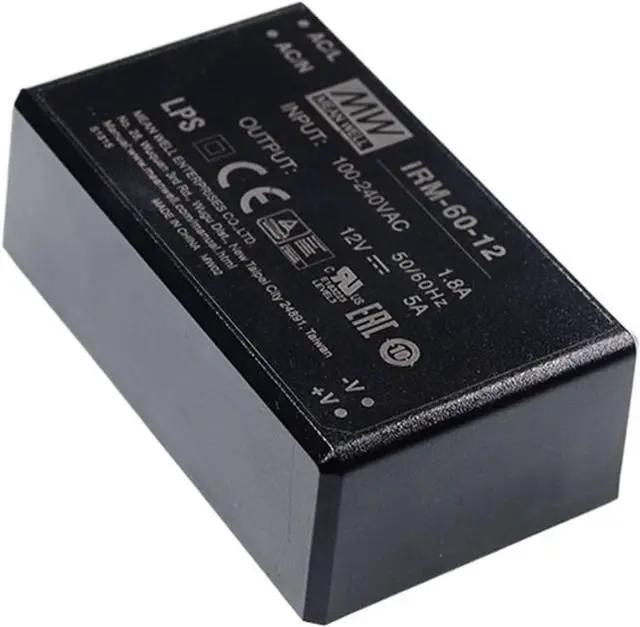

IRM-60 is a 60W miniature (87*52*29.5mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 85~305VAC. The 94V-0 flame retardant plastic case and thefully-potted silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture.
With the high efficiency up to 91% and the extremely low no-load power consumption below 0.1W, IRM-60 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a ClassII design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference. In addition to the PCB mounting style model, IRM-60 series also offers thescrew terminal style model (ST).
